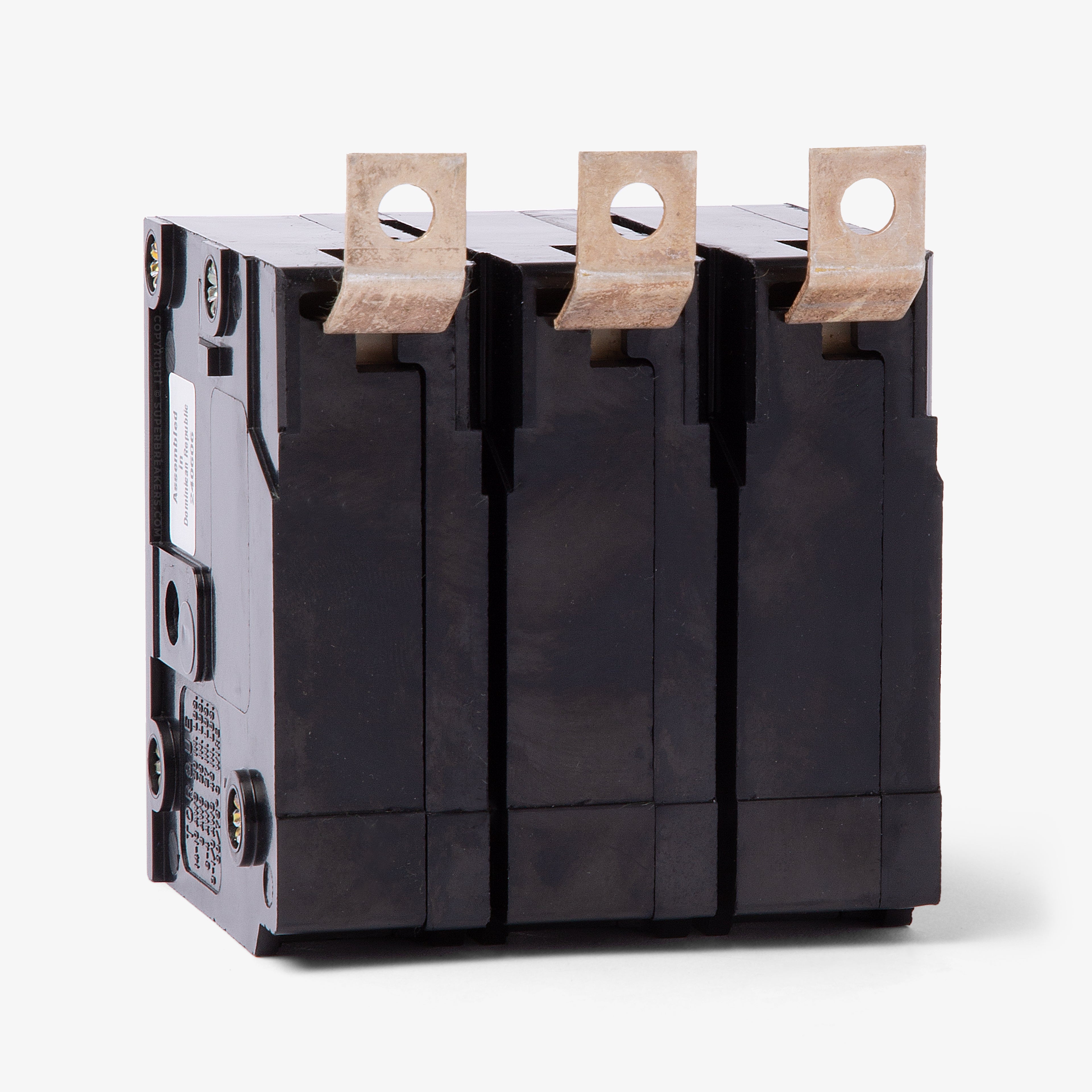

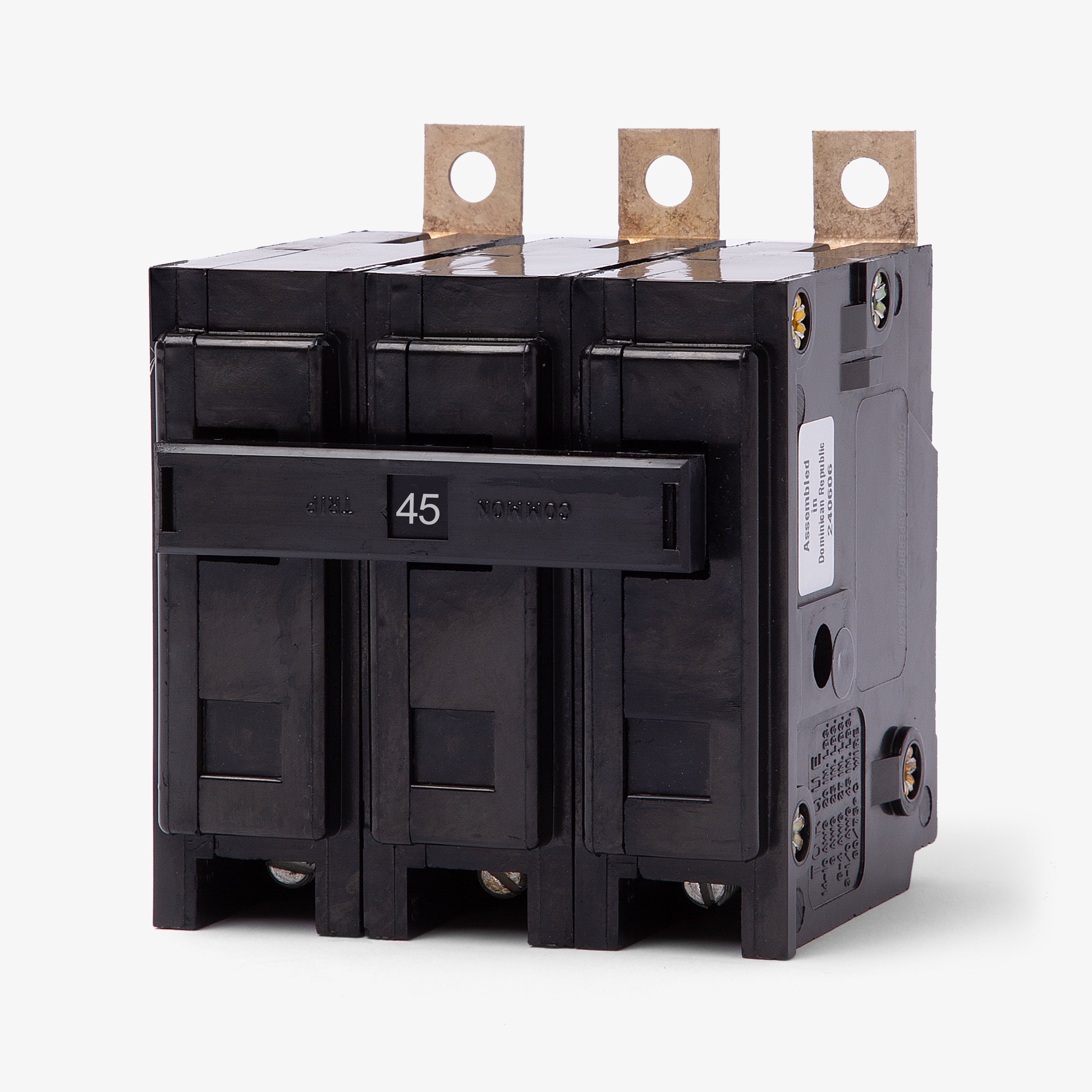

Eaton / Cutler-Hammer QBHW3045H Miniature Circuit Breaker
- 45A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
QBHW3045H
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QBHW3045H
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QBHW3045H - 45A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerQBHW3040H
40A 3 Pole Miniature Circuit Breaker
Eaton / Cutler-HammerQBHW3035H
35A 3 Pole Miniature Circuit Breaker
Eaton / Cutler-HammerQBHW3060H
60A 3 Pole Miniature Circuit Breaker
Description
Built for commercial and industrial applications, this 45A miniature circuit breaker provides reliable overcurrent protection. It utilizes a bolt-on mounting configuration for secure installation into Eaton Pow-R-Line panelboards and serves as a drop-in replacement for the legacy QBH3045 model. Featuring a 22kAIC rating at 240VAC, this Quicklag series breaker includes a fixed thermal-magnetic trip unit and carries an HACR rating for air conditioning equipment.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QBHW3045H |
| Series | QBHW |
| Amperage | 45A |
| Poles | 3 |

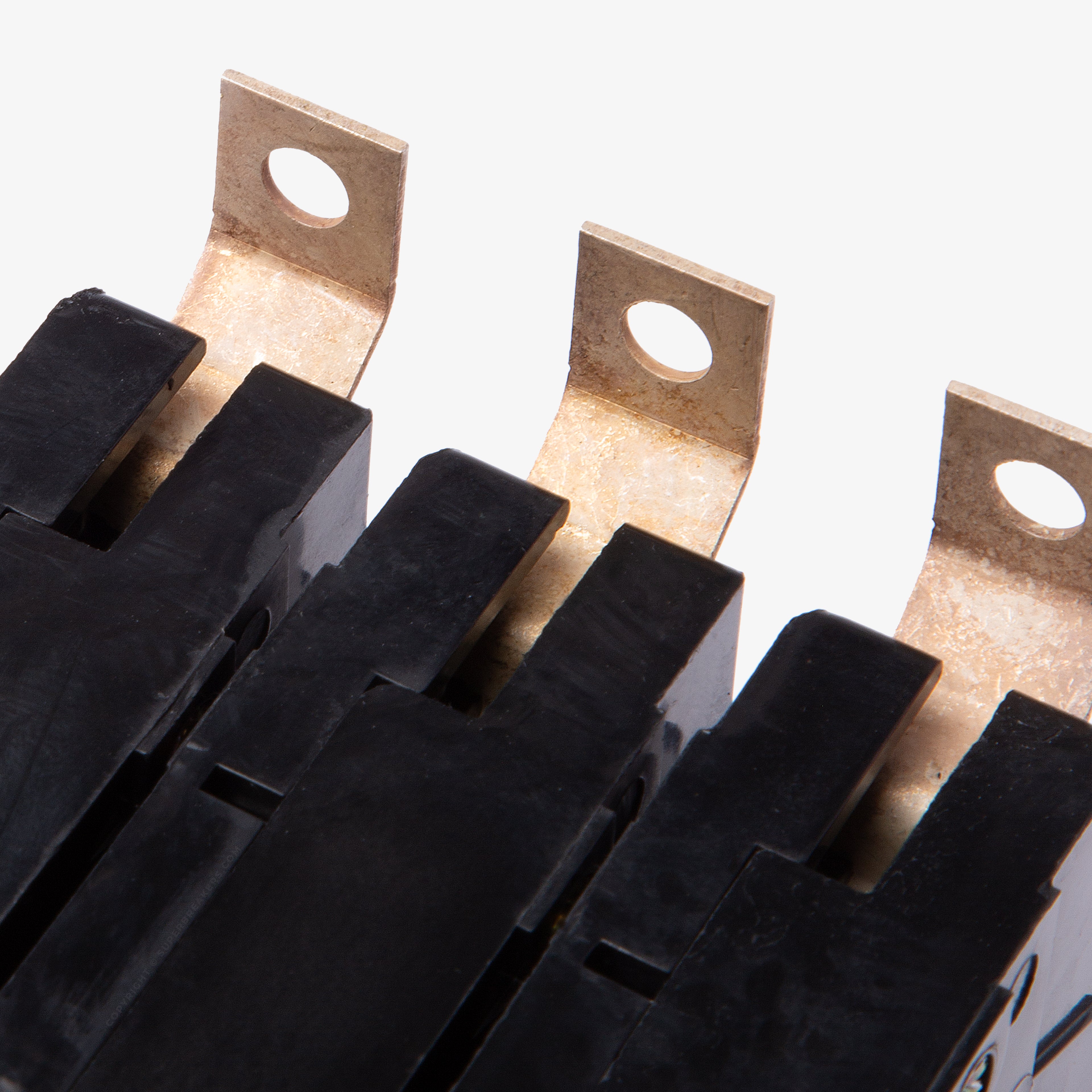

| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |

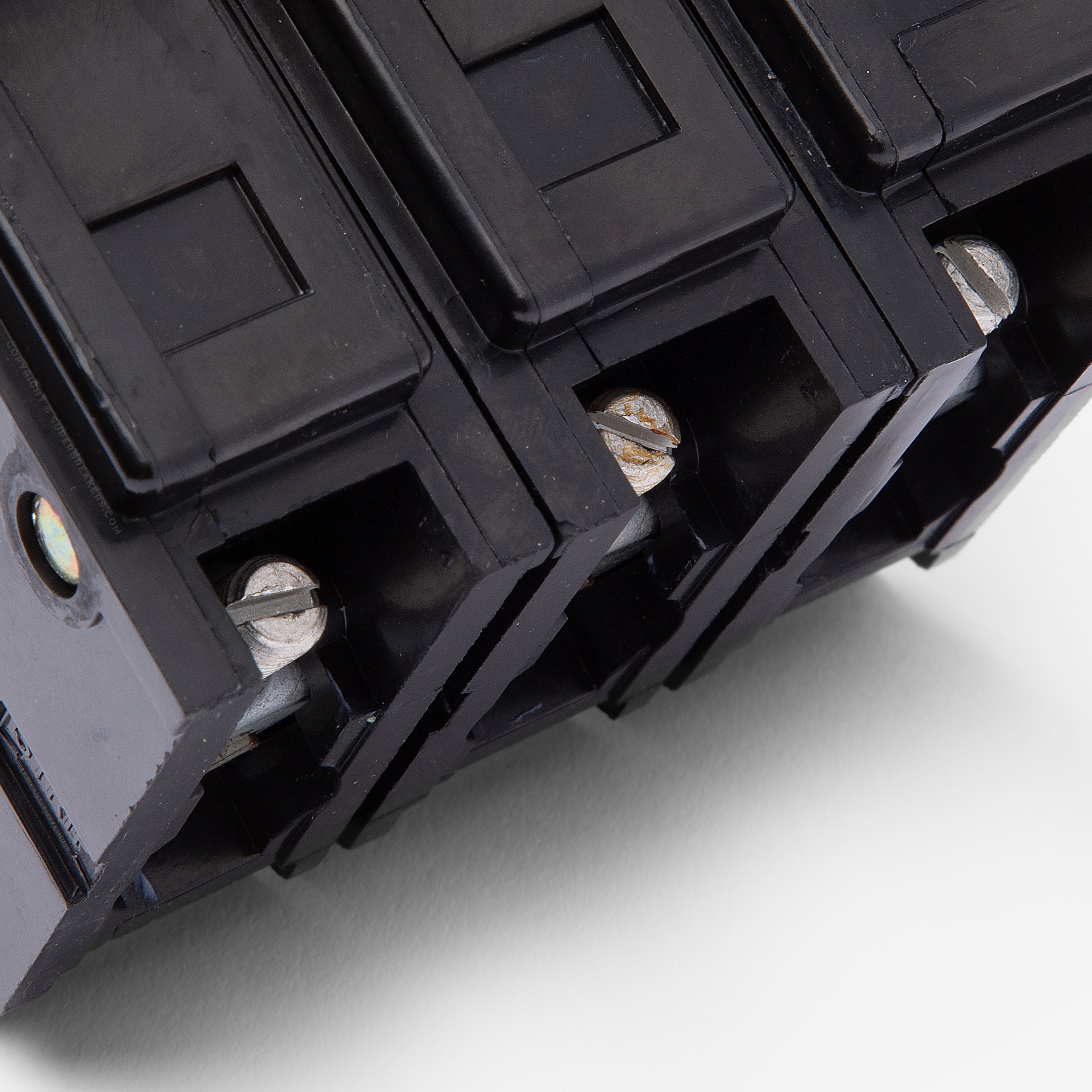

| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
6 answersWhich panelboards accept the QBHW3045H circuit breaker?
This bolt-on breaker is designed for Eaton Pow-R-Line panelboards, including the PRL1a, PRL1X, PRL2X, PRL3a, and PRL3E series.
What are the terminal torque specifications for the QBHW3045H?
The required torque depends on the wire gauge used. Apply 20 in-lbs for 14 to 10 AWG, 25 in-lbs for 8 AWG, and 27 in-lbs for 6 to 4 AWG conductors.
What wire temperature rating is required for the terminals on this breaker?
Eaton specifies using 60/75C rated conductors to ensure proper installation and secure connections at the box lugs.
Is this 45A Quicklag breaker HACR rated?
Yes, the QBHW3045H is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment.
Can the QBHW3045H be back fed in a panelboard?
Yes, standard Eaton Quicklag thermal magnetic breakers can be reverse fed because they lack Line and Load markings. An approved retaining bracket must be installed to secure the breaker to the bussing.
Is this the correct replacement for a legacy Cutler-Hammer QBHW3045H?
Yes. Eaton acquired Cutler-Hammer, and this Eaton breaker is the exact replacement for the older Cutler-Hammer version with the same catalog number.
