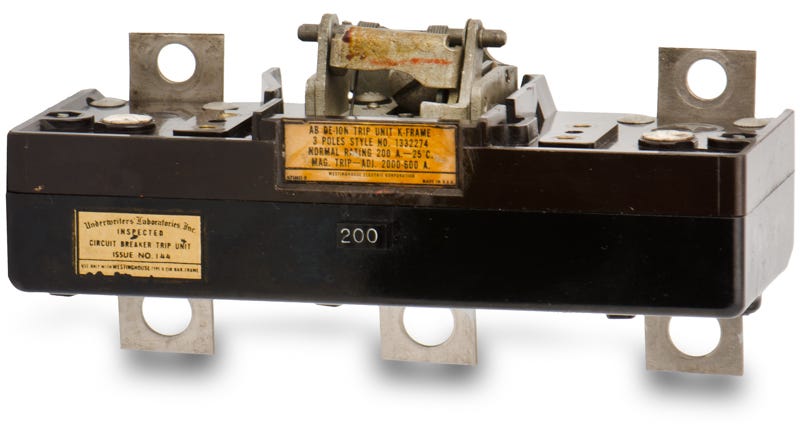

Eaton / Cutler-Hammer K3200T Molded Case Circuit Breaker
- 200A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
K3200T
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
K3200T
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer K3200T - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items

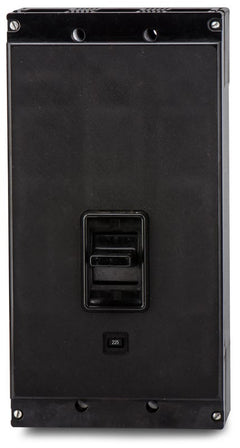

225A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
Description
Belonging to the Series C lineup, the K3200T is a 200A MCCB from Eaton. It delivers reliable overcurrent protection for commercial motor control centers and switchboards. This bolt-on breaker fits legacy Westinghouse and modern Eaton panelboards. It replaces older K-Frame units and crosses to the KD3200 or HKD3200 for upgrades. Rated 22 kAIC at 480VAC, it features an interchangeable thermal-magnetic trip unit with adjustable magnetic settings. It is HACR rated and reverse feed capable.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | K3200T-R |
| Series | K |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Westinghouse Panelboards, Motor Control Centers, Switchboards |
| Wire Gauge | 3 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Accessories | Mounting Hardware |
|---|---|
| Standards | CSA C22.2 No. 5.1, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Interchangeable Trip Unit |
Product FAQs
7 answersWhat equipment is the K3200T designed to fit?
This K-frame molded case circuit breaker installs into Eaton Series C panelboards, legacy Westinghouse enclosures, motor control centers, and switchboards. It serves as a direct fit for older systems without requiring custom mounting adapters.
Can the K3200T replace older Westinghouse breakers?
Yes. Eaton acquired the distribution equipment division of Westinghouse. The Series C K3200T is a drop-in replacement for legacy Westinghouse K-frame breakers, including older KB and KD models of the same amperage.
Is the K3200T suitable for reverse feed applications?
Yes. Eaton Series C K-frame thermal-magnetic circuit breakers without specific line and load markings are suitable for reverse feed use. Always verify that the system is completely de-energized before installation.
What is the purpose of the adjustable magnetic trip on the K3200T?
The adjustable magnetic dial lets you tune the instantaneous short-circuit pickup. This allows electricians to coordinate the breaker with downstream devices or accommodate motor inrush currents without causing nuisance tripping.
Does the K3200T provide ground fault protection?
No. The K3200T features an LI (Long-Time and Instantaneous) thermal-magnetic trip unit. It provides standard overload and short-circuit protection but does not include integrated equipment ground fault protection.
What is the difference between the K3200T and the KD3200?
The K3200T is a standard-interrupting K-frame breaker rated at 22 kAIC at 480VAC. The KD3200 and HKD3200 are higher-interrupting versions in the exact same physical frame size, used when higher fault current ratings are required by the system study.
Can I field-install accessories like shunt trips on the K3200T?
Yes. The Eaton Series C K-frame supports field-installable internal accessories. Shunt trips, undervoltage releases, and auxiliary switches can be installed directly into the designated accessory pockets under the front cover.
