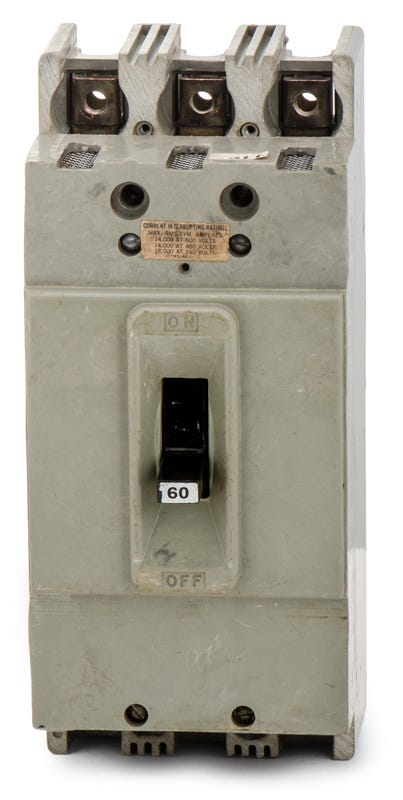

Federal Pacific HF631060 Molded Case Circuit Breaker
- 60A
- 3 Pole
- Bolt-On
Federal Pacific
HF631060
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
HF631060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific HF631060 - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Federal Pacific HF631060 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | HF631060 |
| Series | HF |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 14kA @ 600VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific F-Frame Panelboards |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity |
Sold out
Quantity
Federal Pacific HF631060 - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | HF631060-R |
| Series | HF |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 14kA @ 600VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific F-Frame Panelboards |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity |
Similar Items
50A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
HF631030 - 30A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial facilities, the Federal Pacific HF631060 is a 60A, 3-pole molded case circuit breaker. It serves as a crucial component for maintaining legacy electrical systems with standard long-time and instantaneous trip functions. Designed for exact compatibility, this unit bolts into existing Federal Pacific F-Frame panelboards. The UBIF060 is a known substitute. Delivering a 25kAIC rating at 240VAC, the breaker ensures high interrupting capacity for demanding loads.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | HF631060-R |
| Series | HF |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 14kA @ 600VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific F-Frame Panelboards |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity |
Product FAQs
4 answersWhich panelboards are compatible with the Federal Pacific HF631060?
This bolt-on molded case circuit breaker is designed specifically for installation in legacy Federal Pacific F-Frame panelboards. It allows facilities to replace an aging or failed breaker without the need to retrofit the entire electrical panel.
Is the Federal Pacific HF series still in active production?
No. Federal Pacific Electric (FPE) is no longer manufacturing circuit breakers, making the HF631060 an obsolete, legacy component. Exact-fit replacements are sourced to maintain existing F-Frame panelboards without requiring a full system upgrade.
How is the HF631060 connected within the panelboard?
The line side of the breaker bolts directly to the bus of a Federal Pacific F-Frame panelboard. The load side includes lug terminals that accept wire gauges from 14 AWG to 1/0 AWG for routing power to the branch circuit.
How does the thermal-magnetic trip unit operate on the HF631060?
It utilizes a fixed LI (Long-Time and Instantaneous) trip function. The thermal component provides long-time delay protection against gradual overloads, while the magnetic component delivers instantaneous tripping to clear severe short circuits. Both settings are fixed and cannot be adjusted in the field.
