ABB / General ElectricTE13L020

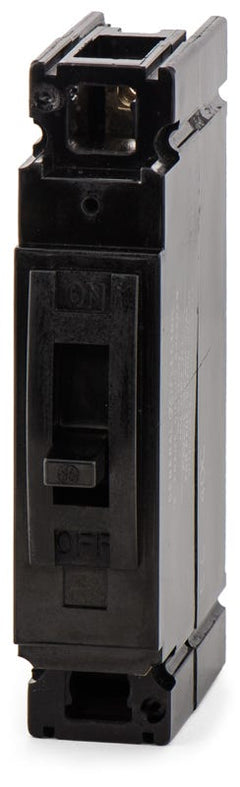

ABB / General Electric TE1020 Molded Case Circuit Breaker
- 20A
- 1 Pole
- Bolt-On
ABB / General Electric
TE1020
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TE1020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TE1020 - 20A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
20A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTE132020
20A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTE111020
20A 1 Pole Molded Case Circuit Breaker
Description
Built for commercial lighting and HVAC applications, the TE1020 supplies 20 amps of continuous power distribution. This single-pole Q-Line breaker fastens securely into GE A-Series panelboards, offering a sturdy bolt-on connection for environments that experience vibration. Carrying a standard 10kAIC rating at 120VAC, the unit includes both HACR and SWD certifications, making it suitable for air conditioning equipment and fluorescent lighting control. Replaced by the TEB111020 model.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TE1020-R |
| Series | TE |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | NEMA AB-1, UL 489 |
| Approval | CSA, HACR, SWD, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Reverse Feed |
Product FAQs
7 answersWhich panelboards are compatible with the TE1020 circuit breaker?
This breaker is designed specifically for bolt-on installation in GE A-Series panelboards. It is a commercial-grade unit and is not compatible with standard plug-on residential load centers.
What is the modern replacement for the legacy TE1020 breaker?
The TE1020 is a legacy E150 frame unit. For ongoing panel maintenance and upgrades, it is officially replaced by the newer TEB111020 or TE111020 models.
Are the terminals on the TE1020 rated for aluminum wire?
Yes, the factory lugs are dual-rated for both copper and aluminum conductors, accommodating wire sizes from 14 AWG to 8 AWG.
How does the TE1020 mount into the panelboard?
It utilizes a bolt-on connection, providing a secure, vibration-resistant mechanical attachment directly to the panelboard busbars.
Is the TE1020 rated for switching duty or HVAC applications?
Yes, this breaker carries both SWD (Switching Duty) and HACR (Heating, Air Conditioning, and Refrigeration) ratings, making it suitable for controlling fluorescent lighting circuits and HVAC equipment.
Does the TE1020 include ground fault or arc fault protection?
No. This is a standard thermal-magnetic breaker providing long-time and instantaneous (LI) trip functions for overload and short-circuit protection. It does not include GFCI or AFCI circuitry.
How does the thermal-magnetic trip unit operate in the TE1020?
The fixed thermal-magnetic mechanism provides dual protection. The thermal component responds to prolonged overloads by heating a bimetallic strip, while the magnetic component provides instantaneous tripping during severe short circuits.
