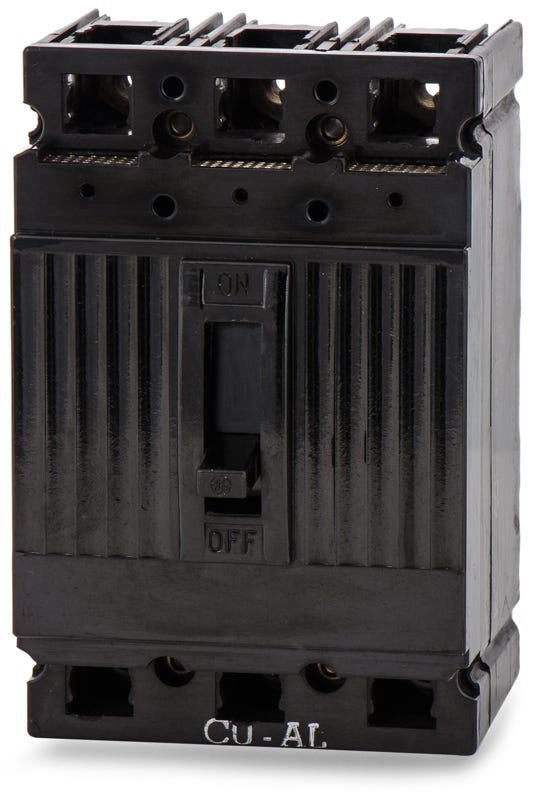

ABB / General Electric TE132020 Molded Case Circuit Breaker
- 20A
- 3 Pole
- Bolt-On
ABB / General Electric
TE132020
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TE132020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TE132020 - 20A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
ABB / General ElectricTE132015
15A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the GE TE132020 is a 3-pole, 20A molded case circuit breaker from the Q-Line series. It features a bolt-on mounting style designed specifically for integration into GE A-Series panelboards. Providing long-time and instantaneous (LI) thermal-magnetic trip functions, this breaker is rated for 10kAIC at 240VAC. Note that this legacy TE frame unit is officially replaced by the newer TEB132020 model for ongoing panel maintenance.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TE132020-R |
| Series | TE |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | TE |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | UL 489, CSA C22.2 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Common Trip |
Product FAQs
8 answersWhat panelboards are compatible with the GE TE132020 circuit breaker?
The TE132020 is a bolt-on molded case circuit breaker designed specifically for integration into GE A-Series panelboards. It is not compatible with load centers or panels from other manufacturers like Siemens, Eaton, or Square D.
Is the GE TE132020 still manufactured, or is there a direct replacement?
The TE132020 is a legacy Q-Line series breaker. For ongoing panel maintenance and upgrades, it is officially replaced by the newer TEB132020 (or TEB132020WL) model, which mounts seamlessly into the same GE A-Series and Spectra Series panelboards.
What wire sizes and materials are supported by the TE132020 breaker lugs?
The factory-installed lugs on this breaker accept wire gauges from 14 AWG up to 8 AWG. The terminals are dual-rated for use with both copper (Cu) and aluminum (Al) conductors.
How does the thermal-magnetic trip mechanism function on the TE132020?
This breaker features fixed Long-Time and Instantaneous (LI) trip functions. The thermal element provides delayed tripping to protect against sustained overloads, while the magnetic element ensures immediate tripping during severe short circuits.
How does the TE132020 mount into the electrical panel?
This breaker utilizes a bolt-on connection type, securely fastening directly to the busbar of compatible GE A-Series panelboards. This bolted connection provides a highly stable, vibration-resistant contact suitable for commercial and industrial environments.
Can I install a Siemens or Eaton breaker in place of the GE TE132020 in my A-Series panel?
No. GE A-Series panelboards have proprietary busbar designs that require GE-approved breakers. Installing cross-brand breakers can result in improper fitment, potential arcing hazards, and voided UL safety listings.
Is the TE132020 suitable for DC voltage applications?
Yes. In addition to its standard 240VAC rating, this 3-pole breaker is also rated for use in up to 250VDC systems, providing flexibility for specific industrial control or direct current applications.
What does the TE frame designation indicate for this GE breaker?
The TE frame indicates it belongs to GE's legacy E150 line, which has a maximum frame size of 150 amps. It shares physical dimensions and mounting characteristics with other TE and newer TEB frame breakers used in commercial panelboards.
