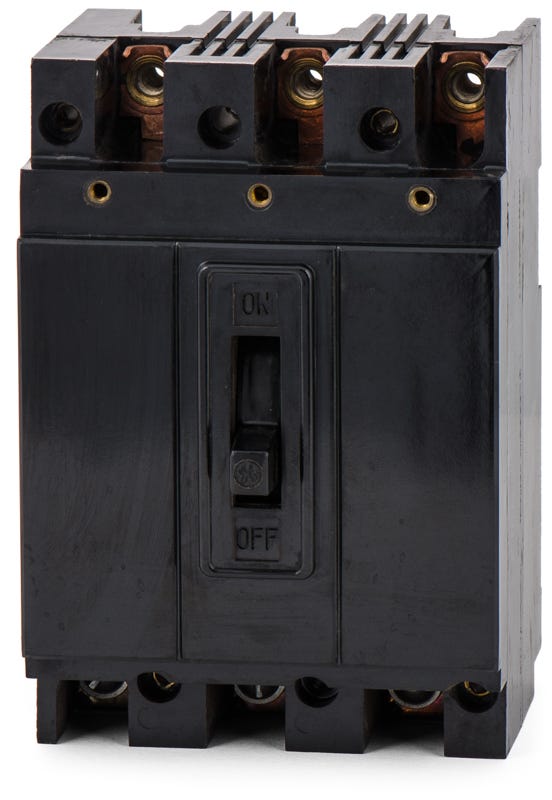

ABB / General Electric TE32020 Molded Case Circuit Breaker
- 20A
- 3 Pole
- Bolt-On
ABB / General Electric
TE32020
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TE32020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TE32020 - 20A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
ABB / General ElectricTE132015
15A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
Description
The TE32020 is a 3-pole, 20A molded case circuit breaker from GE's Q-Line series. Built for commercial and industrial applications, it delivers reliable thermal-magnetic protection for electrical systems. This bolt-on MCCB installs into GE A-Series panelboards. It serves as a drop-in replacement for legacy installations and is superseded by the TEB132020 model for newer upgrades.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TE32020-R |
| Series | TE |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | TE3 |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Reverse Feed |
Product FAQs
6 answersWhat panelboards are compatible with the GE TE32020 circuit breaker?
The GE TE32020 is specifically designed for installation in GE A-Series panelboards. It requires a bolt-on connection directly to the panelboard bus.
How is the TE32020 secured within the panelboard?
As a bolt-on breaker, the TE32020 fastens directly to the bus bars of a GE A-Series panelboard using mounting screws. This provides a highly secure mechanical and electrical connection compared to standard plug-in breakers.
What wire gauge range is supported by the TE32020 terminals?
The standard lug terminals on the TE32020 accept wire sizes from 14 AWG to 8 AWG. Ensure conductors are properly stripped and torqued to the specifications listed on the breaker label during installation.
Can the trip settings on the TE32020 be adjusted in the field?
No, this breaker uses a fixed thermal magnetic trip unit. It provides standard long time and instantaneous protection, but the trip curve parameters cannot be modified by the user.
Can the TE32020 be used in direct current applications?
Yes, while primarily used in 240V alternating current systems, the TE32020 is also rated for 250V direct current applications, where it provides a 5kA interrupting capacity.
What are the primary safety steps for installing a bolt-on breaker like the TE32020?
Always de-energize the panelboard before installation. Because bolt-on breakers require physical fastening to the bus bars, failing to disconnect the main power ahead of the panelboard poses a severe shock hazard.
