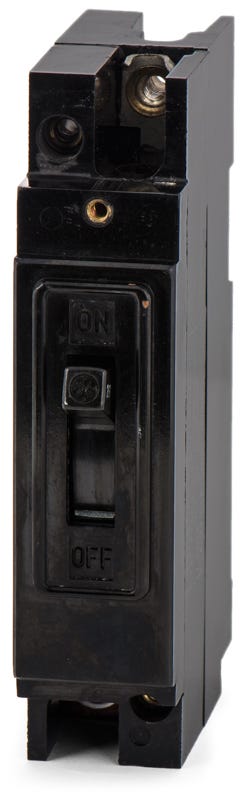

ABB / General Electric TE13L020 Molded Case Circuit Breaker
- 20A
- 1 Pole
- Bolt-On
ABB / General Electric
TE13L020
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TE13L020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TE13L020 - 20A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
20A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC1120
20A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC1120WL
20A 1 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the GE TE13L020 is a 20A, 1-pole molded case circuit breaker. It delivers dependable thermal-magnetic protection for 120/277VAC and 125VDC electrical systems. Designed for a precise fit, it mounts into GE A-Series panelboards via a standard bolt-on connection. If a substitute is required, the TED113020 serves as the official replacement. This Q-Line breaker provides a 14kAIC rating at 277VAC. It is HACR and HID rated for specialized loads.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TE13L020-R |
| Series | TE |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC, 10kA @ 125VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | UL 489, CSA C22.2 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, SWD Rated |
Product FAQs
7 answersCan I install the TE13L020 in a standard residential load center?
No. The TE13L020 is a bolt-on, feed-thru molded case circuit breaker designed for commercial and industrial GE A-Series panelboards. It will not fit in standard residential plug-on load centers like GE PowerMark Gold.
Does the TE13L020 support 277V lighting circuits?
Yes, this breaker is rated for up to 277VAC, making it suitable for commercial 277V lighting and single-phase industrial loads. It provides a 14kA interrupting capacity at 277VAC.
Are the terminal lugs included with the TE13L020?
Yes, the breaker comes with factory-installed lugs that accept both copper and aluminum conductors. Ensure you torque the connections to the manufacturer's specifications when terminating the 14-10 AWG (Cu) or 12-10 AWG (Al) wire.
Can I adjust the trip settings on the TE13L020?
No, the thermal-magnetic trip unit on this breaker is fixed. The Long-Time and Instantaneous (LI) trip functions are factory-calibrated for 20-amp protection and cannot be modified in the field.
What does a "feed-thru" connection mean for the TE13L020?
A feed-thru configuration means the breaker is equipped with lugs on both the line and load sides, rather than plugging into a busbar stab on one end. This allows for direct wire connections at both terminals, which is common in standalone enclosures and specific industrial control panels.
Why does my existing TE13L020 say General Electric, but new replacements say ABB?
ABB acquired GE Industrial Solutions in 2018. As a result, newer production runs of the TE-series breakers carry the ABB brand name. They are exact drop-in replacements for legacy GE-branded units and maintain the same UL listings.
Can the TE13L020 be used in DC applications?
Yes, this breaker is rated for 125VDC with a 10kA interrupting capacity, making it suitable for specific direct current control circuits and battery systems.
