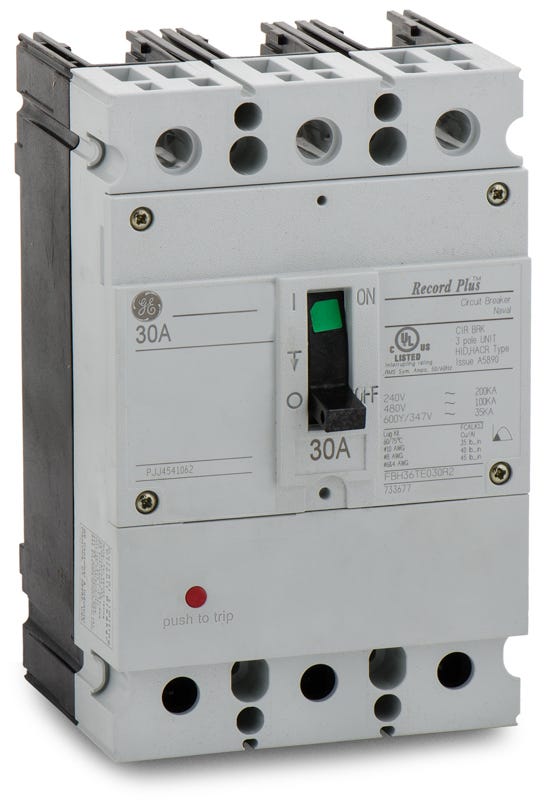

ABB / General Electric FBH36TE030R2 Molded Case Circuit Breaker
- 30A
- 3 Pole
- Unit Mount
ABB / General Electric
FBH36TE030R2
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
FBH36TE030R2
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric FBH36TE030R2 - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricFBH36TE025RV

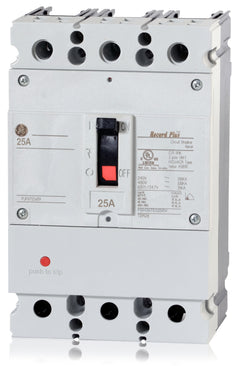

25A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricFBH36TE040RV
40A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricFBH36TE045RV
45A 3 Pole Molded Case Circuit Breaker
Description
Engineered for demanding commercial environments, the GE FBH36TE030R2 is a 3-pole, 30A molded case circuit breaker from the Record Plus family. It features a fixed thermal magnetic trip unit with long-time and instantaneous (LI) protection functions. This unit mount breaker comes equipped with load side lugs for secure wire terminations. Boasting a robust 100 kAIC rating at 480VAC, it utilizes a double-break rotary contact structure to provide exceptional current limiting performance.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | FBH36TE030R2 |
| Series | FBH |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 100kA @ 480VAC, 35kA @ 600Y/347VAC, 85kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards (Type AD), GE Record Plus Panelboards |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL, USCG |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, HID Rated, Reverse Feed |
Product FAQs
7 answersWhat panelboards are compatible with the FBH36TE030R2 breaker?
This breaker is designed for use in GE A-Series panelboards, specifically Type AD, as well as GE Record Plus panelboards.
What wire size is accepted by the load lugs on this breaker?
The factory-installed load side lugs accept wire gauges from 14 AWG to 4 AWG. Ensure you use properly rated conductors based on the 30A rating and local electrical codes.
What does the FBH frame designation indicate for this Record Plus breaker?
The FBH frame indicates a very high interrupting capacity version within the GE Record Plus family. It provides up to 100kA of fault current interruption at 480V AC and 200kA at 240V AC.
Why is this breaker listed as both ABB and General Electric?
ABB acquired GE Industrial Solutions. As a result, Record Plus molded case circuit breakers like the FBH36TE030R2 may arrive with either GE or ABB branding, but they are the exact same component and are fully interchangeable.
Can I adjust the trip settings on the FBH36TE030R2?
No, this specific model features a fixed thermal and fixed magnetic trip unit. The Long-Time and Instantaneous functions are factory set for 30 amps and cannot be field adjusted.
How is the FBH36TE030R2 mounted inside an enclosure?
This is a unit mount, bolt-on circuit breaker. It is designed to be bolted directly to the chassis or mounting pan of a compatible control panel or panelboard rather than snapping onto a busbar.
Is this breaker suitable for direct current applications?
Yes, the FBH36TE030R2 is rated for DC systems up to 500V DC, providing an interrupting capacity of 85kA. Verify your specific wiring configuration meets manufacturer guidelines for DC switching.
