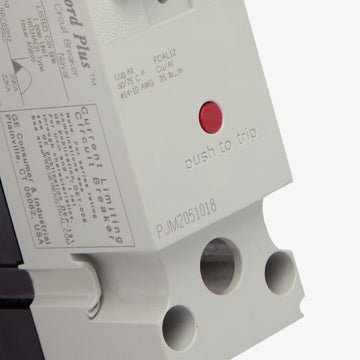

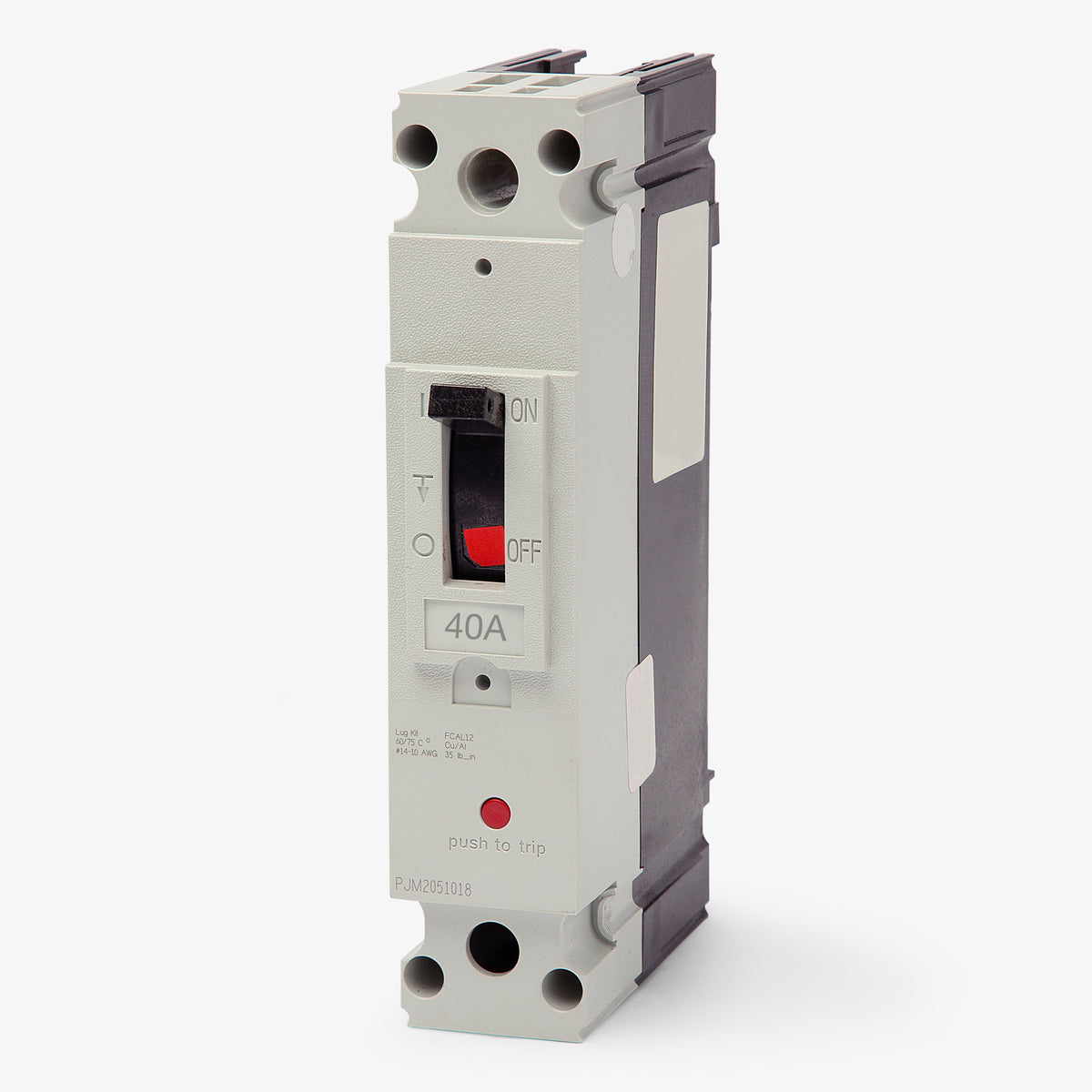

ABB / General Electric FBV16TE040RV Molded Case Circuit Breaker
- 40A
- 1 Pole
- Bolt-On
ABB / General Electric
FBV16TE040RV
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
FBV16TE040RV
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric FBV16TE040RV - 40A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricFBV16TE020RV
20A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricFBV16TE015RV
15A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricFBV36TE040RV
40A 3 Pole Molded Case Circuit Breaker
Description
Engineered for robust power distribution, this 40A, single-pole MCCB belongs to the GE Record Plus series. It handles demanding commercial and industrial environments with ease. The FBV16TE040RV mounts into GE A-Series AD and AD Plus panelboards. Its bolt-on design ensures a secure connection for consistent power delivery across 240V, 277V, and 347VAC systems. This current-limiting breaker delivers a 35kAIC interrupting rating at 277V and includes fixed thermal and magnetic trip functions.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | FBV16TE040RV |
| Series | FBV |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 277VAC, 347VAC |
| Phase | 1 |
| AIC Rating | 35kA @ 240VAC, 35kA @ 277VAC, 22kA @ 347VAC |
| Frame Type | FB |
|---|---|

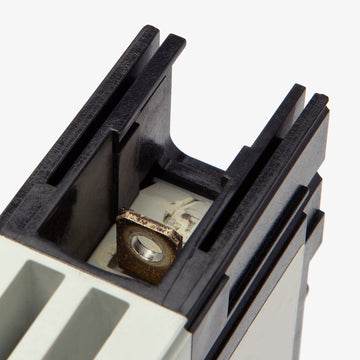

| Terminal Type | Lugs |
| For Use With | GE A-Series AD / AD Plus Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Line Connections for AD Panels, Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Naval Rated, Reverse Feed |
Product FAQs
5 answersWhich panelboards are compatible with the FBV16TE040RV circuit breaker?
This breaker is designed specifically for use with GE A-Series AD and AD Plus panelboards.
What wire sizes and materials are supported by the lugs on the FBV16TE040RV?
The terminals accept 10 AWG through 4 AWG conductors and are rated for both copper and aluminum wiring.
Are the thermal and magnetic trip settings adjustable on this FB frame breaker?
No, this unit features a fixed thermal and fixed magnetic trip mechanism.
What does the LI trip function code indicate for this Record Plus breaker?
The LI designation signifies that the breaker provides Long-Time and Instantaneous trip functions, offering standard overload and short circuit protection.
Will this breaker be branded as ABB or General Electric?
Because ABB acquired GE Industrial Solutions, Record Plus breakers may carry either brand name. They are identical in form, fit, and function.
