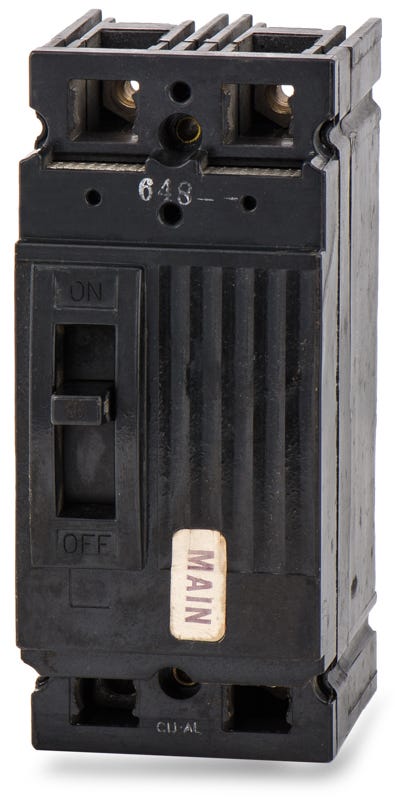

ABB / General Electric TE122100 Molded Case Circuit Breaker
- 100A
- 2 Pole
- Bolt-On
ABB / General Electric
TE122100
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TE122100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TE122100 - 100A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
ABB / General ElectricTE132100
100A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTQD22100
100A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTQD22100WL
100A 2 Pole Molded Case Circuit Breaker
Description
Providing essential circuit protection, the GE TE122100 is a two-pole, 100A molded case breaker from the Q-Line family. It utilizes fixed thermal and magnetic trip elements to safeguard commercial electrical systems. This unit mounts into GE A-Series panelboards, ensuring a tight bolt-on connection for continuous power delivery. It serves as an exact match for legacy setups and can be substituted with the TEB122100. The breaker is rated for 10kAIC at 240VAC and includes standard lugs.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TE122100-R |
| Series | TE |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC, 10kA @ 120/240VAC |
| Frame Type | TE |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 3-1 AWG (Cu/Al) |
| Max Wire | 1 AWG |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | NEMA AB-1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Common Trip |
Product FAQs
6 answersWhich panelboards are compatible with the TE122100 circuit breaker?
The TE122100 is designed for installation in GE A-Series panelboards. It requires standard bolt-on mounting hardware to secure the breaker to the panel bus.
Can the TE122100 be installed in a standard GE residential load center?
No. The TE122100 is a bolt-on circuit breaker designed specifically for commercial GE A-Series panelboards. It is not compatible with residential load centers that require plug-on Q-Line breakers like the THQL series.
Does the TE122100 come with lugs installed?
Yes, the breaker includes factory-installed lugs that accept 3 AWG to 1 AWG copper or aluminum wire (Cu/Al). Ensure all connections are properly torqued to the manufacturer specifications during installation.
Can I use the TEB122100 as a replacement for the TE122100?
Yes, the TEB122100 is a direct substitute for the TE122100. Both are 100A, 2-pole, 240V E-frame breakers that share the exact same physical footprint and bolt-on mounting hardware for GE A-Series panelboards.
Is the TE122100 rated for use with heating and cooling equipment?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration branch circuits.
What does the LI trip function on the TE122100 indicate?
The LI designation means the breaker includes Long-Time and Instantaneous trip functions. The fixed thermal element provides long-time protection against sustained overloads, while the fixed magnetic element provides instantaneous protection against short circuits.
