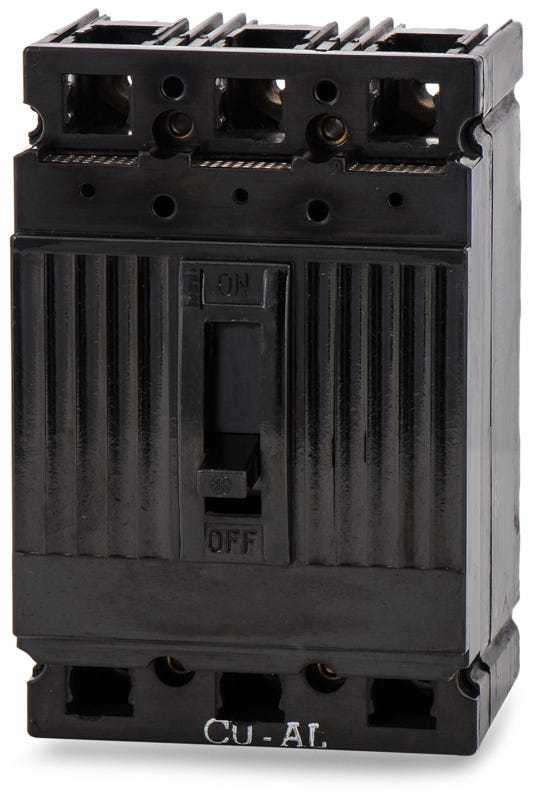

ABB / General Electric TE132100 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Bolt-On
ABB / General Electric
TE132100
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TE132100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TE132100 - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
ABB / General ElectricTE132020
20A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTE132015
15A 3 Pole Molded Case Circuit Breaker
Description
Mounts into GE A-Series panelboards to provide essential overcurrent protection. The TE132100 is a 3-pole, 100A molded case circuit breaker from the E150 product line, utilizing fixed thermal-magnetic trip units for reliable defense. This bolt-on MCCB ensures a secure connection within commercial enclosures. It includes standard lugs for 4 AWG to 3/0 AWG conductors and is officially replaced by the TEB132100. Rated at 10kAIC at 240VAC, it safely interrupts standard fault currents.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TE132100-R |
| Series | TE |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | TE |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 4 AWG - 3/0 AWG (Cu), 1 AWG - 3/0 AWG (Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | UL 489, CSA C22.2 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Common Trip |
Product FAQs
6 answersWhich panelboards are compatible with the TE132100 circuit breaker?
The TE132100 is a bolt-on molded case circuit breaker designed specifically for installation in GE A-Series panelboards.
What wire sizes are accepted by the lugs on the TE132100?
The factory-installed lugs accommodate 4 AWG to 3/0 AWG copper (Cu) conductors, or 1 AWG to 3/0 AWG aluminum (Al) conductors.
What type of trip unit does the TE132100 use?
It is equipped with a fixed thermal magnetic trip unit providing long-time and instantaneous (LI) protection against overloads and short circuits.
Is there a direct replacement or alternate catalog number for the TE132100?
Yes, the TE132100 has been officially replaced by the GE TEB132100, which can be used as a direct cross-reference when sourcing this 100A, 3-pole breaker.
How is the TE132100 secured within the enclosure?
As a TE frame breaker from the Q-Line family, it features a bolt-on connection type that fastens directly to the panelboard bus for a secure, vibration-resistant installation.
Can the TE132100 be used in DC applications?
Yes, in addition to its standard 240VAC rating, this breaker is rated for 250VDC applications with an interrupting capacity of 5kA.
