ABB / General Electric TE132060 Molded Case Circuit Breaker
- 60A
- 3 Pole
- Unit Mount
ABB / General Electric
TE132060
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TE132060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

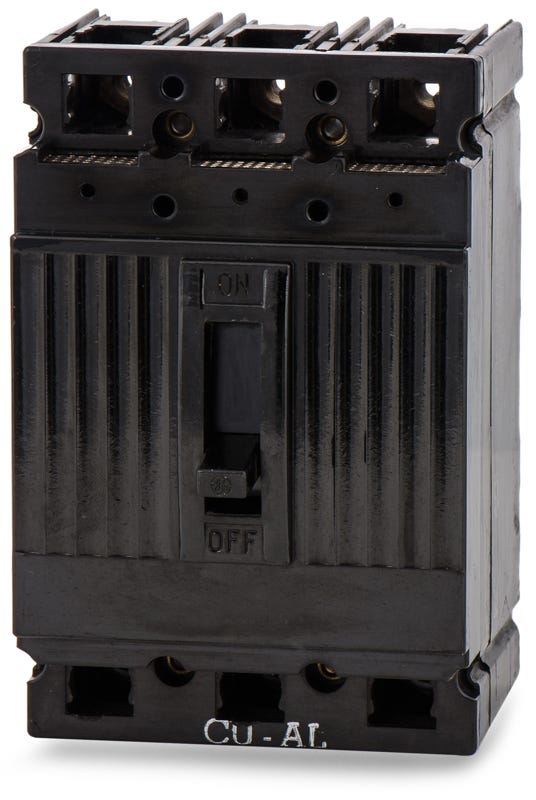

ABB / General Electric TE132060 - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
ABB / General ElectricTHQL32060
60A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTEYH3060B
60A 3 Pole Molded Case Circuit Breaker
3 Pole Circuit Breaker
Description
Designed for reliable power management, the GE TE132060 is a 3-phase, 60A molded case circuit breaker. It provides essential long-time and instantaneous (LI) protection for commercial and industrial facilities operating on 240VAC networks. This unit mount MCCB is engineered for compatibility with GE A-Series panelboards. It acts as an exact substitute for the discontinued TEB132060, ensuring a smooth upgrade path. It features a 10kAIC rating, reverse feed support, and a trip-free mechanism.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | TE |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | TE |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 1 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | UL 489, CSA C22.2 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Reverse Feed |
Product FAQs
8 answersWhat panelboards are compatible with the TE132060 circuit breaker?
This bolt-on molded case circuit breaker is designed specifically for installation in GE A-Series panelboards. It is not compatible with standard residential Q-Line load centers.
Can I use the TE132060 to replace an older TEB132060 breaker?
Yes, the TE132060 is an exact, direct replacement for the discontinued GE TEB132060. It provides the same form, fit, and function for A-Series panelboards, ensuring a seamless upgrade.
Do the standard lugs on the TE132060 accept both copper and aluminum wiring?
Yes, the factory-installed lugs are dual-rated for both copper (14 to 3 AWG) and aluminum (12 to 1 AWG) conductors.
Are the trip settings adjustable on the TE132060?
No, this breaker features a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous trip functions cannot be adjusted in the field.
Why might my TE132060 breaker arrive with ABB branding instead of GE?
ABB acquired GE Industrial Solutions in 2018. Depending on the manufacturing date, this breaker may feature either ABB or GE branding. The product itself remains identical in form, fit, and function regardless of the label.
How does the TE132060 mount into the panelboard?
This is a unit-mount, bolt-on circuit breaker. It must be securely bolted directly to the busbars of a compatible GE A-Series panelboard rather than snapping into place.
Is the TE132060 rated for use in DC circuits?
Yes, in addition to its standard AC rating, this breaker is rated for up to 250VDC with a 5kA interrupting capacity, making it suitable for specific direct current applications.
Does this breaker provide ground fault or arc fault protection?
No, the TE132060 is a standard thermal-magnetic breaker providing only overload (long-time) and short-circuit (instantaneous) protection. It does not include GFCI or AFCI capabilities.
