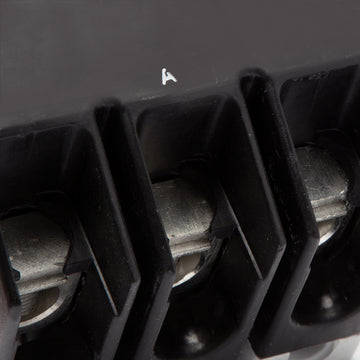

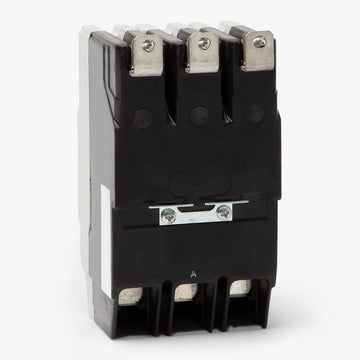

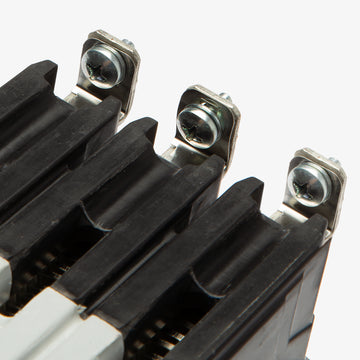

General Electric TEYL3060B Circuit Breaker
- 60
- 3 Pole
- Bolt-On
General Electric
TEYL3060B
Circuit Breaker
Brand
General Electric
SKU
TEYL3060B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
General Electric TEYL3060B 3 Pole Circuit Breaker
New
Quantity
Quantity
General Electric TEYL3060B 3 Pole Circuit Breaker
New
Quantity
| Brand | General Electric |
|---|---|
| Series | TEYL |
| Amperage | 60 A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 480/277V |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 42kA @ 125VDC, 35kA @ 250VDC, 100kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Load Lugs (Factory Installed) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Quantity
General Electric TEYL3060B 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | General Electric |
|---|---|
| Series | TEYL |
| Amperage | 60 A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 480/277V |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 42kA @ 125VDC, 35kA @ 250VDC, 100kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Load Lugs (Factory Installed) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
ABB / General ElectricTEYL3050B
50A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTEYL3045B
45A 3 Pole Molded Case Circuit Breaker
3 Pole Circuit Breaker
Description
General Electric TEYL3060B 3 Pole Circuit Breaker
The General Electric TEYL3060B is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 60 Amps and a voltage rating of 480/277V. It has an interrupting rating of 65kAIC at 480V. The TEYL3060B has a bolt-on connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | General Electric |
|---|---|
| Series | TEYL |
| Amperage | 60 A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 480/277V |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 42kA @ 125VDC, 35kA @ 250VDC, 100kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Load Lugs (Factory Installed) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
7 answersWhich lighting panelboards are compatible with the TEYL3060B?
This circuit breaker is specifically engineered for installation in GE A-Series lighting panelboards. It utilizes a one-inch per pole footprint and bolts directly to the panelboard interior bus.
What are the wire size limits for the load terminals on the TEYL3060B?
The factory-installed load lugs will accept copper or aluminum conductors ranging from 10 AWG up to 4 AWG. Ensure proper torque specifications are followed during termination.
Can the TEYL3060B be used as a standalone lug-to-lug breaker?
Yes, but it requires a separate TEY3B bolt-on mounting base. This accessory adapts the standard panelboard mounting into a unit-mount configuration for independent lug-to-lug wiring.
What does the B suffix mean in the TEYL3060B catalog number?
In the GE TEY product nomenclature, the B suffix designates the breaker as having a bolt-on attachment. This distinguishes it from other mounting variants and confirms compatibility with standard bolt-on panelboard bus bars.
Is the TEYL3060B suitable for reverse feed wiring?
Yes, this breaker is rated for reverse feed applications. The supply power can be connected to either the line or load side terminals without compromising the internal trip mechanism.
Are the long-time and instantaneous trip elements adjustable on the TEYL3060B?
No. The thermal-magnetic trip unit features fixed long-time and fixed instantaneous parameters. The internal trip mechanism is factory-calibrated and cannot be adjusted or swapped in the field.
Can the TEYL3060B be installed on an ungrounded 480V delta system?
No. Because this breaker carries a 480/277V slash voltage rating, electrical codes restrict its use strictly to solidly grounded wye systems. It must not be installed on ungrounded or corner-grounded delta configurations.
