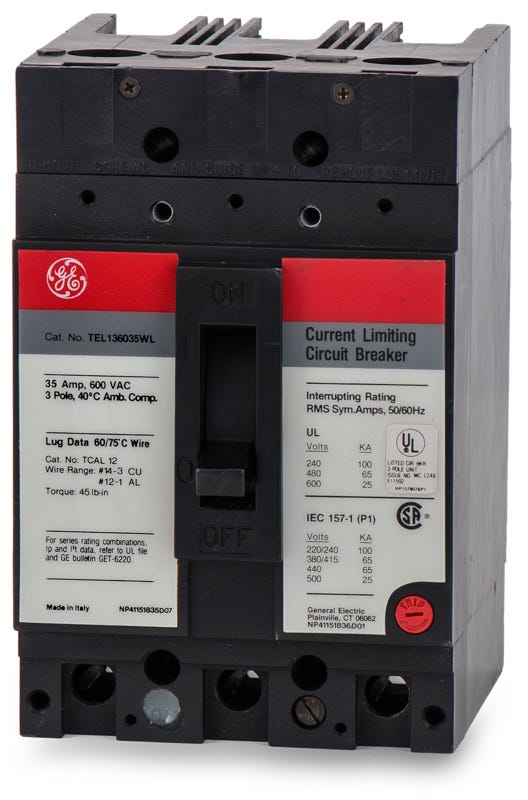

ABB / General Electric TEL136035WL Molded Case Circuit Breaker
- 35A
- 3 Pole
- Unit Mount
ABB / General Electric
TEL136035WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TEL136035WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEL136035WL - 35A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
ABB / General ElectricTEL136030WL
30A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTEL136020
20A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTEL136070
70A 3 Pole Molded Case Circuit Breaker
Description
Rated 100kAIC at 240V, this 3-pole molded case circuit breaker provides reliable long-time and instantaneous (LI) protection. The unit features a fixed thermal-magnetic trip and includes line and load lugs for immediate wiring. Designed for unit-mount installations, it fits seamlessly into GE A-Series panelboards, Spectra switchboards, and motor control centers. It serves as a high-interrupting upgrade over standard TED and THED models. This current-limiting E-Frame breaker is HACR rated.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEL136035WL-R |
| Series | TEL |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Switchboards, Motor Control Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (Line & Load) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Common Trip, Non-Interchangeable Trip, Trip-Free Mechanism |
Product FAQs
6 answersWhat equipment is the TEL136035WL breaker designed to fit?
This E-Frame breaker is designed for unit mount installations in GE A-Series panelboards, Spectra switchboards, and motor control centers.
Can the TEL136035WL replace standard TED or THED breakers?
Yes, the TEL series shares the same physical E-Frame footprint as TED and THED models. It serves as a direct, high-interrupting capacity upgrade for those standard breakers.
What does the "WL" suffix indicate on this GE catalog number?
The "WL" suffix indicates that the breaker comes factory equipped with both line and load side lug terminals.
What wire sizes are compatible with the lugs on this breaker?
The factory-installed line and load lugs accept copper or aluminum wire ranging from 14 AWG to 4 AWG.
Is the TEL136035WL HACR rated?
Yes, this E-Frame breaker is HACR rated for use with heating, air conditioning, and refrigeration equipment.
Why is this breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. Depending on the manufacturing date, this breaker may feature either ABB or GE branding, but the physical footprint and specifications remain identical.
