ABB / General Electric TEL134035WL Molded Case Circuit Breaker
- 35A
- 3 Pole
- Unit Mount
ABB / General Electric
TEL134035WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TEL134035WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

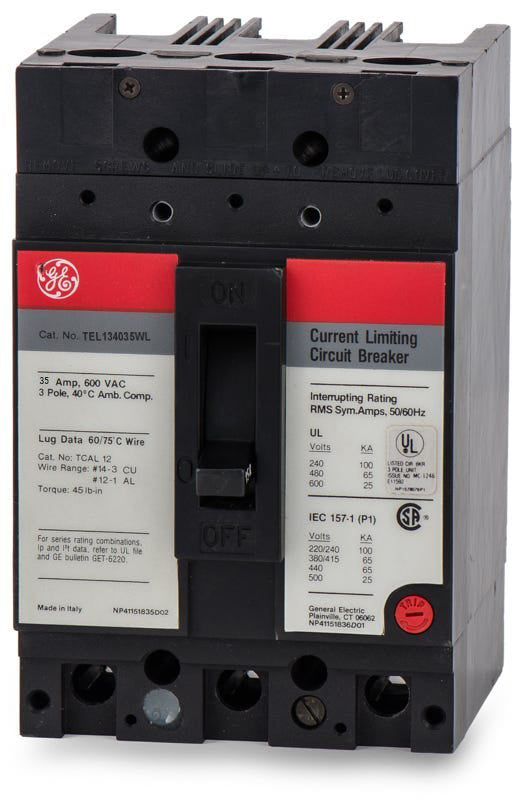

ABB / General Electric TEL134035WL - 35A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTEL136020
20A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTEL136070
70A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTEL136125
125A 3 Pole Molded Case Circuit Breaker
Description
Industrial power systems benefit from the advanced current-limiting capabilities of the TEL134035WL. This 35-amp, three-pole device provides essential long-time and instantaneous protection. Featuring a unit-mount design, it installs into standalone enclosures and switchboards. While GE transitioned to the Tmax XT1N series, this E-Frame unit remains vital for maintaining existing equipment. With a robust 65kA interrupting rating at 480VAC, the breaker minimizes let-through energy.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEL134035WL |
| Series | TEL |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Lugs (Line & Load) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Common Trip, Trip-Free Mechanism, Quick-Make/Quick-Break, Non-Interchangeable Trip, Reverse Feed |
Product FAQs
6 answersWhat panelboards are compatible with the TEL134035WL circuit breaker?
This breaker is designed for installation in GE A-Series panelboards, as well as compatible GE switchboards, motor control centers, and individual enclosures.
What does the WL suffix mean in the TEL134035WL catalog number?
The WL suffix indicates that the circuit breaker is factory-equipped with both line and load lugs.
Can the TEL134035WL replace a TED or THED breaker?
Yes, the TEL134035WL shares the exact same physical E-frame dimensions as GE TED and THED breakers. It serves as a direct replacement or upgrade, providing a higher interrupting capacity of 65kAIC at 480VAC.
Can this breaker be used in DC power systems?
Yes, the TEL134035WL is rated for DC applications and provides a 10kA interrupting capacity at both 250VDC and 500VDC.
What wire sizes and materials are compatible with the lugs on this breaker?
The factory-installed lugs accept 14 AWG to 4 AWG copper or aluminum conductors.
How is the TEL134035WL installed?
This is a unit-mount, feed-thru circuit breaker that bolts directly to the chassis or base of compatible panelboards and enclosures.
