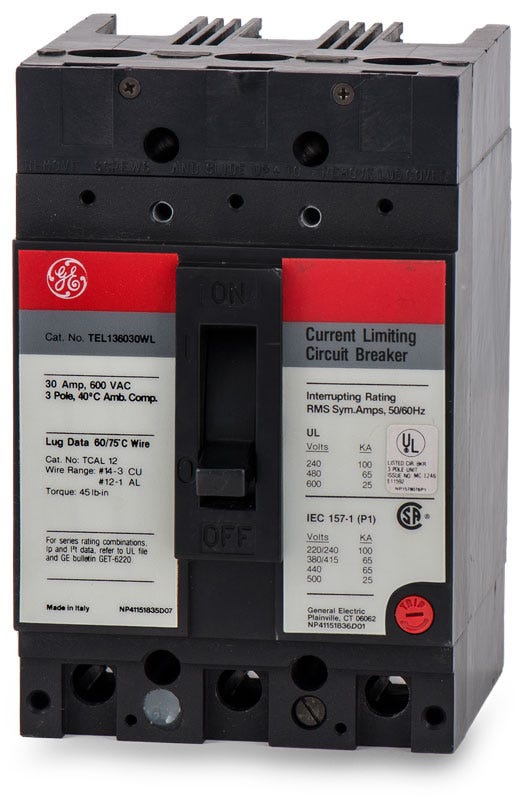

ABB / General Electric TEL136030WL Molded Case Circuit Breaker
- 30A
- 3 Pole
- Unit Mount
ABB / General Electric
TEL136030WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TEL136030WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEL136030WL - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
ABB / General Electric TEL136030WL - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEL136030WL-R |
| Series | TEL |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Switchboards, Motor Control Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (Line & Load) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Common Trip, Non-Interchangeable Trip, Trip-Free Mechanism |
Quantity
ABB / General Electric TEL136030WL - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEL136030WL-R |
| Series | TEL |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Switchboards, Motor Control Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (Line & Load) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Common Trip, Non-Interchangeable Trip, Trip-Free Mechanism |
Similar Items
ABB / General ElectricTEL136020
20A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTEL136070
70A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTEL136125
125A 3 Pole Molded Case Circuit Breaker
Description
Belonging to the legacy E-Frame family, the GE TEL136030WL provides reliable long-time and instantaneous protection. This 3-pole, 30A MCCB handles heavy-duty power distribution. Designed for unit-mount configurations, it installs into GE A-Series panelboards and Spectra switchboards. It acts as a high-performance upgrade over standard TED or THED models. Delivering 100kAIC at 240VAC, this current-limiting breaker ensures superior fault interruption. It features HACR certification.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEL136030WL-R |
| Series | TEL |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Switchboards, Motor Control Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (Line & Load) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Common Trip, Non-Interchangeable Trip, Trip-Free Mechanism |
Product FAQs
6 answersWhich GE enclosures are compatible with the TEL136030WL?
This legacy E-frame breaker is designed for unit-mount configurations in GE A-Series panelboards, GE Spectra switchboards, and standard motor control centers.
Can the TEL136030WL replace standard TED or THED breakers?
Yes, as part of the legacy E-frame family, it acts as a high-performance, current-limiting upgrade over standard TED or THED models.
Is the TEL136030WL suitable for HVAC applications?
Yes, this breaker features HACR certification, making it approved for use with heating, air conditioning, and refrigeration equipment.
What type of protection does the LI trip unit provide?
The fixed thermal and magnetic trip unit delivers long-time (L) protection against sustained overloads and instantaneous (I) protection for immediate short-circuit clearing.
Is the TEL136030WL a current-limiting circuit breaker?
Yes, it is a current-limiting breaker designed to quickly extinguish faults and reduce let-through energy, ensuring superior fault interruption for downstream equipment.
How is the TEL136030WL mounted in an enclosure?
It features a unit-mount, feed-thru connection type. This means it secures directly to the mounting pan or chassis and uses lugs on both the line and load sides, rather than plugging into a busbar.
