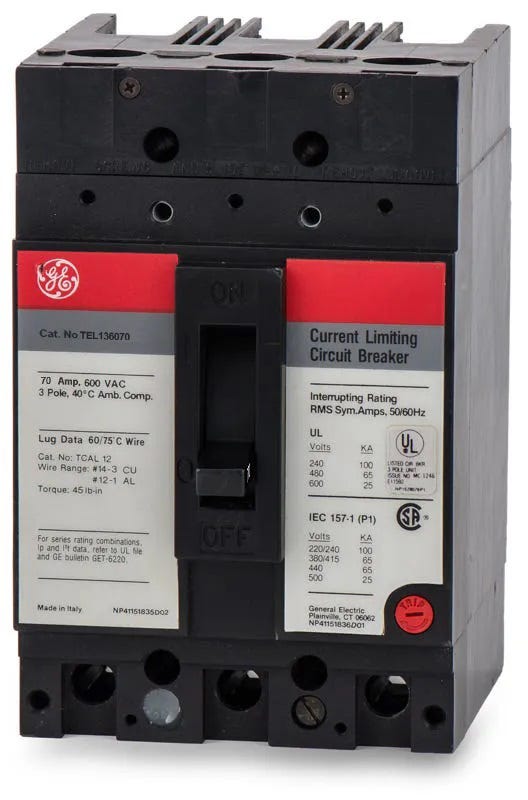

ABB / General Electric TEL136070 Molded Case Circuit Breaker
- 70A
- 3 Pole
- Unit Mount
ABB / General Electric
TEL136070
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TEL136070
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEL136070 - 70A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
ABB / General ElectricTEL136030WL
30A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTEL136020
20A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTEL136125
125A 3 Pole Molded Case Circuit Breaker
Description
Built for demanding industrial applications, the GE TEL136070 is a 3-pole, 70-amp molded case circuit breaker. It utilizes proven thermal-magnetic trip technology to deliver protection against overloads and short circuits. This E-frame breaker is engineered to mount into GE A-Series panelboards and motor control centers. With a high interrupting rating of 65 kAIC at 480VAC and current-limiting capabilities, it safely isolates faults to protect equipment.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEL136070 |
| Series | TEL |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | TEL |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 3/0 AWG (Cu), 1 AWG - 3/0 AWG (Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3 AWG (Cu), 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (Load Side) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Common Trip, Non-Interchangeable Trip, Trip-Free Mechanism |
Product FAQs
6 answersWhich panelboards and switchboards are compatible with the TEL136070 breaker?
This bolt-on E-frame breaker is designed for use in GE A-Series panelboards, GE Spectra switchboards, and compatible motor control centers.
What wire sizes and materials are accepted by the lugs on this breaker?
The factory lugs accept copper wire from 3 AWG to 3/0 AWG, and aluminum wire from 1 AWG to 3/0 AWG.
Can the TEL136070 be used in direct current (DC) applications?
Yes, this thermal magnetic breaker is rated for DC systems. It provides up to 10kAIC interrupting capacity at both 250VDC and 500VDC.
Why is this breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. Depending on the manufacturing date, the TEL136070 may feature either GE or ABB branding, but the physical dimensions and electrical specifications remain identical.
What does the TEL prefix indicate in the GE catalog number?
The TEL prefix designates a high-interrupting capacity E-frame breaker. It offers a higher fault current rating than standard-tier E-frame models, providing 65kAIC at 480VAC and 100kAIC at 240VAC.
Does this breaker feature adjustable trip settings?
No, the TEL136070 features a fixed thermal and fixed magnetic trip unit. It does not offer adjustable long-time or instantaneous trip dials.
