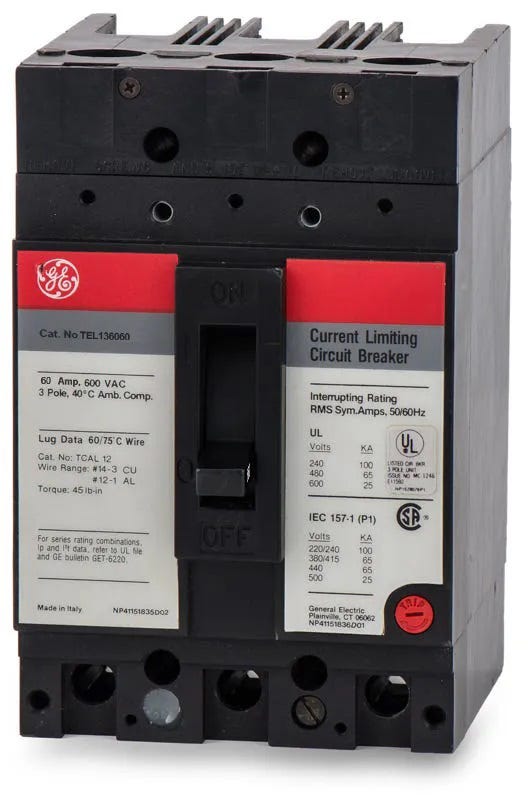

ABB / General Electric TEL136060 Molded Case Circuit Breaker
- 60A
- 3 Pole
- Unit Mount
ABB / General Electric
TEL136060
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TEL136060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEL136060 - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
ABB / General ElectricTEL134035WL
35A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTEL136030WL
30A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTEL136020
20A 3 Pole Molded Case Circuit Breaker
Description
Engineered for heavy-duty power distribution, this 60A E-Frame circuit breaker provides exceptional current-limiting performance. The thermal-magnetic trip unit ensures precise long-time and instantaneous (LI) protection for critical circuits. Designed for unit-mount configurations, it integrates seamlessly into GE A-Series panelboards, Spectra switchboards, and motor control centers. With a 100kAIC rating at 240V, it easily replaces standard TED or THED breakers in demanding applications.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEL136060 |
| Series | TEL |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | TEL |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Switchboards, Motor Control Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Lug Kits, Alarm Switch |
|---|---|
| Accessories | Lugs (Load Side) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip, Common Trip |
Product FAQs
8 answersIs the TEL136060 compatible with standard GE residential load centers?
No, this E-frame breaker is designed for commercial and industrial applications. It is compatible with GE A-Series panelboards, Spectra switchboards, and motor control centers, but will not fit in standard Q-Line residential load centers.
Can I use the TEL136060 to upgrade from a TED or THED breaker?
Yes, the TEL136060 shares the same E-frame physical dimensions as standard TED and THED breakers but offers a higher interrupting capacity. This makes it a suitable drop-in upgrade for systems requiring enhanced short-circuit protection.
Why is this breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions, meaning legacy GE circuit breakers like the TEL series are now manufactured and supported under the ABB brand umbrella. The physical design and panel compatibility remain unchanged.
What type of wire can be used with the factory lugs on this breaker?
The standard lugs on the TEL136060 are dual-rated for both copper and aluminum conductors. They accept wire sizes ranging from 14 AWG to 4 AWG. Ensure proper torque specifications are applied during installation.
How does the TEL136060 mount into a panelboard?
This is a unit-mount, bolt-on circuit breaker. It requires bolted connections to the busbar and is not compatible with plug-on or snap-in load centers.
Are the trip settings on the TEL136060 adjustable?
No, this breaker features a fixed thermal and fixed magnetic trip unit. Both the long-time overload and instantaneous short-circuit protection levels are factory-set and cannot be adjusted in the field.
Is this breaker suitable for direct current (DC) applications?
Yes, the TEL136060 carries a DC interrupting rating of 10kA at both 250VDC and 500VDC, allowing it to be used in specific direct current distribution systems.
Does the TEL136060 provide ground fault or arc fault protection?
No, this is a standard thermal-magnetic molded case circuit breaker designed for basic long-time and instantaneous (LI) overcurrent and short-circuit protection. It does not include built-in equipment ground fault (GFPE) or arc fault (AFCI) capabilities.
