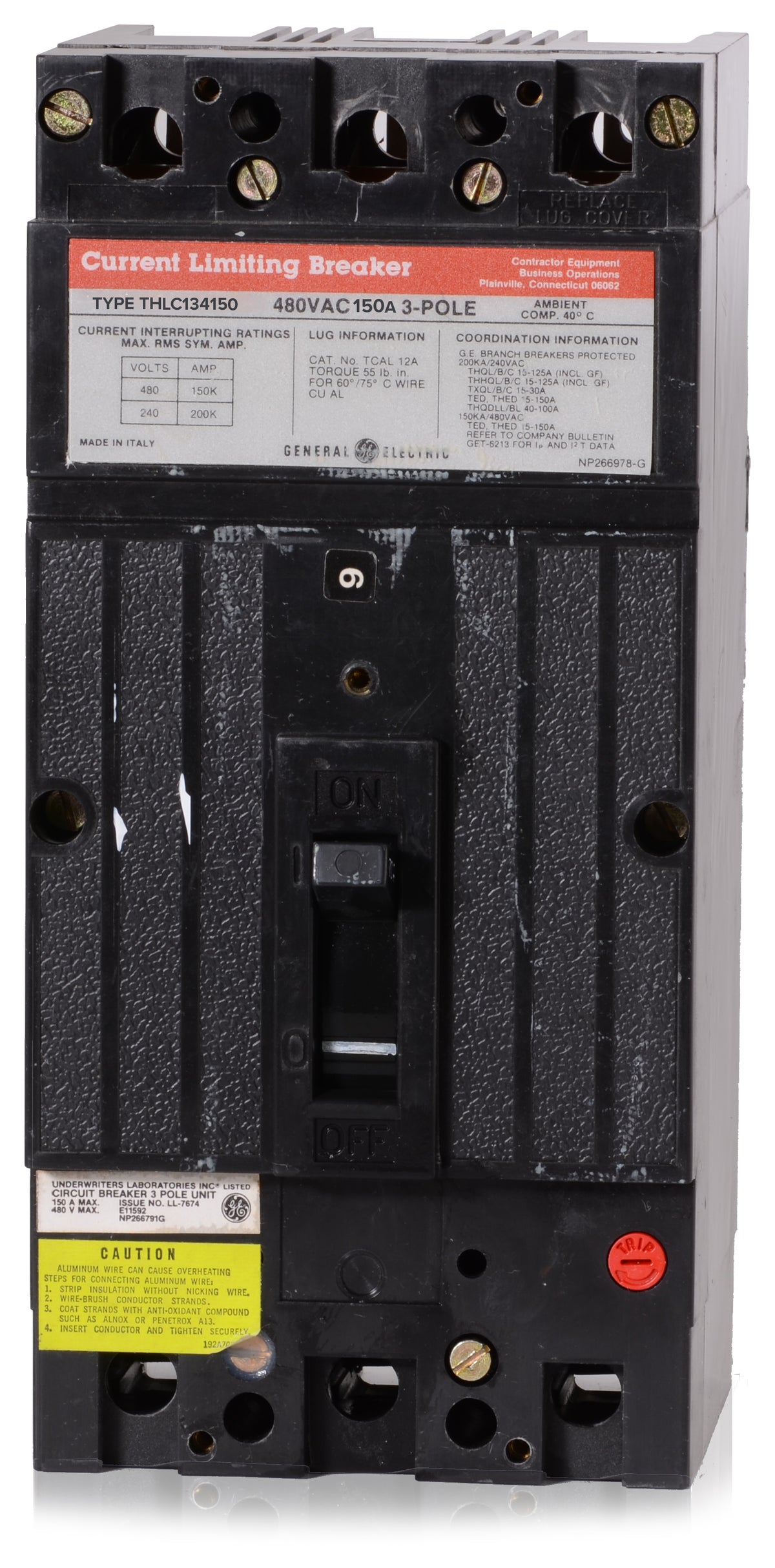

ABB / General Electric THLC134150 Molded Case Circuit Breaker
- 150A
- 3 Pole
- Bolt-On
ABB / General Electric
THLC134150
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THLC134150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THLC134150 - 150A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
ABB / General Electric THLC134150 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THLC134150 |
| Series | THLC |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 3/0 AWG (Cu), 1 AWG - 3/0 AWG (Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3 AWG (Cu) / 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included (TCAL12) |
| Standards | UL 489, NEMA AB-1 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, High Interrupting Capacity, HACR Rated, Common Trip, Trip-Free Mechanism |
| Special Features | Current Limiting |
Sold out
Quantity
ABB / General Electric THLC134150 - 150A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THLC134150-R |
| Series | THLC |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 3/0 AWG (Cu), 1 AWG - 3/0 AWG (Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3 AWG (Cu) / 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included (TCAL12) |
| Standards | UL 489, NEMA AB-1 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, High Interrupting Capacity, HACR Rated, Common Trip, Trip-Free Mechanism |
| Special Features | Current Limiting |
Similar Items
ABB / General ElectricTHLC234175
175A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHLC234125
125A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHLC234200
200A 3 Pole Molded Case Circuit Breaker
Description
The THLC134150 is a 3-pole, 150-amp current-limiting circuit breaker from GE's Q-Line family. Designed for commercial and industrial applications, it delivers robust thermal-magnetic protection with fixed thermal and adjustable magnetic trip settings. This bolt-on MCCB installs into GE A-Series panelboards, Spectra panelboards, switchboards, and motor control centers. Rated for an exceptional 200 kAIC at 480VAC, it rapidly clears high-level short circuits to minimize potential damage.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THLC134150-R |
| Series | THLC |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 3/0 AWG (Cu), 1 AWG - 3/0 AWG (Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3 AWG (Cu) / 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included (TCAL12) |
| Standards | UL 489, NEMA AB-1 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, High Interrupting Capacity, HACR Rated, Common Trip, Trip-Free Mechanism |
| Special Features | Current Limiting |
Product FAQs
4 answersWhat equipment is compatible with the THLC134150 circuit breaker?
This breaker is designed for installation in GE A-Series panelboards, GE Spectra panelboards, switchboards, and motor control centers.
What wire sizes are accepted by the terminals on this breaker?
The included lugs accept 3 AWG to 3/0 AWG copper conductors and 1 AWG to 3/0 AWG aluminum conductors.
How is the trip unit configured on this model?
It features a thermal-magnetic trip unit with a fixed thermal element for long-time protection and an adjustable magnetic element for instantaneous short-circuit protection.
Does this breaker provide current-limiting protection?
Yes, it is a current-limiting molded case circuit breaker designed to restrict let-through current and energy during high-fault conditions.
