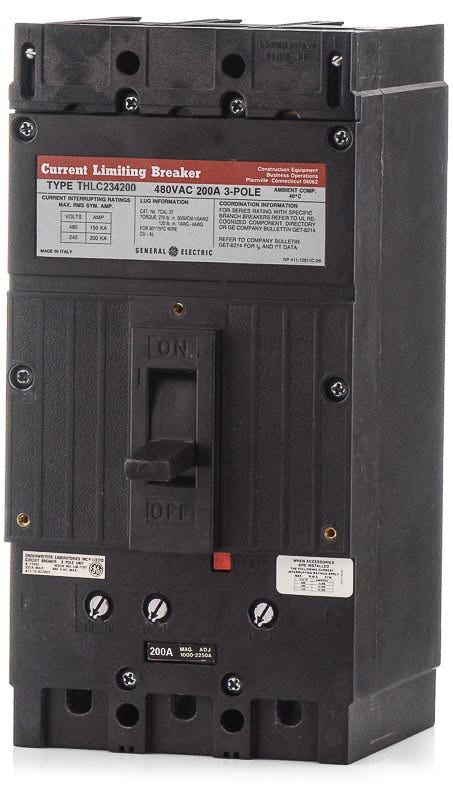

ABB / General Electric THLC234200 Molded Case Circuit Breaker
- 200A
- 3 Pole
- Bolt-On
ABB / General Electric
THLC234200
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THLC234200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THLC234200 - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
ABB / General ElectricTHLC234175
175A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHLC236175
175A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHLC234125
125A 3 Pole Molded Case Circuit Breaker
Description
Part of the Q-Line family, the GE THLC234200 is a 3-pole, 200A current-limiting molded case circuit breaker designed for heavy-duty commercial and industrial applications. It installs into GE switchboards and motor control centers using a standard bolt-on connection. Featuring a thermal-magnetic trip unit with long-time and instantaneous functions, this breaker delivers exceptional fault protection with a massive 200kAIC rating at both 240V and 480V to safely isolate downstream equipment.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THLC234200 |
| Series | THLC |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480VAC |
| Frame Type | THLC2 |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, High Interrupting Capacity, Non-Interchangeable Trip |
| Special Features | Current Limiting |
