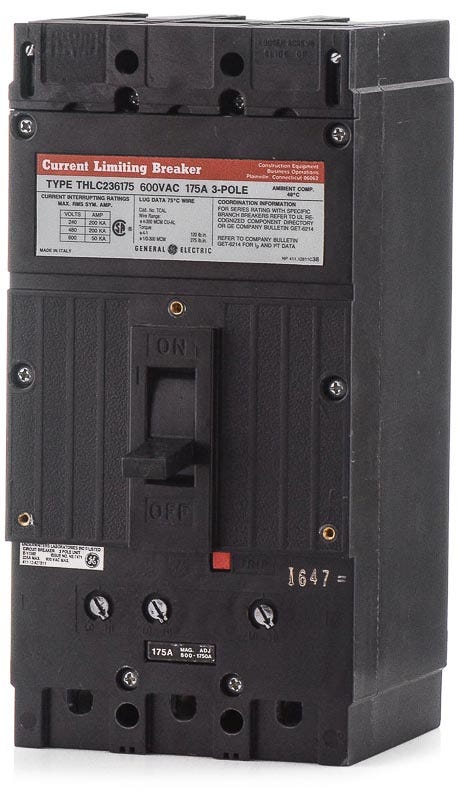

ABB / General Electric THLC236175 Molded Case Circuit Breaker
- 175A
- 3 Pole
- Bolt-On
ABB / General Electric
THLC236175
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THLC236175
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THLC236175 - 175A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items

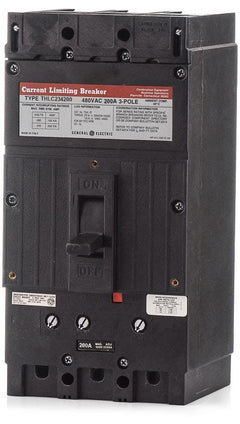

ABB / General ElectricTHLC234200
200A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHLC234225
225A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHLC234125
125A 3 Pole Molded Case Circuit Breaker
Description
Engineered for heavy-duty power systems, the GE THLC236175 is a 3-pole, 175A current-limiting circuit breaker. By cutting off severe short circuits early, it reduces the risk of damage to downstream equipment. This bolt-on MCCB is manufactured to integrate with GE switchboards and motor control centers, providing excellent reliability in high-demand environments. With an exceptional 200 kAIC rating at 480V, the Q-Line breaker offers top-tier fault clearance and precise LI protection.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THLC236175-R |
| Series | THLC |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480VAC, 50kA @ 600VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Lug Kits, Alarm Switch |
|---|---|
| Accessories | Load Lugs (TCAL25) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, High Interrupting Capacity, HACR Rated, Non-Interchangeable Trip, Common Trip, Trip-Free Mechanism |
| Special Features | Current Limiting |
Product FAQs
6 answersWhat frame size does the THLC236175 belong to?
The THLC236175 is part of the GE THLC2 frame family, which encompasses current-limiting molded case circuit breakers ranging from 125A to 225A.
What does the WL suffix mean if I see this breaker listed as THLC236175WL?
The WL suffix in the GE catalog number indicates that the circuit breaker is supplied with factory-installed line and load lugs.
How does the current-limiting design of the THLC236175 protect downstream equipment?
Current-limiting breakers are engineered to clear severe short circuits extremely fast, typically within a half-cycle. This significantly reduces the peak let-through current and energy, minimizing thermal and mechanical stress on downstream electrical components.
Can the THLC236175 be installed in a standard residential load center?
No, the THLC236175 is a heavy-duty, bolt-on molded case circuit breaker designed specifically for commercial and industrial GE switchboards and motor control centers. It is not compatible with standard residential plug-on panels.
Are the trip units on the THLC236175 interchangeable?
No, the THLC236175 features a non-interchangeable thermal-magnetic trip unit. The long-time and instantaneous trip settings are fixed at the factory and cannot be modified or swapped in the field.
Is the GE THLC236175 considered a legacy circuit breaker?
Yes, the THLC236175 is a legacy GE circuit breaker. It is typically sourced to maintain, repair, or expand existing industrial GE switchboards and motor control centers rather than for new system designs.
