ABB / General Electric THQB1125ST1 Miniature Circuit Breaker
- 25A
- 1 Pole
- Bolt-On
ABB / General Electric
THQB1125ST1
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB1125ST1
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

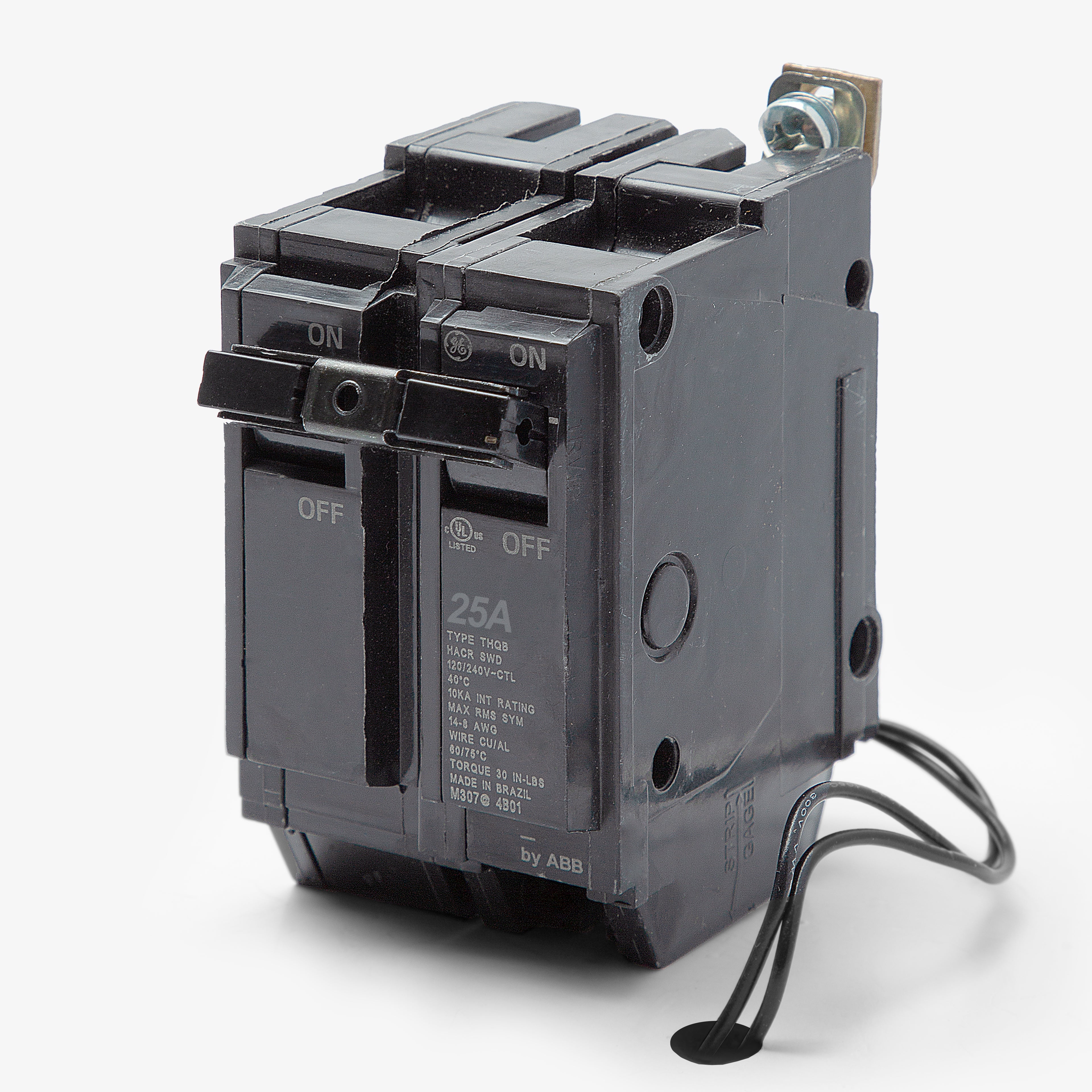

ABB / General Electric THQB1125ST1 - 25A 1 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQB1120ST1
20A 1 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB1115ST1
15A 1 Pole Miniature Circuit Breaker
Description

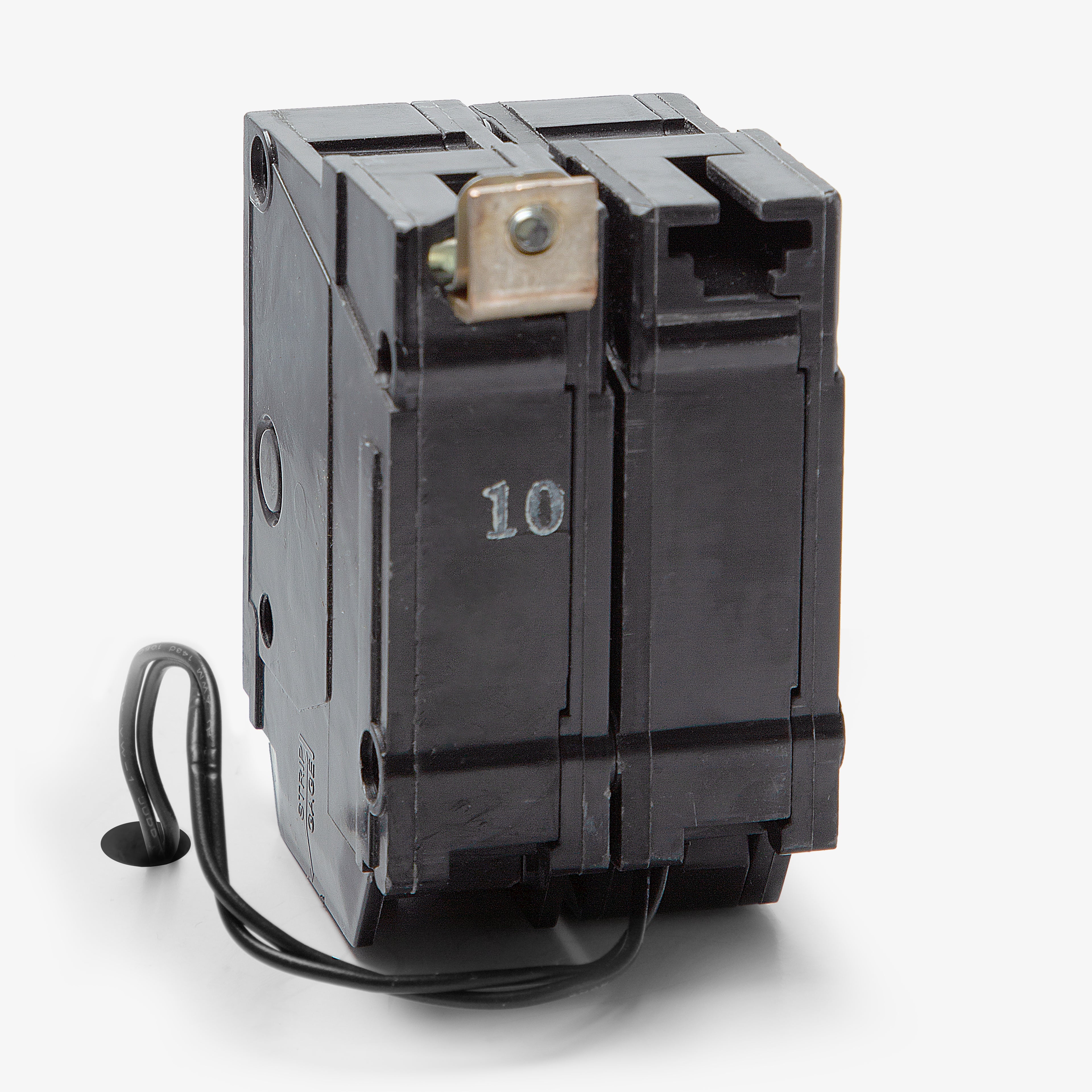

Built to accommodate automated safety systems, this 25A single-pole breaker includes an integrated 120VAC shunt trip for remote circuit disconnection. It fastens securely into GE A-Series panelboards, providing a robust mechanical connection for commercial environments. Along with its 10kAIC interrupt capacity, the device is HACR rated to support dedicated HVAC equipment and refrigeration loads safely.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | THQB |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |

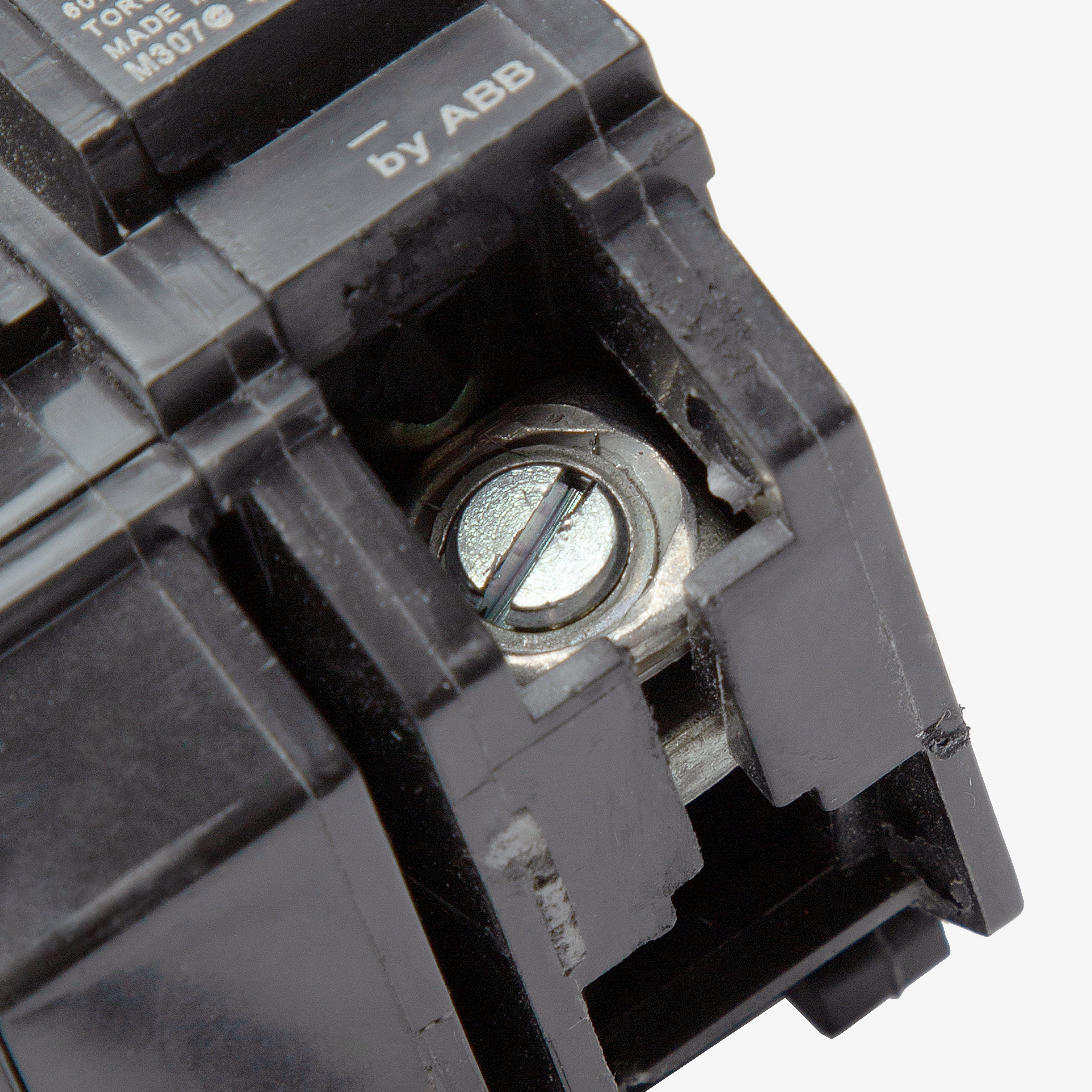

| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (120VAC) |
| Standards | CSA C22.2 No. 5, HACR, UL 489, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break |
Product FAQs
4 answersWhat panelboards accept the THQB1125ST1 circuit breaker?
This breaker is designed to bolt directly into GE A-Series panelboards and AQ lighting panels.
What does the ST1 suffix mean on this GE circuit breaker?

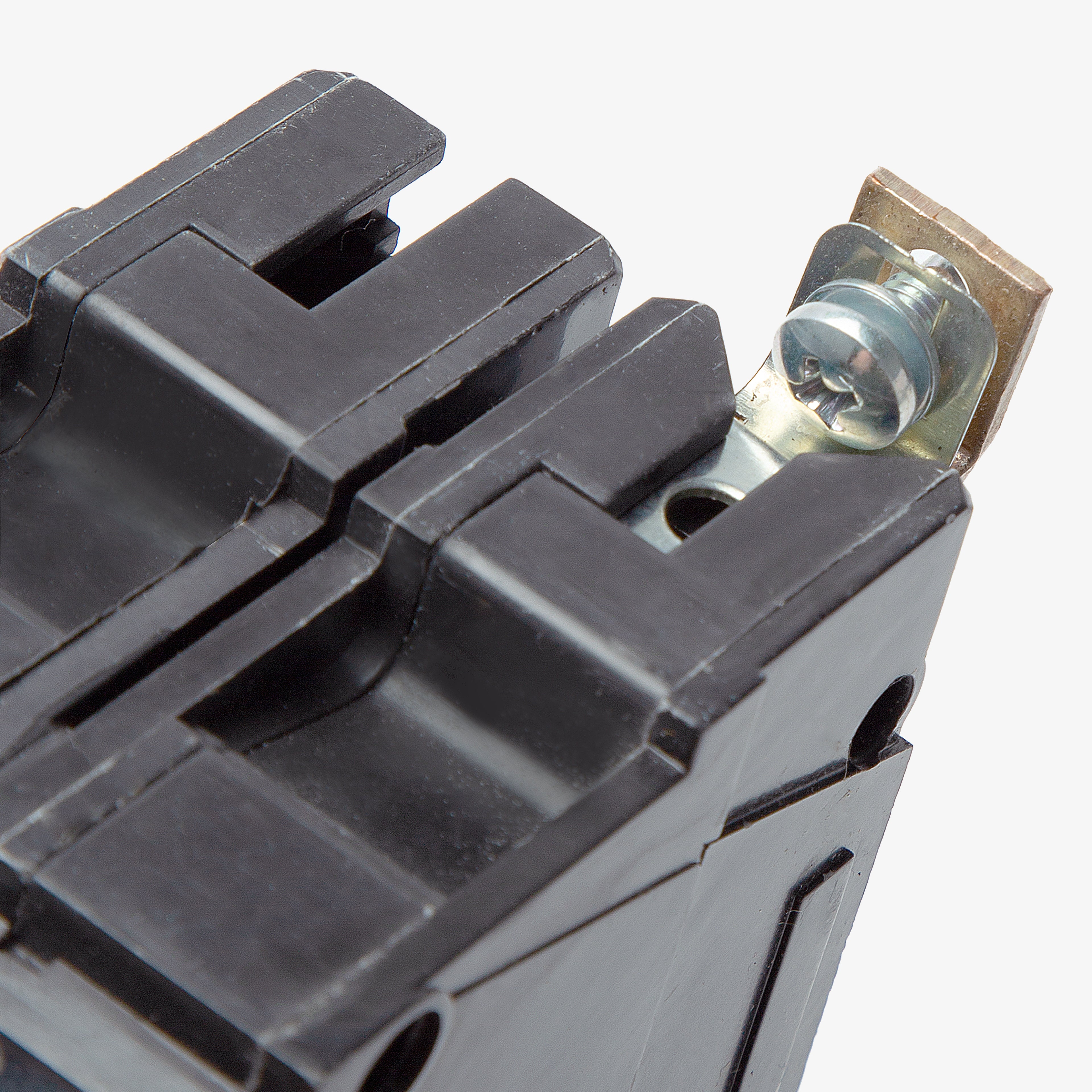

The ST1 suffix indicates the breaker includes a factory-installed 120VAC shunt trip mechanism. This allows the breaker to be tripped remotely for emergency stops or automated safety system integration.
Is the THQB1125ST1 rated for HVAC equipment?
Yes, this breaker carries an HACR certification, making it suitable for heating, air conditioning, and refrigeration circuits.
Are ABB and General Electric THQB breakers interchangeable?
Yes. ABB acquired GE Industrial Solutions, and the breaker lines continue under the exact same catalog numbers. A THQB1125ST1 is the same product whether the label reads GE, ABB, or GE by ABB.
