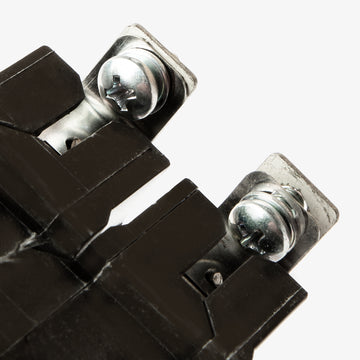

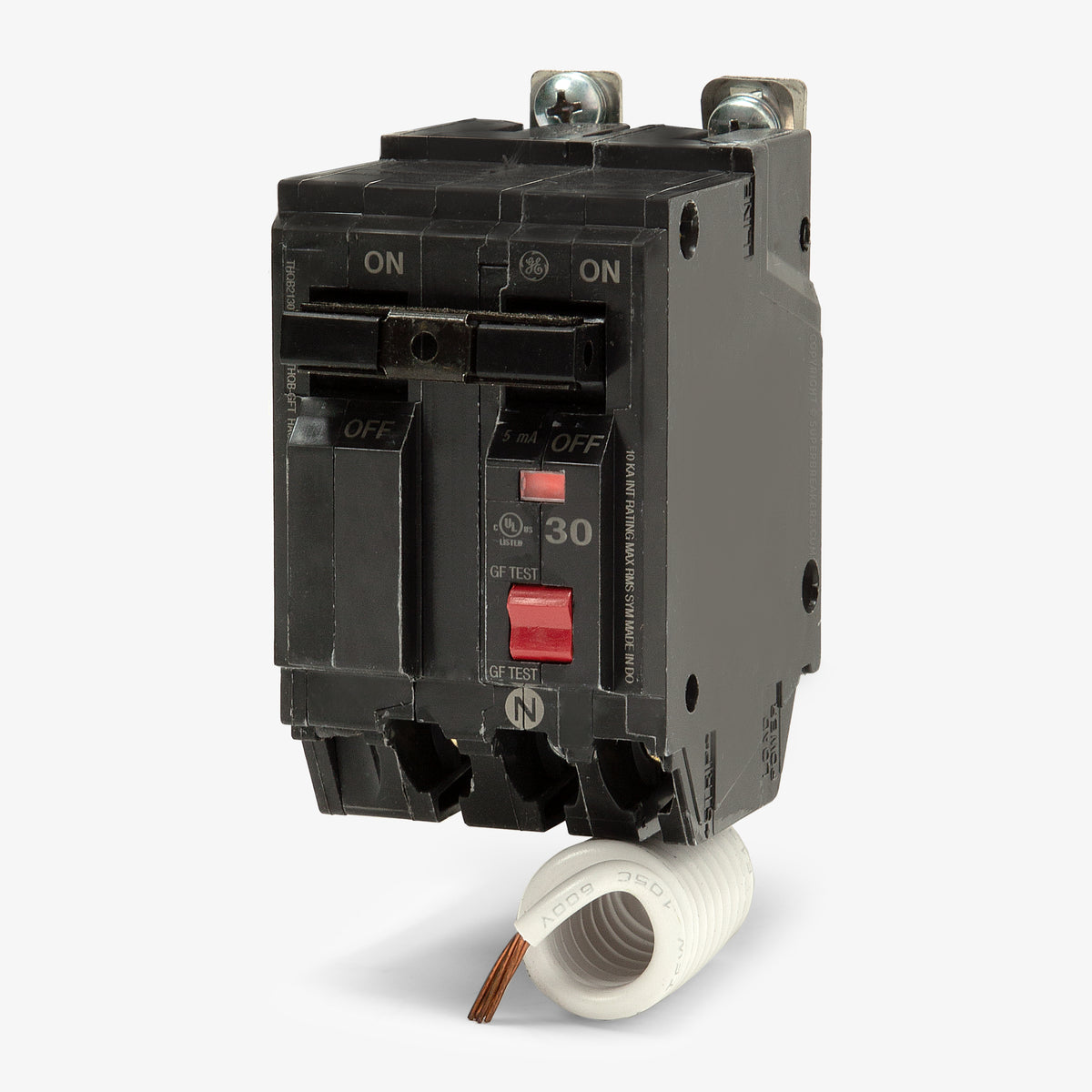

ABB / General Electric THQB2130GFT GFCI Miniature Circuit Breaker
- 30A
- 2 Pole
- Bolt-On
ABB / General Electric
THQB2130GFT
GFCI Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB2130GFT
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB2130GFT - 30A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQB2140GFT2
40A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQB2120GFT
20A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQB2120GF
20A GFCI Miniature Circuit Breaker
Description
Built for residential and commercial applications, the GE THQB2130GFT delivers reliable 5mA ground fault protection for personnel. This 30-amp, two-pole miniature circuit breaker features a thermal-magnetic trip mechanism to handle standard overloads and short circuits. Engineered for bolt-on installation, it mounts into GE A-Series panelboards and AQ lighting panels.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | THQB |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment, Shunt Trip, Auxiliary Switch |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489, UL 943 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Self-Test, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Product FAQs
6 answersWhich panelboards are compatible with the THQB2130GFT circuit breaker?
This bolt-on breaker is designed specifically for GE A-Series panelboards, GE AQ lighting panels, and GE Pro-Stock panelboards. It will not fit standard residential plug-in load centers.
What does the GFT suffix indicate on this GE circuit breaker?
The GFT suffix designates a Ground Fault Circuit Interrupter (GFCI) with a 5mA trip sensitivity designed for personnel protection. It also indicates the breaker features an automatic self-test function to ensure ongoing safety compliance.
What does the LIG trip function code stand for on this breaker?
The LIG designation means the thermal-magnetic trip unit provides Long-Time (thermal overload) and Instantaneous (magnetic short-circuit) protection, alongside Ground-Fault (5mA leakage) sensing capabilities.
How is the neutral connection handled on this GFCI breaker?

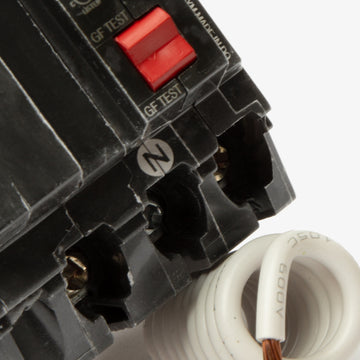

The breaker includes a coiled pigtail neutral wire that must be connected directly to the panelboard neutral bar. This physical neutral connection is required to power the internal ground fault detection circuitry.
What level of ground fault protection does the THQB2130GFT provide?
It provides Class A personnel protection with a 5mA trip threshold. This makes it suitable for wet or damp locations where the National Electrical Code (NEC) requires ground fault protection for people, unlike the 30mA threshold (GFEP) used strictly for equipment protection.
Why might my replacement THQB2130GFT breaker have ABB branding?
ABB acquired General Electric Industrial Solutions in 2018. Breakers manufactured recently may arrive in ABB packaging or feature the ABB logo, but they remain exact, fully compatible replacements for older GE-branded Q-Line installations.
