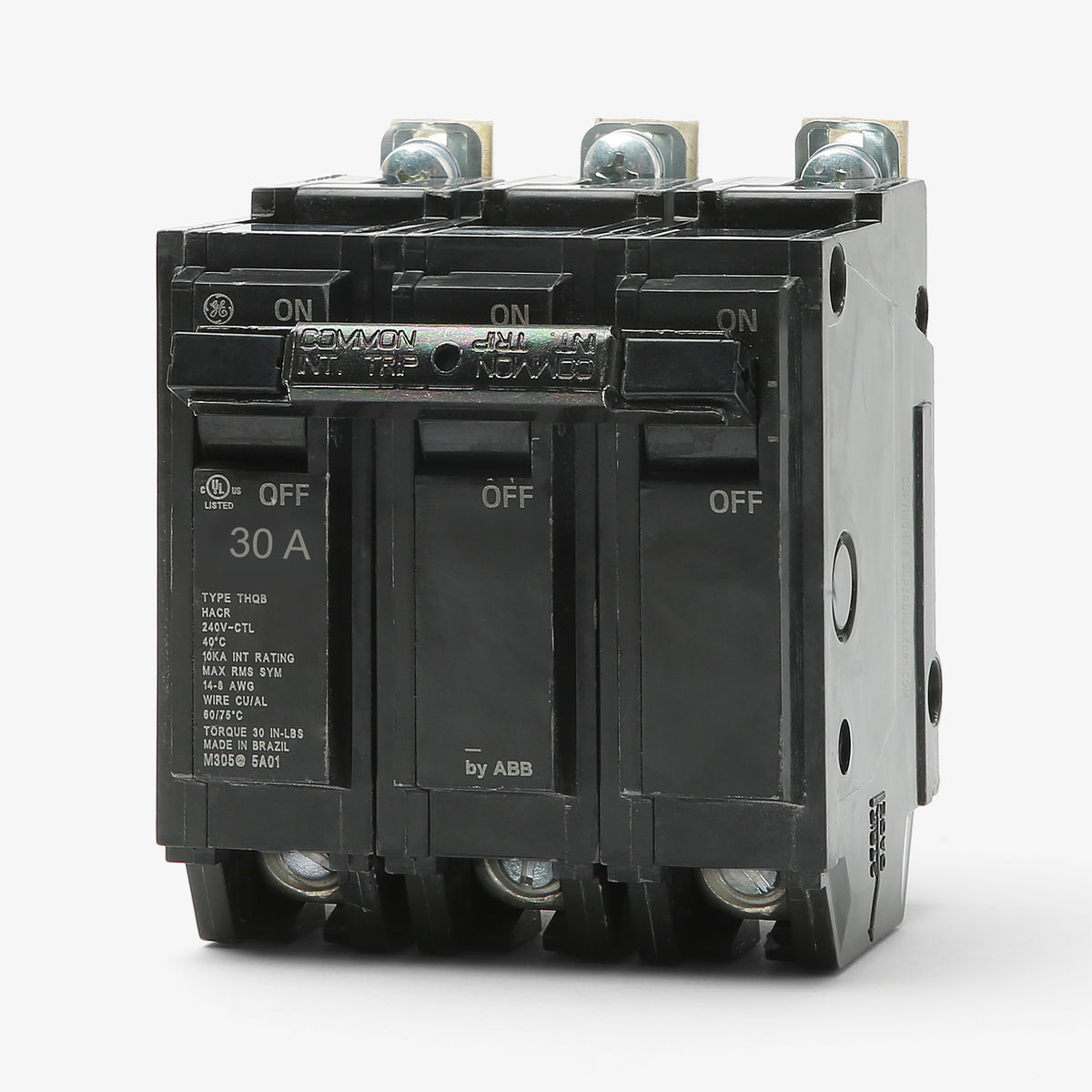

ABB / General Electric THQB32030 Miniature Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
ABB / General Electric
THQB32030
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB32030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB32030 - 30A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQB32030 - 30A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB32030 |
| Series | THQB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break |
Sold out
Quantity
ABB / General Electric THQB32030 - 30A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB32030-R |
| Series | THQB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break |
Similar Items
ABB / General ElectricTHQB32035
35A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB32035ST1
35A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB32025
25A 3 Pole Miniature Circuit Breaker
Description
Built for robust electrical distribution, this 30A miniature circuit breaker provides essential overcurrent and short-circuit protection. The three-pole commercial device utilizes a quick-make, quick-break mechanism to ensure reliable operation under load. Installation is straightforward with a bolt-on mounting style designed specifically for GE A-Series panelboards and AQ lighting panels. This HACR-rated unit delivers a 10kAIC interrupting capacity at 240VAC with a common trip function.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB32030 |
| Series | THQB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break |
Product FAQs
9 answersCan I install this bolt-on breaker in a residential plug-on load center?
No. The THQB32030 features a bolt-on mounting style designed exclusively for commercial GE A-Series panelboards and AQ lighting panels. It will not fit in load centers that require THQL plug-on circuit breakers.
Can I use this 30A THQB breaker with aluminum wiring?

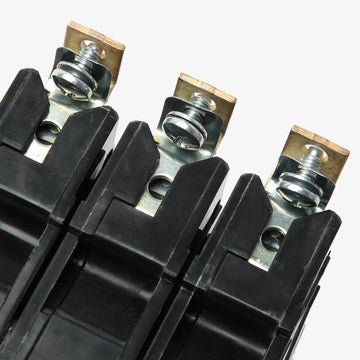

Yes. The built-in box lugs on the THQB32030 are dual-rated for both copper and aluminum conductors. The terminals accept 14 to 8 AWG copper wire or 12 to 8 AWG aluminum wire.
Are there line and load restrictions when installing this breaker?
No. The THQB32030 is suitable for reverse feed applications. When back-fed as a main breaker, National Electrical Code (NEC) guidelines require an approved breaker hold-down kit.
Does this bolt-on breaker require a separate mounting bracket?

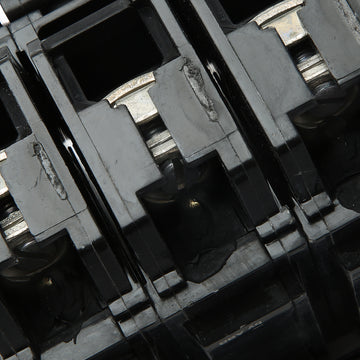

No. The THQB32030 includes the integrated mounting clip and bolt-on terminal connections required to secure it directly to the panelboard bus. No external bracket kit is needed.
Is there any difference between the ABB THQB32030 and the General Electric THQB32030?
No. ABB completed the acquisition of GE Industrial Solutions in 2018. The circuit breakers are identical in form, fit, function, and UL listing, but may carry either the GE or ABB logo depending on the manufacturing date.
Is there a direct replacement available with a higher interrupting rating?
Yes. If your panel requires more than the 10kAIC provided by the THQB32030, the THHQB32030 is the direct, high-interrupting alternative. It offers a 22kAIC rating at 240VAC while maintaining the exact same bolt-on footprint.
Is this 30A breaker suitable for HVAC motor loads?
Yes. The THQB32030 is UL listed as Heating, Air Conditioning, and Refrigeration (HACR) rated, making it fully compliant for protecting motor loads in commercial HVAC systems.
Does this breaker carry a Switching Duty (SWD) or High-Intensity Discharge (HID) rating?
No. Under standard UL 489 testing, SWD and HID ratings are typically restricted to 15A and 20A circuit breakers for lighting circuits. This 30A breaker does not carry those specific designations.
How does the trip mechanism function during an electrical fault?
The THQB32030 utilizes a non-interchangeable, thermal-magnetic trip unit with fixed Long-Time and Instantaneous functions. The thermal element safely trips the breaker during sustained overloads, while the magnetic element opens the circuit instantly during a short-circuit event.
