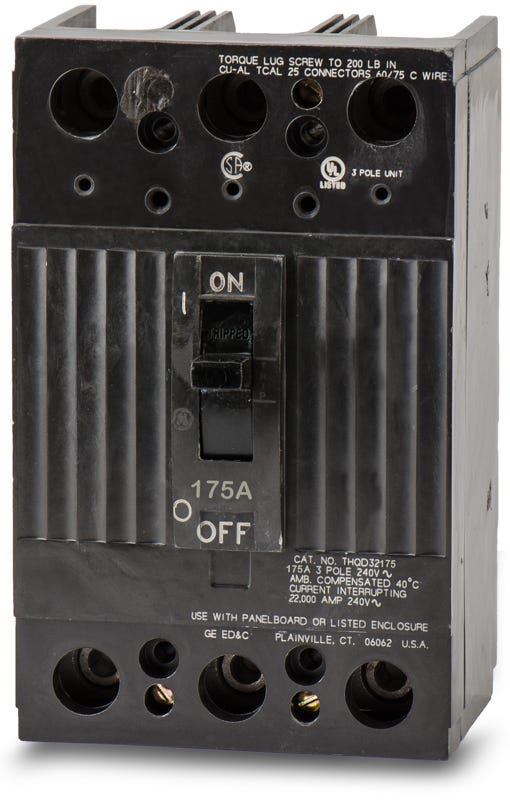

ABB / General Electric THQD32175WL Molded Case Circuit Breaker
- 175A
- 3 Pole
- Unit Mount
ABB / General Electric
THQD32175WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQD32175WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQD32175WL - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQD32175WL - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQD32175WL |
| Series | THQD |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Line & Load Lugs (TCAL25) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, High Interrupting Capacity |
Quantity
ABB / General Electric THQD32175WL - 175A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | THQD |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Line & Load Lugs (TCAL25) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, High Interrupting Capacity |
Similar Items

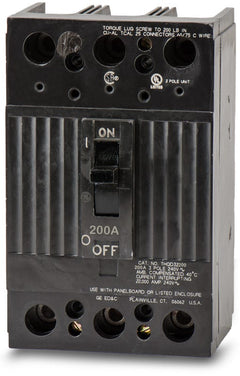

ABB / General ElectricTHQD32200WL
200A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQD32150
150A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQD32150WL
150A 3 Pole Molded Case Circuit Breaker
Description
Operating as a versatile overcurrent solution, the GE THQD32175WL is a 175A, three-pole molded case circuit breaker. It utilizes a proven thermal-magnetic trip unit to deliver reliable protection for commercial networks. Unlike standard bolt-on models, this unit-mount breaker is designed for flexible installation within standalone enclosures. The "WL" designation indicates that it comes factory-equipped with both line and load lugs, streamlining the wiring process for installers.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQD32175WL |
| Series | THQD |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Line & Load Lugs (TCAL25) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, High Interrupting Capacity |
Product FAQs
8 answersWhat does the WL suffix mean on the THQD32175WL part number?
The WL designation indicates that the circuit breaker is factory-equipped with both line and load lugs for a cable-in/cable-out configuration.
Which GE panelboards accept the THQD32175WL circuit breaker?
This Q-Line breaker is compatible with GE A-Series and Spectra Series panelboards, as well as standard standalone enclosures.
What wire sizes are compatible with the lugs on this 175A breaker?
The factory-installed lugs accept copper or aluminum wire ranging from 4 AWG to 300 kcmil.
Is the THQD32175WL circuit breaker HACR rated?
Yes, it carries an HACR rating, making it suitable for use with heating, air conditioning, and refrigeration equipment.
Why might my THQD32175WL breaker arrive with ABB branding?
Following ABB's acquisition of GE Industrial Solutions, these Q-Line breakers are manufactured under the ABB name. The physical dimensions, electrical ratings, and compatibility remain identical to the legacy GE versions.
Do I need additional hardware to mount this breaker in a panelboard?
Yes, when installing this unit-mount breaker into GE Spectra or A-Series panelboards, you will typically need a dedicated mounting hardware kit, such as the AMC6QD or TQD1K twin mount kits, depending on your specific panel type.
Are the trip settings adjustable on the THQD32175WL?
No, this breaker features a fixed thermal-magnetic trip unit with non-interchangeable long-time and instantaneous (LI) protection settings.
Does this 3-pole breaker feature a common trip mechanism?
Yes, it includes an internal common trip mechanism that ensures all three poles disconnect simultaneously if an overcurrent or short-circuit fault is detected on any single phase.
