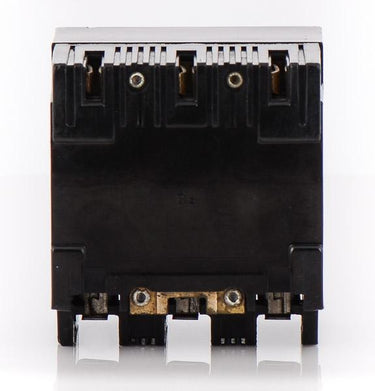

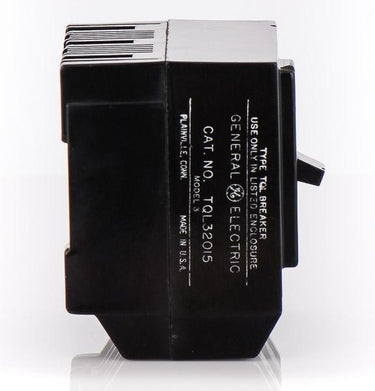

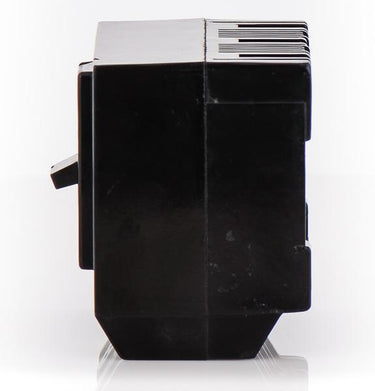

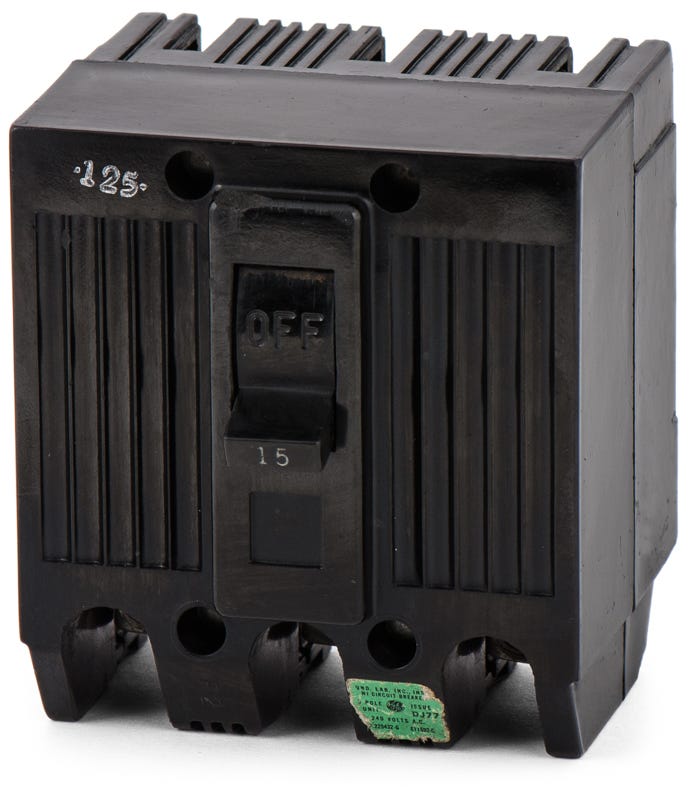

ABB / General Electric TQL32015 Molded Case Circuit Breaker
- 15A
- 3 Pole
- Plug-On
ABB / General Electric
TQL32015
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TQL32015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TQL32015 - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
ABB / General ElectricTHQC32015WL
15A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTE132015
15A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
Description
Built for residential and commercial use, this 15-amp MCCB delivers consistent thermal magnetic trip performance. The three-pole device is a staple in the GE Q-Line series. Installs into PowerMark Gold load centers, GE A-Series panelboards, and standard lighting panels. Utilizing a simple plug-on mounting style, this breaker is a predecessor to the upgraded THQL32015 substitute. Featuring a 5kAIC interrupting capacity at 240VAC, it includes non-interchangeable trip elements and common trip.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQL32015-R |
| Series | TQL |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 5kA @ 120VAC, 5kA @ 240VAC, 5kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, PowerMark Gold Load Centers, GE Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Standards | HACR, UL 489 |
| Approval | UL |
| Temp Rating | 10C to 50C |
| Construction Features | Common Trip, Quick-Make/Quick-Break, Reverse Feed |
Product FAQs
6 answersWhich GE load centers and panelboards accept the TQL32015 breaker?
This 3-pole plug-on breaker is compatible with GE A-Series panelboards, PowerMark Gold load centers, and GE lighting panels. It requires three standard 1-inch spaces on the panel bus.
Is the TQL32015 still manufactured, or is there a modern replacement?
The legacy TQL series is obsolete and no longer in production. The modern equivalent is the GE THQL32015, which shares the exact same plug-on footprint but upgrades the interrupting capacity to the current 10 kA standard.
What is the maximum interrupting capacity for the TQL32015?
It is rated for a maximum of 5 kA at 240V AC. Because modern electrical codes often require a minimum of 10 kA for residential and commercial panels, verify your system's available fault current before installing this legacy breaker.
What wire gauges are approved for the TQL32015 box lug terminals?
The lugs accept 14 to 8 AWG copper wire or 12 to 8 AWG aluminum wire. Ensure proper torque is applied during installation to maintain a secure connection and prevent terminal overheating.
Does the TQL32015 require bolt-on hardware for installation?
No, this is a plug-on molded case circuit breaker. It connects directly to the bus stabs in compatible GE load centers without the need for mounting screws or bolts, simplifying the installation process.
How does the thermal-magnetic trip unit in the TQL32015 operate?
The fixed thermal-magnetic mechanism provides dual protection: a bimetallic strip responds to prolonged overloads (Long-Time protection), while an electromagnetic coil instantly trips the breaker during severe short circuits (Instantaneous protection).
