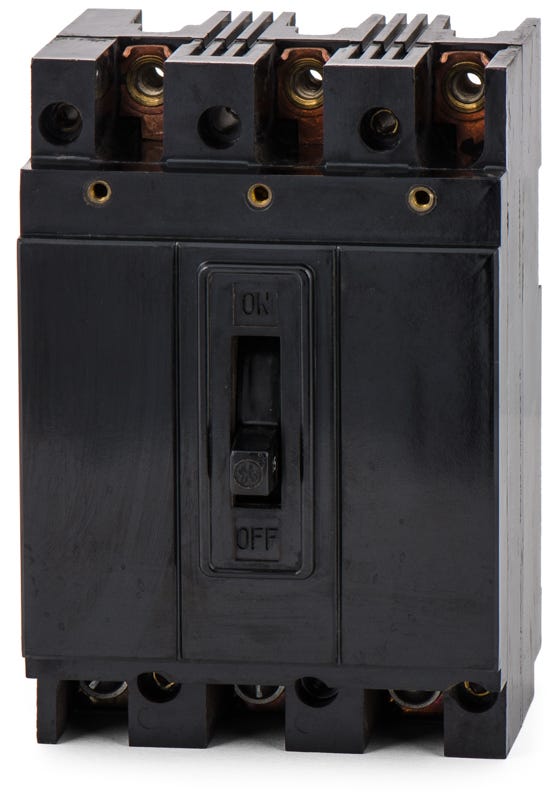

ABB / General Electric TE32015 Molded Case Circuit Breaker
- 15A
- 3 Pole
- Bolt-On
ABB / General Electric
TE32015
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TE32015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TE32015 - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
20A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTE132020
20A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
Description
Delivering reliable overcurrent protection, this 15A, 3-pole GE breaker utilizes a non-interchangeable thermal-magnetic trip mechanism. It is engineered to support commercial power distribution networks. The bolt-on configuration ensures a stable connection within GE A-Series panelboards. Facility managers will note this unit is replaced by the TEB132015 cross-reference. Rated for 10kAIC at 240VAC, the device features a quick-make/quick-break mechanism and is fully HACR rated.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TE32015-R |
| Series | TE |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | TE3 |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Reverse Feed, HID Rated |
Product FAQs
5 answersWhat panelboards are compatible with the TE32015 circuit breaker?
This bolt-on breaker is engineered specifically for installation in GE A-Series panelboards.
Is there a direct replacement or cross-reference for the TE32015?
Yes, the TEB132015 is commonly used as a direct cross-reference and replacement for this older TE-frame model.
Is the TE32015 suitable for use with heating, air conditioning, and refrigeration equipment?
Yes, this breaker is fully HACR rated, making it suitable for commercial HVACR applications requiring dedicated overcurrent protection.
Can the TE32015 be used in direct current (DC) applications?
Yes, while primarily used in 240VAC systems, this breaker is also rated for DC applications, providing an interrupting capacity of 5kAIC at 250VDC.
What type of trip mechanism does the TE32015 use?
It features a non-interchangeable thermal-magnetic trip unit with fixed long-time and instantaneous (LI) trip functions, utilizing a quick-make/quick-break mechanism to ensure reliable overcurrent protection.
