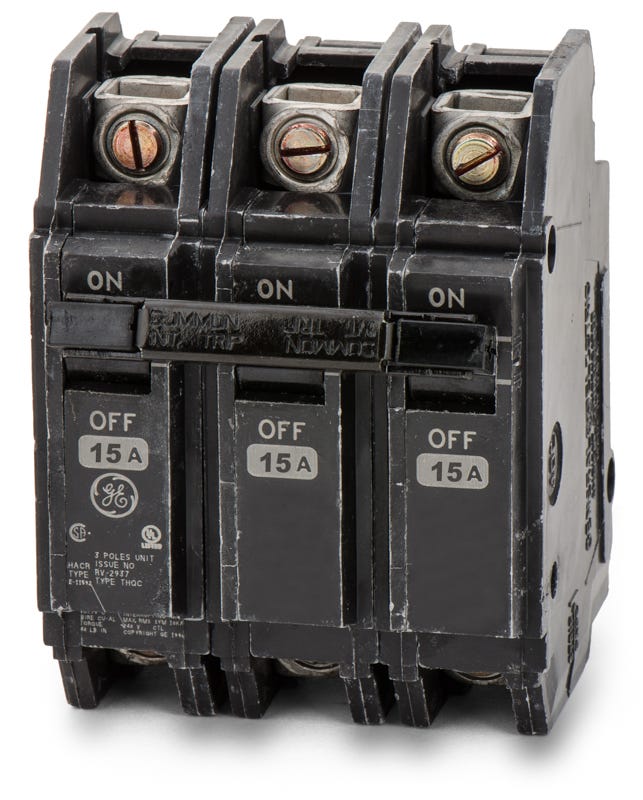

ABB / General Electric THQC32015WL Molded Case Circuit Breaker
- 15A
- 3 Pole
- DIN Rail
ABB / General Electric
THQC32015WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQC32015WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQC32015WL - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQC32015WL - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC32015WL |
| Series | THQC |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | DIN Rail |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | 35mm DIN Rail, OEM Panels, Enclosures |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Visual Trip Indicator, Reverse Feed, Non-Interchangeable Trip |
Quantity
ABB / General Electric THQC32015WL - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC32015WL-R |
| Series | THQC |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | DIN Rail |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | 35mm DIN Rail, OEM Panels, Enclosures |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Visual Trip Indicator, Reverse Feed, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTHQC32025WL
25A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC32030WL
30A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC32040WL
40A 3 Pole Molded Case Circuit Breaker
Description
Part of the Q-Line family by GE, the THQC32015WL is a 3-pole, 15-amp molded case circuit breaker designed for robust electrical distribution. It is engineered for versatile application across commercial and industrial environments. This breaker features a lug-to-lug terminal configuration and mounts onto standard 35mm DIN rails. It integrates seamlessly into OEM panels and compatible enclosures.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC32015WL |
| Series | THQC |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | DIN Rail |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | 35mm DIN Rail, OEM Panels, Enclosures |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Visual Trip Indicator, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
7 answersWhat does the WL suffix mean on the THQC32015WL breaker?
The WL suffix indicates that the breaker comes with factory-installed line and load lugs. This feed-thru configuration allows for direct wire connections on both sides without requiring a busbar connection.
How is the THQC32015WL circuit breaker mounted?
This breaker is designed to snap directly onto a standard 35mm DIN rail. It is commonly used in OEM control panels, motor control cabinets, and compatible enclosures that utilize DIN rail mounting.
What is the maximum wire size accepted by the lugs on this 15A breaker?
The factory-installed lugs accept a maximum wire size of 8 AWG. The acceptable wire range is 14 to 8 AWG for copper conductors and 12 to 8 AWG for aluminum conductors.
Can I use the THQC32015WL in a standard GE load center?
No. The THQC series is a lug-to-lug, DIN rail mounted breaker intended for OEM panels and control cabinets. Standard GE residential load centers require plug-in (THQL) or bolt-on (THQB) breakers.
What is the difference between THQC, THQL, and THQB breakers?
All three are part of the GE Q-Line family but feature different mounting styles. THQC breakers are lug-to-lug for DIN rail mounting, THQL breakers are plug-in for standard load centers, and THQB breakers are bolt-on for commercial lighting panels.
Does this breaker feature a common trip mechanism?
Yes. As a 3-pole breaker, it features an internal common trip mechanism. If an overcurrent or short circuit occurs on any single phase, all three poles will trip simultaneously to safely disconnect the entire circuit.
What does the LI trip function code indicate on this breaker?
The LI designation means the breaker utilizes a thermal-magnetic trip unit with Long-Time (thermal) and Instantaneous (magnetic) protection. The thermal and magnetic trip points are fixed and non-adjustable.
