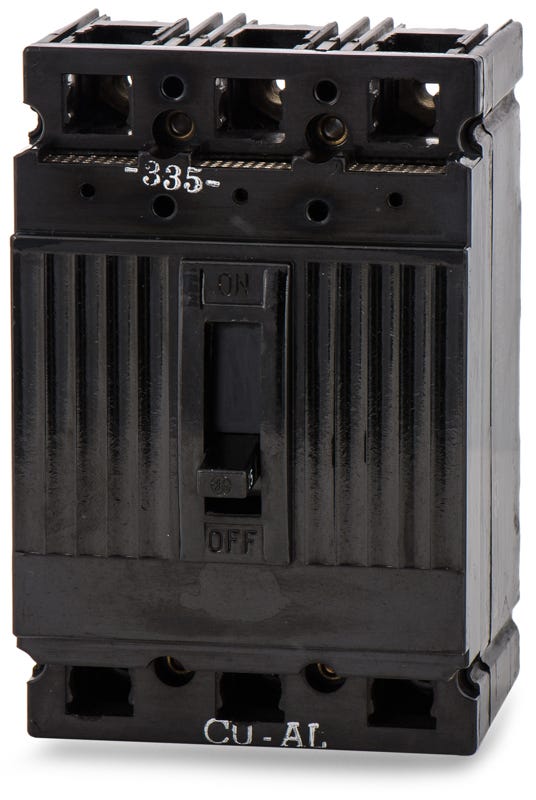

ABB / General Electric TE132015 Molded Case Circuit Breaker
- 15A
- 3 Pole
- Bolt-On
ABB / General Electric
TE132015
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TE132015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TE132015 - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
20A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTE132020
20A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial power distribution, this 15A molded case circuit breaker utilizes a fixed thermal-magnetic trip mechanism. It delivers precise long-time and instantaneous protection against electrical faults up to 10kA at 240VAC. This three-pole unit bolts firmly into GE A-Series panelboards, providing a stable connection for demanding environments. It features a common trip configuration and load-side lugs. Fully HACR rated, this Q-Line breaker is replaced by the TEB132015 series.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TE132015-R |
| Series | TE |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | TE |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | HACR, UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Reverse Feed |
Product FAQs
4 answersWhich panelboards are designed to accept this TE frame breaker?
This unit is engineered specifically for bolt-on installation in GE A-Series panelboards.
What wire sizes are compatible with the lugs on this breaker?
The terminals accommodate 14 to 3 AWG copper conductors or 12 to 1 AWG aluminum conductors.
Why might this breaker arrive with ABB branding instead of GE?
ABB acquired GE Industrial Solutions in 2018. Depending on the production batch, the breaker may carry either ABB or GE branding. Both versions are fully interchangeable and share the exact same specifications.
How does the trip unit operate on this model?
It utilizes a fixed thermal-magnetic trip mechanism that provides long-time protection against overloads and instantaneous protection against short circuits.
