ABB / General Electric TQL32020 Molded Case Circuit Breaker
- 20A
- 3 Pole
- Plug-On
ABB / General Electric
TQL32020
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TQL32020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

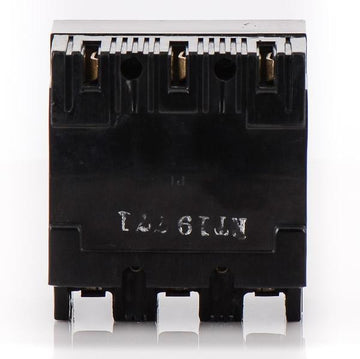

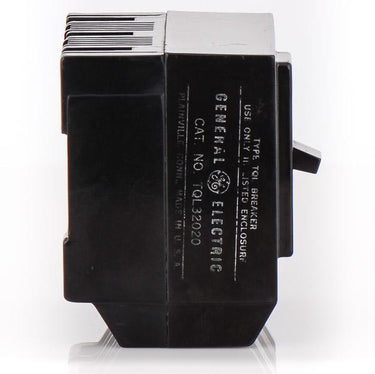

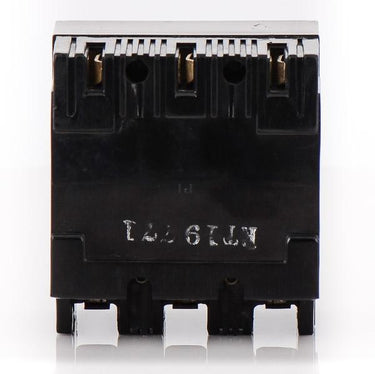

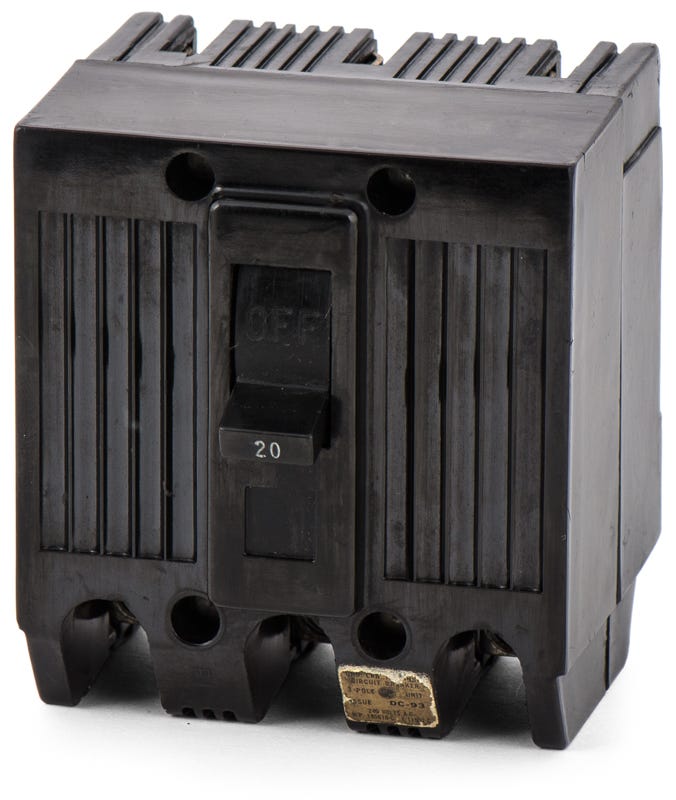

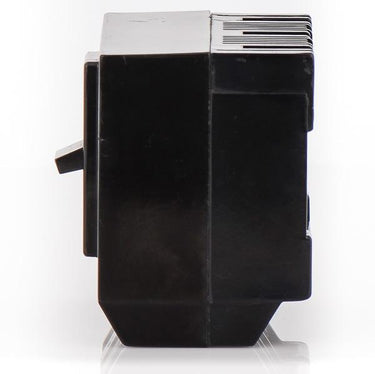

ABB / General Electric TQL32020 - 20A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
ABB / General ElectricTQL32010
10A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC32020WL
20A 3 Pole Molded Case Circuit Breaker
Description
Built for three-phase commercial and residential distribution, this 20A Q-Line breaker offers dependable thermal-magnetic trip characteristics. It handles standard 120/240VAC loads with a 5kA interrupting capacity. Compatibility includes older PowerMark Gold load centers and GE A-Series panelboards. Users upgrading to 10kAIC standards should cross-reference the THQL32020 substitute. Quick-make, quick-break contacts prevent arcing during operation.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQL32020-R |
| Series | TQL |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 5kA @ 120VAC, 5kA @ 240VAC, 5kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, PowerMark Gold Load Centers, GE Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Standards | UL 489, HACR |
| Approval | UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, Quick-Make/Quick-Break, Reverse Feed |
Product FAQs
7 answersWhat is the direct 10kAIC replacement for the TQL32020?
If your application requires a 10kA interrupting capacity, you can upgrade to the THQL32020. The THQL32020 is the modern equivalent that shares the same physical dimensions and plug-on mounting but offers a higher short-circuit rating.
Which panelboards are compatible with the TQL32020 circuit breaker?
This plug-on breaker is designed for use in older GE PowerMark Gold load centers, GE A-Series panelboards, and GE lighting panels that accept 1-inch per pole Q-Line breakers.
What wire sizes and materials are accepted by the box lugs on this breaker?
The box lug terminals accept 14 to 8 AWG copper wire or 12 to 8 AWG aluminum wire.
What does the LI trip function code mean for this breaker?
The LI code indicates a thermal-magnetic trip unit. The thermal element provides long-time (L) protection against overloads, while the magnetic element provides instantaneous (I) protection against short circuits.
Can I use a THQP half-inch breaker in place of this TQL breaker?
No. The TQL32020 is a full-size breaker requiring 1 inch of space per pole, totaling 3 inches of panel space. THQP breakers are half-inch width and only fit in specific panel slots designed for tandem configurations.
What is the interrupting capacity of the TQL32020?
The TQL32020 is rated for a 5kA interrupting capacity at 120/240V AC. If your panel or local code requires a 10kA rating, you must cross-reference and install the THQL32020 substitute.
Is there a 65kAIC version of this 20A 3-pole breaker?
Yes. For industrial or commercial applications requiring maximum short-circuit protection, the TXQL32020 offers a 65kA interrupting capacity while maintaining the same plug-on Q-Line form factor.
