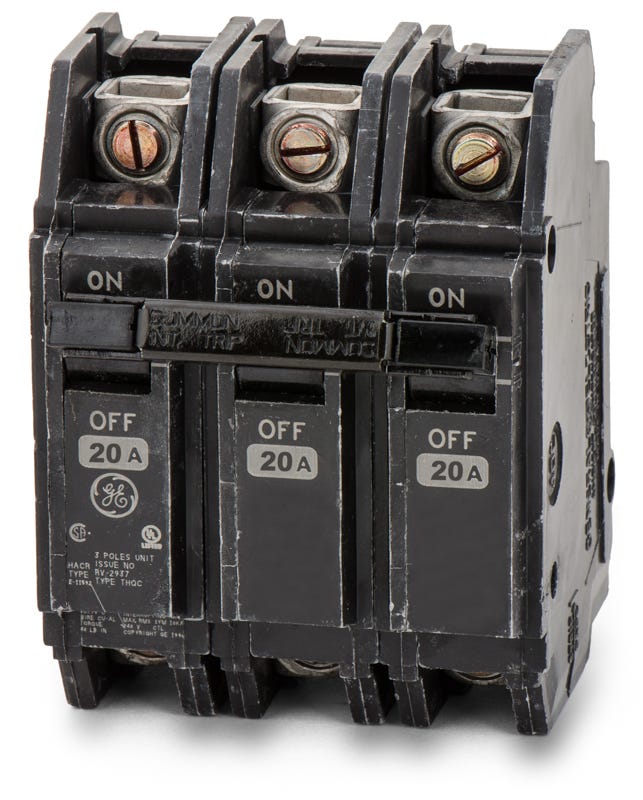

ABB / General Electric THQC32020WL Molded Case Circuit Breaker
- 20A
- 3 Pole
- DIN Rail
ABB / General Electric
THQC32020WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQC32020WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQC32020WL - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQC32020WL - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC32020WL |
| Series | THQC |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | DIN Rail |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | 35mm DIN Rail, OEM Panels, Enclosures |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break |
Quantity
ABB / General Electric THQC32020WL - 20A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC32020WL-R |
| Series | THQC |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | DIN Rail |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | 35mm DIN Rail, OEM Panels, Enclosures |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break |
Similar Items
ABB / General ElectricTHQC32015WL
15A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC32030WL
30A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC32040WL
40A 3 Pole Molded Case Circuit Breaker
Description
Rated at 10 kAIC, the GE THQC32020WL is a 20-amp, 3-pole molded case circuit breaker built for dependable power distribution. It serves a wide range of commercial and industrial applications. This Q-Line breaker is equipped with line and load lugs for secure wire terminations. It mounts onto 35mm DIN rails, ensuring seamless integration into OEM control panels and enclosures. The unit employs fixed thermal and magnetic trip mechanisms and is HACR rated for use with HVAC equipment.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC32020WL |
| Series | THQC |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | DIN Rail |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | 35mm DIN Rail, OEM Panels, Enclosures |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break |
Product FAQs
7 answersWhat does the "WL" suffix mean in the THQC32020WL catalog number?
The "WL" designation indicates that the circuit breaker comes factory equipped with both line and load side lugs for cable-in, cable-out feed-thru wiring.
How is the GE THQC32020WL circuit breaker mounted?
This breaker is designed for universal mounting. It can be snapped directly onto a standard 35mm DIN rail or used in lug-to-lug base-mounted applications within OEM control panels and enclosures.
What is the difference between GE THQC, THQB, and THQL circuit breakers?
While all belong to the GE Q-Line family, they use different mounting methods. THQC breakers are lug-to-lug or DIN rail mounted, THQB breakers are bolt-on for commercial lighting panels, and THQL breakers are plug-in for standard load centers.
Is the THQC32020WL suitable for use with HVAC equipment?
Yes, this circuit breaker is HACR rated, meaning it is tested and approved for use with heating, air conditioning, and refrigeration equipment.
What wire sizes are compatible with the lugs on the THQC32020WL?
The line and load lugs accept 14 to 8 AWG copper wire or 12 to 8 AWG aluminum wire.
What type of trip mechanism does the THQC32020WL use?
It utilizes a fixed thermal magnetic trip unit with long-time and instantaneous (LI) trip functions. The thermal element responds to sustained overloads, while the magnetic element responds immediately to short circuits.
Will I receive an ABB or GE branded THQC32020WL breaker?
Following ABB's acquisition of GE Industrial Solutions, this breaker may be labeled under either the ABB or GE brand. The physical dimensions, specifications, and performance remain identical regardless of the logo on the label.
