ABB / General Electric THQB2120GFEP GFEP Miniature Circuit Breaker
- 20A
- 2 Pole
- Bolt-On
ABB / General Electric
THQB2120GFEP
GFEP Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB2120GFEP
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB2120GFEP - 20A GFEP Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQB2140GFEP2
40A GFEP Miniature Circuit Breaker
ABB / General ElectricTHQB2140GFEP
40A GFEP Miniature Circuit Breaker
ABB / General ElectricTHQB2150GFEP2
50A GFEP Miniature Circuit Breaker
Description

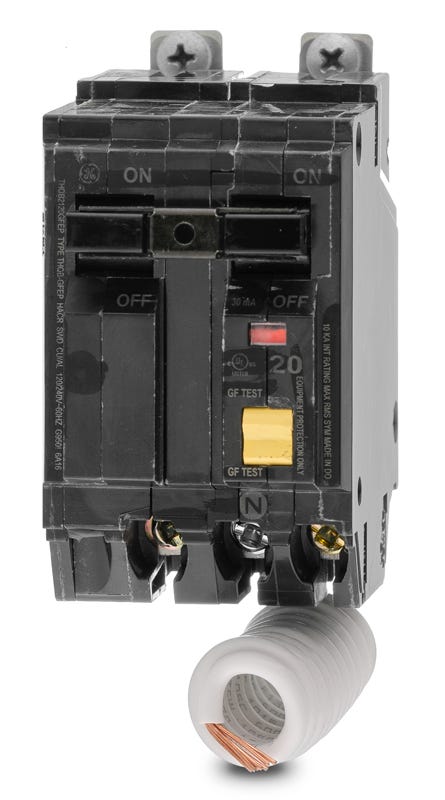

Part of the Q-Line family, the GE THQB2120GFEP is a two-pole, 20A circuit breaker designed for equipment protection. It utilizes a 30mA ground fault threshold to shield machinery from damaging leakage currents. This unit mounts into GE A-Series panelboards using a secure bolt-on connection. The breaker is equipped with standard box lugs that accommodate 14-8 AWG copper or 12-8 AWG aluminum conductors. Delivering a 10kAIC rating at 120/240VAC, it features an internal common trip.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB2120GFEP |
| Series | THQB |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip, Self-Test |
Product FAQs
5 answersWhat panelboards are compatible with the THQB2120GFEP?
This bolt-on circuit breaker is designed for use in GE A-Series panelboards and AQ lighting panels. It will not fit in standard residential load centers that require plug-on breakers.
What does the GFEP designation mean on this breaker?
GFEP stands for Ground Fault Equipment Protection. This breaker utilizes a 30mA trip threshold to protect machinery, heat trace cables, and other equipment from damaging leakage currents, preventing nuisance tripping that might occur with a standard 5mA personnel protection breaker.
How do I wire the pigtail neutral on this breaker?
The attached white pigtail wire must be connected directly to the neutral bus bar in your panelboard. This connection is required to power the internal ground fault sensing circuitry.
Can I install the THQB2120GFEP in a panel that uses THQL breakers?
No. The THQB series features a bolt-on connection for commercial panels, while the THQL series uses a plug-on connection. They are not interchangeable.
Can I substitute the THQB2120GFEP for a THQB2120GF?
No. The THQB2120GFEP provides 30mA equipment protection, while the THQB2120GF provides 5mA personnel protection. You must use the specific breaker type required by your equipment manufacturer and local electrical codes.
