ABB / General Electric THQB2150GFEP2 GFEP Miniature Circuit Breaker
- 50A
- 2 Pole
- Bolt-On
ABB / General Electric
THQB2150GFEP2
GFEP Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB2150GFEP2
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB2150GFEP2 - 50A GFEP Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQB2140GFEP
40A GFEP Miniature Circuit Breaker
ABB / General ElectricTHQB2140GFEP2
40A GFEP Miniature Circuit Breaker
ABB / General ElectricTHQB2130GFEP
30A GFEP Miniature Circuit Breaker
Description
Rated for 50A at 120/240V, this two-pole GFEP breaker is engineered to protect machinery and heat-tracing equipment from damaging low-level ground faults. Unlike personnel GFCIs, the 30mA trip threshold prevents nuisance tripping on industrial equipment while still safeguarding the hardware. It mounts securely into GE A-Series panelboards and AQ lighting panels using a standard bolt-on connection. Features include an internal common trip and a 10kAIC short-circuit rating.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | THQB |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 8-3 AWG (Cu/Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
| Accessories | Ground Fault Equipment Protection Module |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break |
Product FAQs
6 answersWhat panels are compatible with the THQB2150GFEP2 circuit breaker?
This bolt-on breaker is designed for use in ABB and GE A-Series panelboards, specifically Type AQ and AQC lighting panels.
Can I install this THQB breaker in a standard GE residential load center?
No. Standard GE residential load centers require THQL plug-on breakers. The THQB series utilizes a bolt-on mounting design meant strictly for commercial A-Series panelboards.
What is the difference between this GFEP breaker and a GFCI breaker?
A Ground Fault Equipment Protection (GFEP) breaker like this model trips at a 30mA threshold to protect heat tracing equipment and machinery from low-level faults. A standard Class A GFCI trips at a much lower 5mA threshold to protect personnel from electric shock.
How is the neutral connection handled during installation?

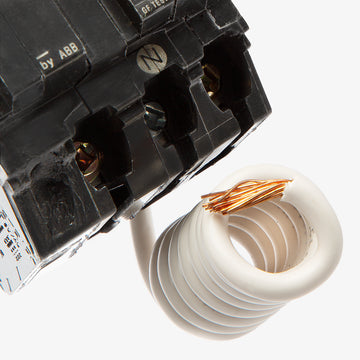

This breaker features a pigtail neutral wire. The pigtail must be securely landed on the neutral bus bar in your panelboard for the internal ground fault protection circuitry to function.
Will an ABB branded THQB2150GFEP2 fit in my older GE industrial panel?
Yes. Following ABB's acquisition of GE Industrial Solutions, ABB continues to manufacture the Q-Line series. The ABB branded breaker maintains the exact same dimensions, bolt-on connections, and catalog number, making it fully compatible with legacy GE panels.
Does this breaker protect against standard overloads as well as ground faults?
Yes. It utilizes a thermal magnetic trip mechanism to provide standard long-time overload and instantaneous short-circuit protection, operating alongside the ground fault detection.
