ABB / General Electric TQAL21100 Molded Case Circuit Breaker
- 100A
- 2 Pole
- Plug-On
ABB / General Electric
TQAL21100
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TQAL21100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

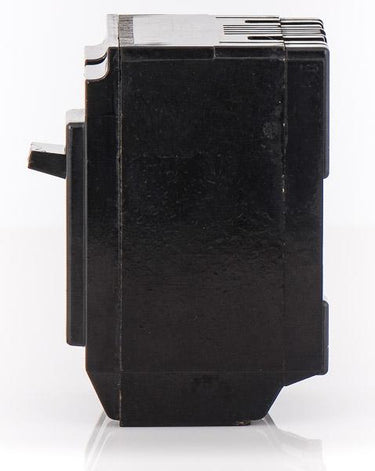

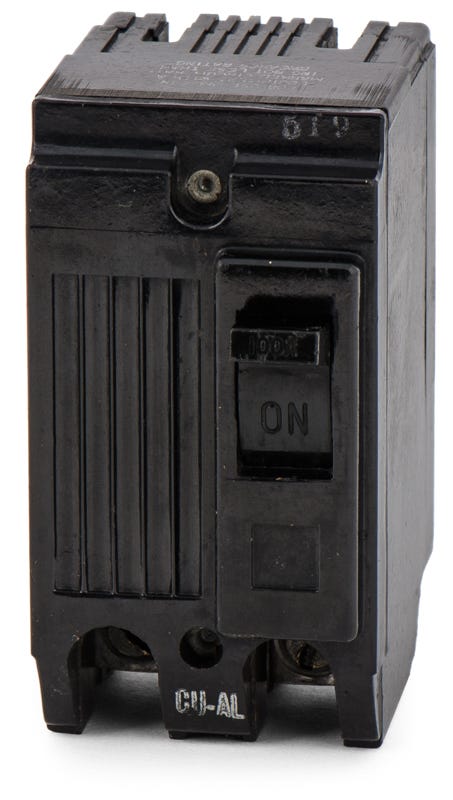

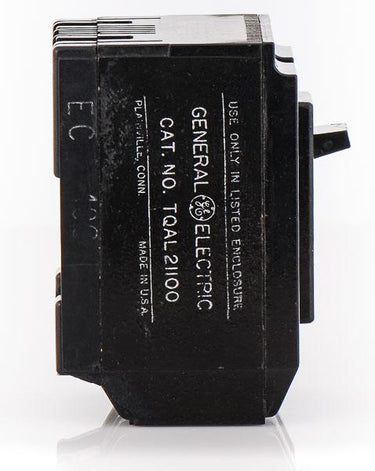

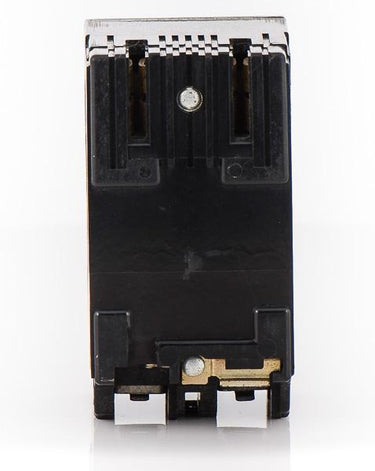

ABB / General Electric TQAL21100 - 100A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
ABB / General ElectricTHQC21100WL
100A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTQD22100WL
100A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC21100
100A 2 Pole Molded Case Circuit Breaker
Description
Serving as a reliable component for electrical distribution, this 100A two-pole Q-Line breaker provides thermal-magnetic protection. It is engineered for residential and commercial applications requiring a 120/240VAC rating. The unit mounts into GE PowerMark load centers using a standard plug-on configuration. For modern upgrades, this specific model is commonly replaced by the THQL21100 series. Featuring common trip functionality and an HACR rating, it handles demanding loads safely.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQAL21100-R |
| Series | TQAL |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE PowerMark Load Centers |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Standards | HACR, UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Reverse Feed, Main Breaker |
Product FAQs
7 answersWhat is the modern replacement for the GE TQAL21100?
The GE THQL21100 is the current production equivalent. The THQL series replaces older TQAL models and is compatible with panels that list TQAL or TQL-AC breakers on their interior label.
Can I install the TQAL21100 in a non-GE panel?
No. This is a proprietary plug-in breaker designed exclusively for GE PowerMark load centers and legacy GE panels. It is not UL listed for use in competitor panels such as Square D, Siemens, or Eaton.
Is the TQAL21100 interchangeable with GE THQP breakers?
No. The TQAL21100 is a full-size breaker requiring 1-inch per pole. THQP breakers are half-size (1/2-inch per pole) and require a specialized cruciform bus bar configuration that is not interchangeable with standard TQAL or THQL breakers.
How much panel space does the TQAL21100 require?
As a standard 2-pole Q-Line breaker, it requires two full 1-inch spaces in a compatible GE load center.
What does the LI trip function indicate on this breaker?
The LI designation means the breaker uses a thermal-magnetic mechanism to provide Long-Time and Instantaneous protection. The long-time thermal element protects against sustained overloads, while the instantaneous magnetic element trips immediately during a short circuit.
Is the TQAL21100 HACR rated?
Yes. This breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment that requires this specific safety designation.
Does this breaker provide GFCI or AFCI protection?
No. The TQAL21100 is a standard thermal-magnetic circuit breaker. It does not include Ground Fault Circuit Interrupter (GFCI) or Arc Fault Circuit Interrupter (AFCI) protection.
