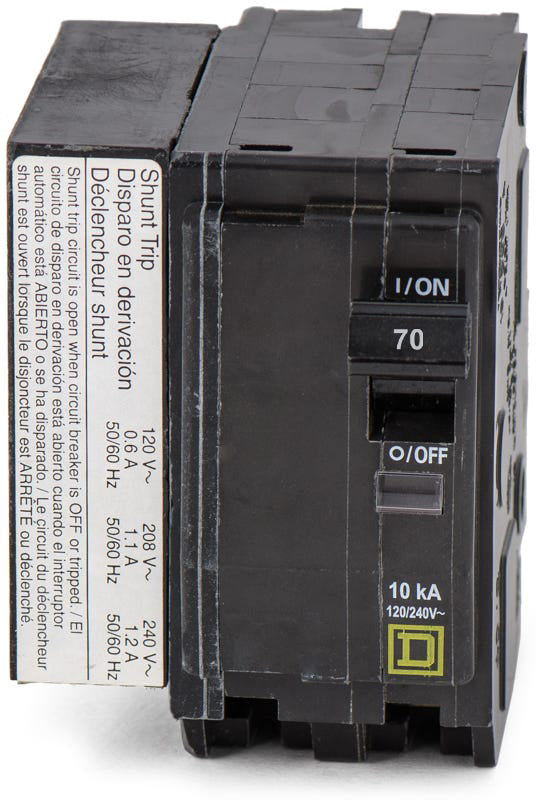

Square D QO270-1021 QO2701021 - 70A 2 Pole Miniature Circuit Breaker
- 70A
- 2 Pole
- Plug-On
Square D
QO270-1021
QO2701021 - 70A 2 Pole Miniature Circuit Breaker
Brand
Square D
SKU
QO270-1021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO2701021 - 70A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
100A 2 Pole Miniature Circuit Breaker
40A 2 Pole Miniature Circuit Breaker
QO2301021 - 30A 2 Pole Miniature Circuit Breaker
Description
Built for commercial and industrial safety systems, this 70-amp unit incorporates remote tripping capabilities alongside standard thermal-magnetic protection. It is frequently utilized in emergency stop circuits or automated shutdown sequences. The device installs into QO load centers and NQ panelboards. It requires additional space compared to standard modules due to the integrated accessory. The factory-installed 120/208/240VAC shunt trip activates when an external voltage is applied.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO270-1021 |
| Series | QO |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, NQ Panelboards |
| Wire Gauge | 8 AWG - 2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Shunt Trip (120/208/240VAC) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
7 answersCan I install the QO270-1021 in a Square D Homeline panel?
No. QO series breakers are not interchangeable with Homeline breakers. This breaker is strictly for use in Square D QO load centers and NQ panelboards.
What does the -1021 suffix indicate on this Square D circuit breaker?
The -1021 suffix means this breaker includes a factory-installed shunt trip accessory. This allows the breaker to be tripped remotely when a voltage signal is applied.
What is the control voltage for the shunt trip accessory on this breaker?
The factory-installed shunt trip operates on a 120/208/240VAC control voltage signal to remotely open the circuit breaker.
How many panel spaces does the QO270-1021 require?
This breaker requires 3 panel spaces. The standard 2-pole breaker occupies 2 spaces, and the factory-installed shunt trip accessory requires 1 additional space.
Does this breaker feature a tripped circuit indicator?
Yes, it includes the Square D Visi-Trip indicator, which provides a highly visible red flag in the window when the breaker has tripped.
Is the QO270-1021 HACR rated?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment.
What are the alternate part numbers for the QO270-1021?
This breaker is frequently listed as QO2701021 without the hyphen.
