Square D QO290-1021 Miniature Circuit Breaker
- 90A
- 2 Pole
- Plug-On
Square D
QO290-1021
Miniature Circuit Breaker
Brand
Square D
SKU
QO290-1021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

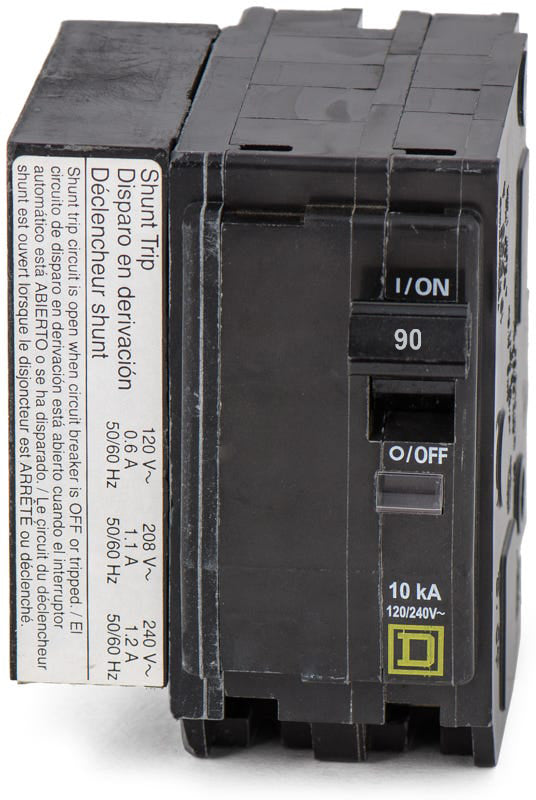

Square D QO290-1021 - 90A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
80A 2 Pole Miniature Circuit Breaker
QO21251021 - 125A 2 Pole Miniature Circuit Breaker
40A 2 Pole Miniature Circuit Breaker
Description
Part of the QO series, the QO290-1021 is a two-pole, 90-amp miniature circuit breaker for commercial and industrial 120/240VAC systems. It combines thermal-magnetic protection with advanced control. This plug-on unit mounts into Square D QO load centers and NQ panelboards. The standardized design ensures a secure fit and reliable power distribution across compatible enclosures. A factory-installed 120/240VAC shunt trip accessory enables remote tripping via an external signal.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO290-1021 |
| Series | QO |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, NQ Panelboards |
| Wire Gauge | 4-2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, UL 489, RoHS, HACR |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, Common Trip, Trip-Free Mechanism, Quick-Make/Quick-Break |
Product FAQs
6 answersWhat panels are compatible with the QO290-1021 circuit breaker?
This plug-on breaker is designed for use in Square D QO load centers and NQ panelboards. It is not compatible with Homeline (HOM) or QOB bolt-on panels.
What does the -1021 suffix mean on this Square D QO breaker?
The -1021 suffix indicates that the breaker includes a factory-installed 120/240VAC shunt trip accessory. This allows the breaker to be tripped remotely via an external voltage signal.
How is the shunt trip wired on the QO290-1021?
The factory-installed shunt trip features two wire leads. To enable remote tripping, connect these leads to a 120V to 240V AC control circuit, typically routed through a normally open contact on a remote switch, emergency stop, or fire suppression system.
Is the QO290-1021 HACR rated?
Yes, like most Square D QO miniature circuit breakers, this unit is HACR rated for use with heating, air conditioning, and refrigeration equipment.
Does this breaker feature a Visi-Trip indicator?
Yes, the QO290-1021 includes Square D's Visi-Trip indicator. When the breaker trips, the handle snaps to a center position and a highly visible red indicator appears, making it easy to identify the tripped circuit.
What is the difference between the QO290-1021 and the QOB290-1021?
The QO290-1021 is a plug-on breaker designed for QO load centers, while the QOB290-1021 is a bolt-on breaker designed for NQOB and NQ panelboards. They share the same electrical ratings but have different mounting styles.
