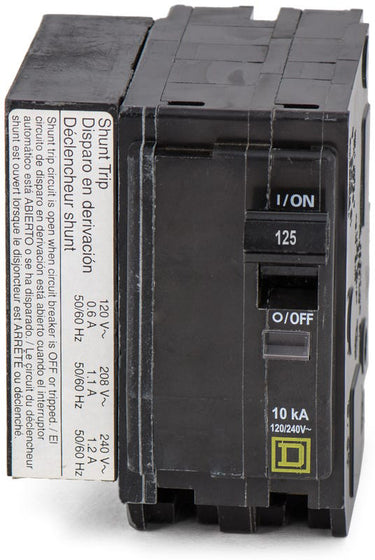

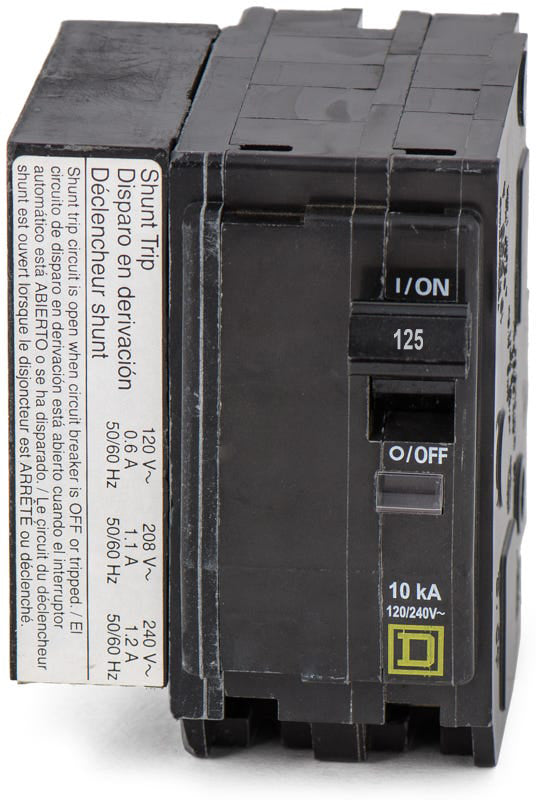

Square D QO2125-1021 QO21251021 - 125A 2 Pole Miniature Circuit Breaker
- 125A
- 2 Pole
- Plug-On
Square D
QO2125-1021
QO21251021 - 125A 2 Pole Miniature Circuit Breaker
Brand
Square D
SKU
QO2125-1021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO21251021 - 125A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
80A 2 Pole Miniature Circuit Breaker
40A 2 Pole Miniature Circuit Breaker
QO2301021 - 30A 2 Pole Miniature Circuit Breaker
Description
Built for commercial and industrial control applications, this 125-amp miniature breaker includes a factory-installed shunt trip mechanism for remote opening of the circuit. The unit mounts securely into Square D QO load centers, as well as NQ and NQOD panelboards, providing versatile integration for complex electrical systems. Facility managers can rely on the integrated Visi-Trip indicator to quickly identify tripped status, streamlining maintenance and minimizing downtime during power events.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO21251021 |
| Series | QO |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 4 AWG-2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip |
| Standards | HACR, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, Common Trip |
Product FAQs
8 answersWhat does the -1021 suffix mean on the QO2125-1021 circuit breaker?
The -1021 suffix indicates that this breaker includes a factory-installed 120/240V AC shunt trip mechanism. This accessory allows the breaker to be opened remotely using an external control signal.
Which electrical panels are compatible with the QO2125-1021?
This plug-on breaker fits Square D QO load centers, as well as NQ and NQOD panelboards. Before installation, verify that your specific panel bus is rated to accept a 125A branch breaker, as some smaller load centers have lower maximum branch limits.
Can I install this QO breaker in a bolt-on panelboard?
No, the QO2125-1021 features a plug-on mounting style. If your panel requires bolt-on connections, you will need to source the equivalent QOB series circuit breaker instead.
How do I identify if the QO2125-1021 has tripped?
Like most Square D QO miniature circuit breakers, this model features a Visi-Trip indicator. When the breaker trips due to an overcurrent or a shunt trip signal, the handle moves to a center position and a bright red flag appears in the indicator window.
What wire sizes are accepted by the terminals on this 125A breaker?
The box lugs accommodate 4 AWG to 2/0 AWG wire. They are rated for both aluminum and copper (Al/Cu) conductors. When using aluminum wire, applying a listed joint compound is recommended to prevent oxidation.
Is the shunt trip on the QO2125-1021 field-installable?
No, the 120/240V AC shunt trip on this specific model is factory-installed. Square D does not offer field-installable shunt trips for standard QO miniature circuit breakers.
How does the thermal-magnetic trip mechanism protect the circuit?
The breaker uses fixed Long-Time and Instantaneous (LI) trip functions. The thermal component provides delayed tripping for prolonged overloads, while the magnetic component trips instantaneously to protect against severe short circuits.
Does the QO2125-1021 require any special mounting hardware?
No special hardware is required for standard installation. It utilizes a standard plug-on mounting design that snaps directly into the bus bar of compatible QO, NQ, or NQOD panels.
