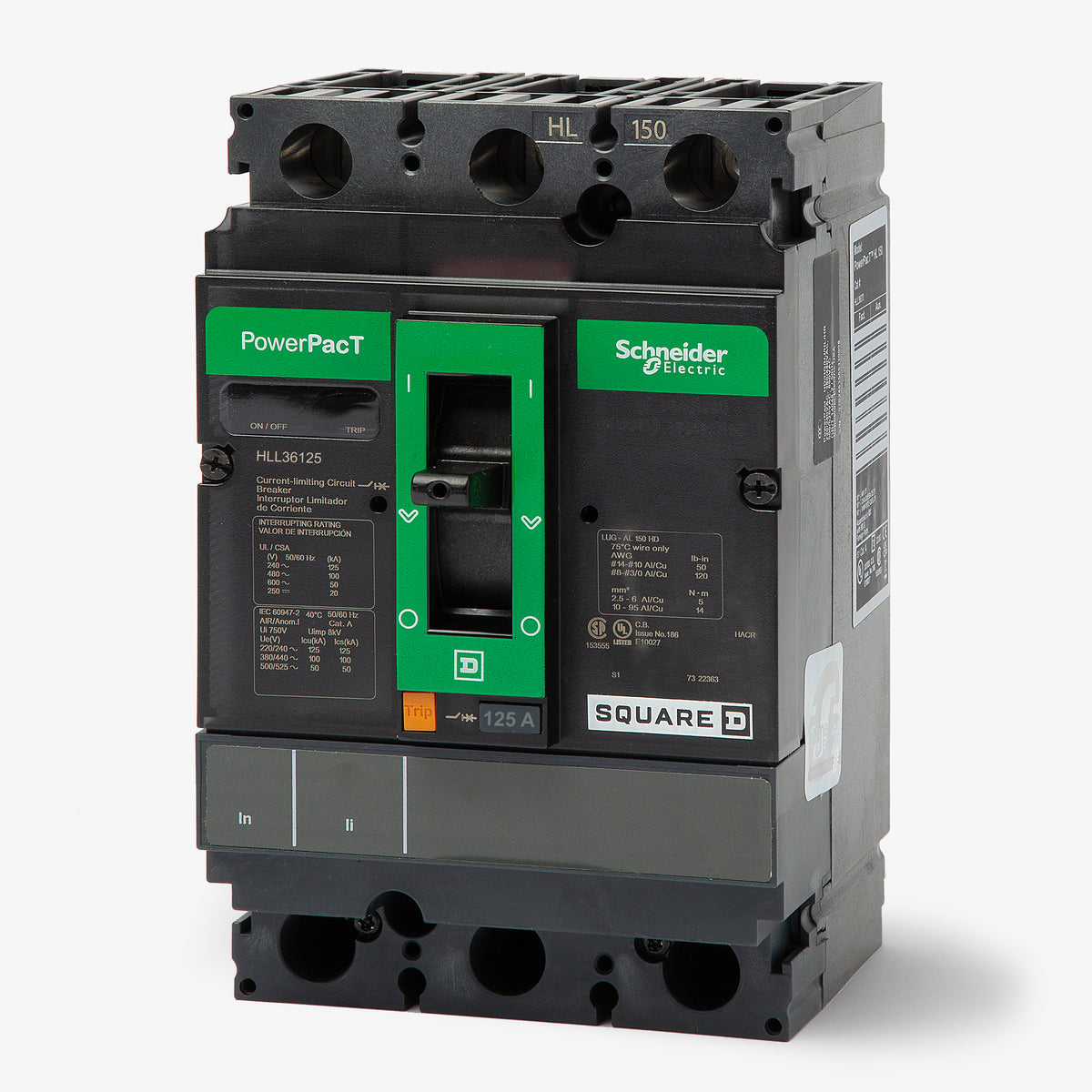

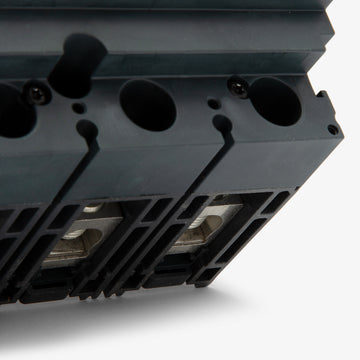

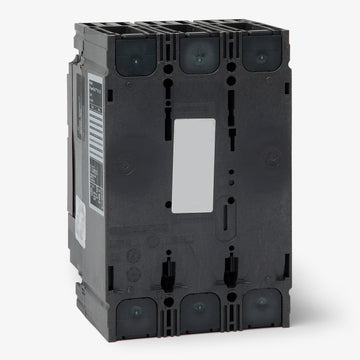

Square D HLL36125 Molded Case Circuit Breaker
- 125A
- 3 Pole
- Unit Mount
Square D
HLL36125
Molded Case Circuit Breaker
Brand
Square D
SKU
HLL36125
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HLL36125 - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D HLL36125 - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | HLL36125 |
| Series | HLL |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 125kA @ 240VAC, 100kA @ 480VAC, 50kA @ 600VAC, 20kA @ 250VDC, 50kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Industrial Control Panels, Switchboards, Enclosures |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL, UKCA |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Non-Interchangeable Trip, Reverse Feed |
Quantity
Square D HLL36125 - 125A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | HLL36125 |
| Series | HLL |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 125kA @ 240VAC, 100kA @ 480VAC, 50kA @ 600VAC, 20kA @ 250VDC, 50kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Industrial Control Panels, Switchboards, Enclosures |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL, UKCA |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Non-Interchangeable Trip, Reverse Feed |
Similar Items
100A 3 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
Description
Rated at 100kAIC for 480V systems, the Square D HLL36125 is a 125A, 3-pole molded case circuit breaker from the PowerPact H-Frame series. It is engineered for heavy-duty commercial and industrial applications. The unit-mount design secures into industrial control panels, switchboards, and enclosures. It includes line and load lugs that accommodate 14 to 3/0 AWG wire. This breaker features a thermal-magnetic trip unit with Long-Time and Instantaneous (LI) functions and is fully HACR rated.Specifications
| Brand | Square D |
|---|---|
| Part Number | HLL36125 |
| Series | HLL |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 125kA @ 240VAC, 100kA @ 480VAC, 50kA @ 600VAC, 20kA @ 250VDC, 50kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Industrial Control Panels, Switchboards, Enclosures |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL, UKCA |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Non-Interchangeable Trip, Reverse Feed |
Product FAQs

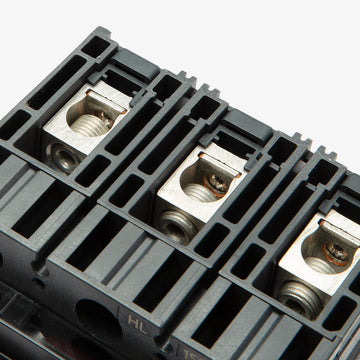

7 answersWhat lugs are standard on the HLL36125, and what wire sizes do they accept?
This breaker comes standard with AL150HD mechanical lugs, which accept 14 AWG to 3/0 AWG aluminum or copper wire.
Can the HLL36125 be used in DC applications?
Yes, it is rated for DC systems, providing up to 20kA interrupting capacity at 250VDC and 50kA at 500VDC.
How does the thermal-magnetic trip unit on the HLL36125 operate?
It features an LI (Long-Time, Instantaneous) trip function. The thermal protection for overloads is fixed, while the magnetic protection for short circuits is adjustable.
What does the "HLL" prefix in the HLL36125 catalog number mean?
In the Square D PowerPacT nomenclature, "H" stands for the H-Frame, the first "L" indicates the interrupting rating (100kA at 480VAC), and the second "L" signifies that the breaker comes with lugs on both the line and load sides.
Is the HLL36125 an I-Line or unit-mount breaker?
The HLL36125 is a unit-mount (bolt-on) breaker with lugs on both ends. If you need the I-Line plug-on equivalent for a Square D panelboard, you will need catalog number HLA36125.
Can I add a shunt trip or auxiliary switch to the HLL36125?
Yes, the PowerPacT H-Frame supports a wide range of field-installable internal accessories, including shunt trips, undervoltage releases, and auxiliary switches.
Where can the HLL36125 be installed?
It is a unit-mount breaker designed for use in industrial control panels, switchboards, and standalone enclosures.
