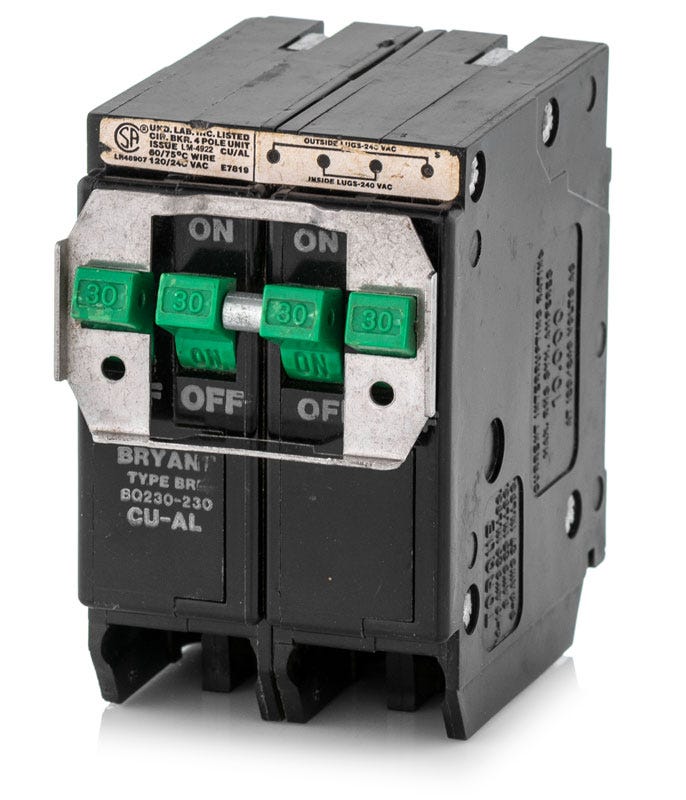

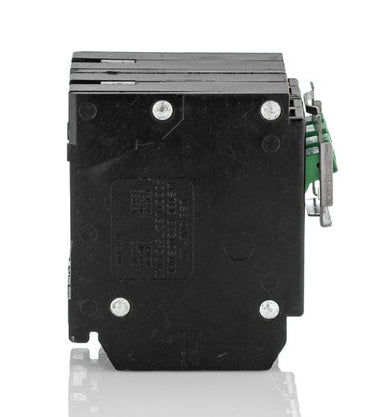

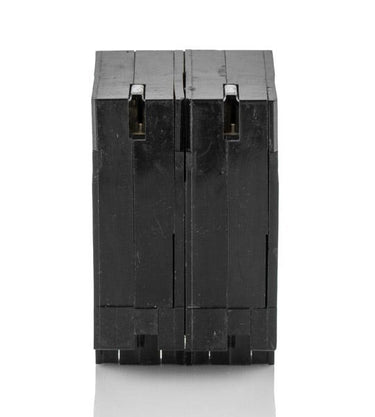

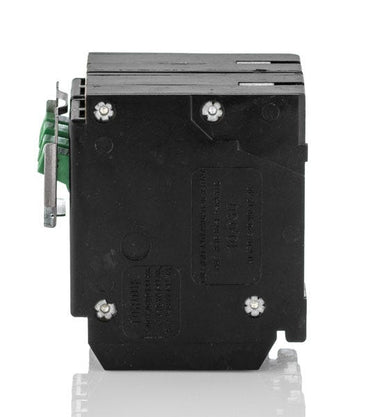

Eaton / Cutler-Hammer BQ230230 30/30A Quadplex Miniature Circuit Breaker
- 30/30A
- 4 Pole
- Plug-On
Eaton / Cutler-Hammer
BQ230230
30/30A Quadplex Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BQ230230
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BQ230230 - 30/30A Quadplex Miniature Circuit Breaker
Re-Certified
Quantity
Similar Items
20/30A Quadplex Miniature Circuit Breaker
25/30A Quadplex Miniature Circuit Breaker
30/15A Quadplex Miniature Circuit Breaker
Description
Built to maximize panel density, the Eaton BQ230230 quadplex breaker delivers two independent 30A, 240V circuits. It fits four poles of thermal-magnetic protection into just two standard 1-inch spaces. The plug-on unit installs into Eaton Type BR load centers and features a rejection tab for CTL compliance. It accepts #14-4 AWG wire and is suitable for residential or commercial applications. This 10 kAIC rated breaker provides reliable independent trip functionality for both 30A circuits.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BQ230230-R |
| Series | BQ |
| Amperage | 30/30A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Rejection Tab |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Rejection Tab |
Product FAQs
5 answersWhat panels are compatible with the Eaton BQ230230 quadplex breaker?
This plug-on breaker is designed for use in Eaton Type BR load centers. It is also UL-listed for use in legacy Cutler-Hammer, Bryant, Westinghouse, and Challenger panels that accept Type BR breakers.
Can the BQ230230 be installed in any Eaton BR load center?
No. This is a CTL (Circuit Total Limitation) breaker equipped with a rejection tab. It can only be installed in CTL-rated load centers that feature notched bus stabs designed to accept tandem and quadplex breakers.
What is the difference between Eaton BQ and BQC quadplex breakers?
Type BQ breakers, like the BQ230230, feature an independent trip mechanism where each pole trips independently, though they include handle ties for a common manual disconnect. Type BQC breakers feature an internal common trip mechanism where the linked poles trip synchronously.
How much panel space does the BQ230230 require?
This quadplex breaker provides two separate 30A, 240V circuits but only requires two standard 1-inch spaces in your load center. This space-saving design is ideal for adding circuits when panel capacity is limited.
Is the BQ230230 a direct replacement for older Cutler-Hammer quadplex breakers?
Yes. Eaton acquired Cutler-Hammer and continues to manufacture these breakers under the Eaton brand. The BQ230230 directly replaces older Cutler-Hammer, Bryant, and Westinghouse quadplex breakers with the exact same catalog number.
