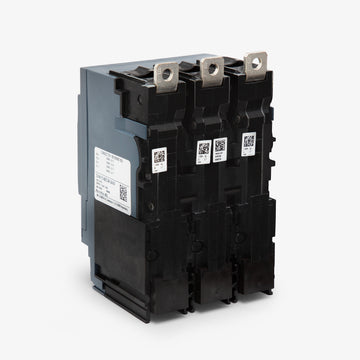

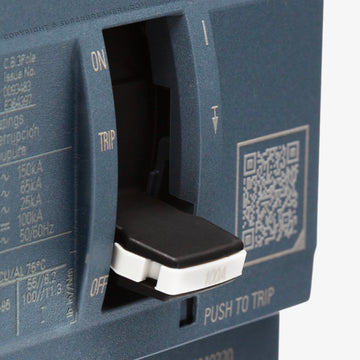

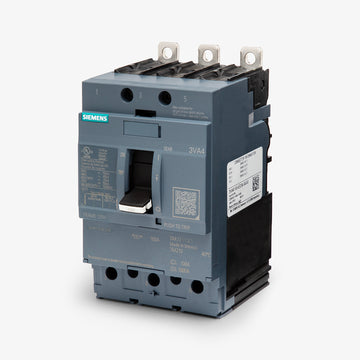

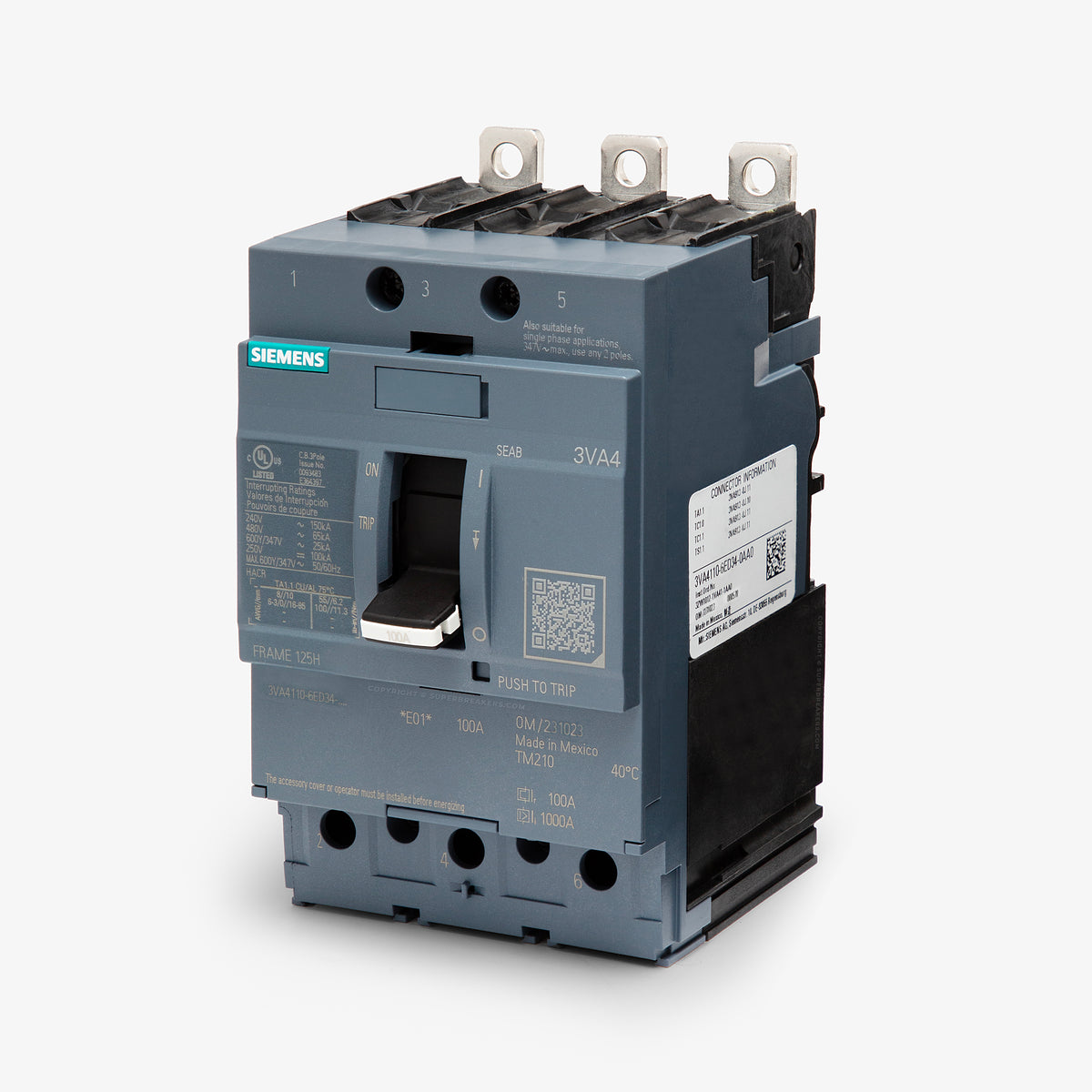

Siemens 3VA4110-6ED34-0AA0 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Bolt-On
Siemens
3VA4110-6ED34-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA4110-6ED34-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA4110-6ED34-0AA0 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens 3VA4110-6ED34-0AA0 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | 3VA4110-6ED34-0AA0 |
| Series | 3VA4 |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 100kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 8 AWG - 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed |
Sold out
Quantity
Siemens 3VA4110-6ED34-0AA0 - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Series | 3VA4 |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 100kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 8 AWG - 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed |
Similar Items
40A 3 Pole Molded Case Circuit Breaker
35A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
Description
Built for demanding commercial and industrial applications, this 100A, 3-pole MCCB delivers reliable thermal-magnetic protection. The SENTRON 3VA4 breaker features fixed long-time and instantaneous trip functions to safeguard critical infrastructure. This bolt-on breaker installs into Siemens P1, P2, and P3 panelboards. It is an ideal drop-in replacement for older HEAB series components. Delivering a 65kAIC rating at 480VAC, this unit is HACR rated and reverse feed capable.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA4110-6ED34-0AA0 |
| Series | 3VA4 |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 100kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 8 AWG - 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed |
Product FAQs
8 answersWhat panelboards accept the 3VA4110-6ED34-0AA0 circuit breaker?
This breaker is designed for use in Siemens P1, P2, and P3 panelboards, as well as compatible Siemens switchboards.
Can the 3VA4110-6ED34-0AA0 be reverse fed?
Yes, all Siemens 3VA41 thermal-magnetic trip circuit breakers are UL listed for reverse feed applications. They do not have line and load restrictions, allowing power to be supplied from either end.
How does the 3VA4110-6ED34-0AA0 mount into a panelboard?

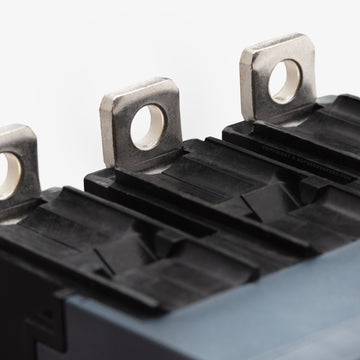

It is a bolt-on molded case circuit breaker. It secures directly to the panel bus using bolted connections rather than plugging in, providing a stable and reliable connection for commercial and industrial power distribution.
What type of protection does the LI trip function provide?
The LI trip code indicates that the breaker's thermal-magnetic trip unit provides Long-Time (L) protection against standard overloads and Instantaneous (I) protection against short circuits.
Are the thermal and magnetic trip points adjustable on this breaker?
No, this model features fixed thermal and fixed magnetic trip settings. The long-time and instantaneous pickup levels cannot be adjusted in the field.
Is the 3VA4110-6ED34-0AA0 breaker suitable for direct current (DC) systems?
Yes. While typically used for AC power, this breaker is also rated for DC applications up to 250VDC with a 100kA interrupting capacity, making it versatile for specialized setups.
Can the 3VA4110-6ED34-0AA0 be used as a replacement for older ED-frame breakers?
Yes, this 3VA4 series breaker serves as a functional substitute and modern upgrade for legacy 100A, 3-pole ED-frame models like the ED43B100 and HED43B100, integrating directly into compatible Siemens panelboards.
Is the 3VA4110-6ED34-0AA0 HACR rated?
Yes, this 100A model is HACR rated, making it fully certified and suitable for protecting heating, air conditioning, and refrigeration equipment circuits.
