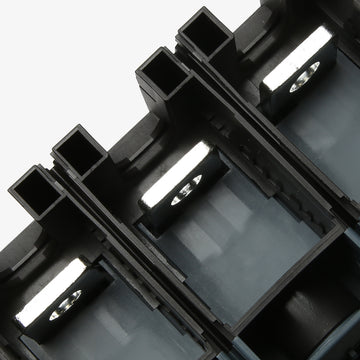

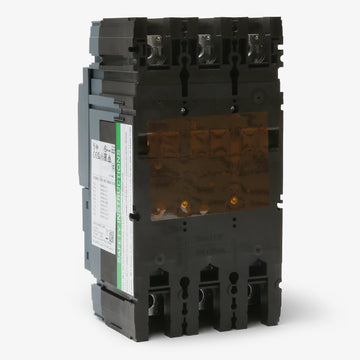

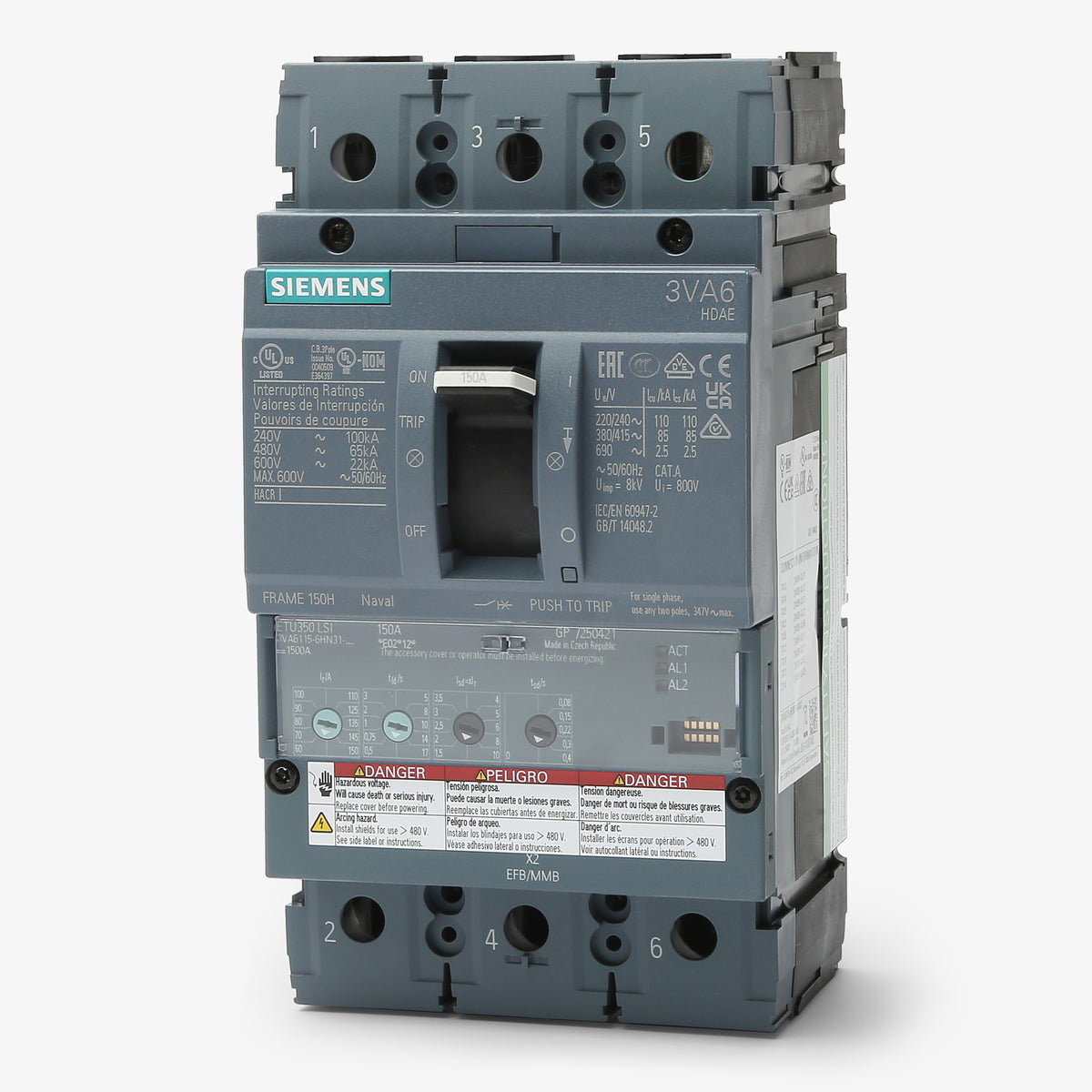

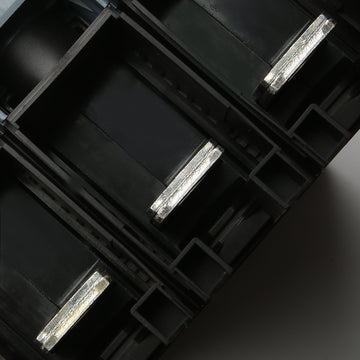

Siemens 3VA6110-7HN31-0AA0 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Panel Mount
Siemens
3VA6110-7HN31-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA6110-7HN31-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA6110-7HN31-0AA0 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
150A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
Description
Part of the Siemens SENTRON 3VA6 series, the 3VA6110-7HN31-0AA0 is a 3-pole, 100A molded case circuit breaker engineered for robust industrial applications up to 600VAC. This panel mount breaker integrates into Siemens P2 through P5 panelboards and switchboards, and is supplied without lugs for custom connection setups. It features a microprocessor-based ETU350 electronic trip unit with adjustable long-time, short-time, and instantaneous (LSI) functions and a 100 kAIC rating at 480V.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA6110-7HN31-0AA0 |
| Series | 3VA6 |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 100kA @ 480VAC, 35kA @ 600VAC |
| Amperage Range | 40-100A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P2, P3, P4, P5 Panelboards, Switchboards |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release, Motor Operator, Communication Module, Padlock Attachment |
|---|---|
| Accessories | None (No Lugs Included) |
| Standards | IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Non-Interchangeable Trip, True RMS Sensing |
Product FAQs
6 answersWhich Siemens panelboards accept the 3VA6110-7HN31-0AA0 circuit breaker?
This breaker is compatible with Siemens P2, P3, P4, and P5 panelboards, as well as Siemens switchboards.
What type of trip unit is installed in the 3VA6110-7HN31-0AA0?
It is equipped with an ETU350 electronic trip unit. This solid state unit provides adjustable Long-Time, Short-Time, and Instantaneous (LSI) protection settings for precise system coordination.
What is the adjustable continuous current range for this 100A breaker?
The ETU350 electronic trip unit allows the continuous current setting to be adjusted from 40A to 100A.
What frame size does the 3VA6110-7HN31-0AA0 utilize?
This breaker is built on the Siemens 3VA61 frame, which is a 150A maximum UL frame size.
What does the "7" in the 3VA6110-7HN31-0AA0 catalog number signify?
The "7" indicates that the breaker has a Class C breaking capacity, which corresponds to its 100kA interrupting rating at 480VAC.
How is the 3VA6110-7HN31-0AA0 connected within the panel?
It is a panel mount breaker designed for feed-thru connections and comes equipped with standard lugs.
