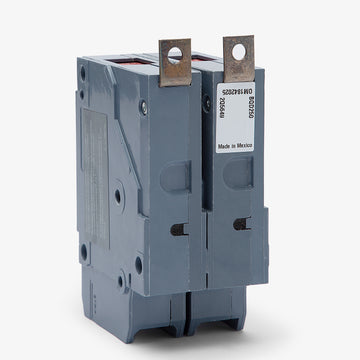

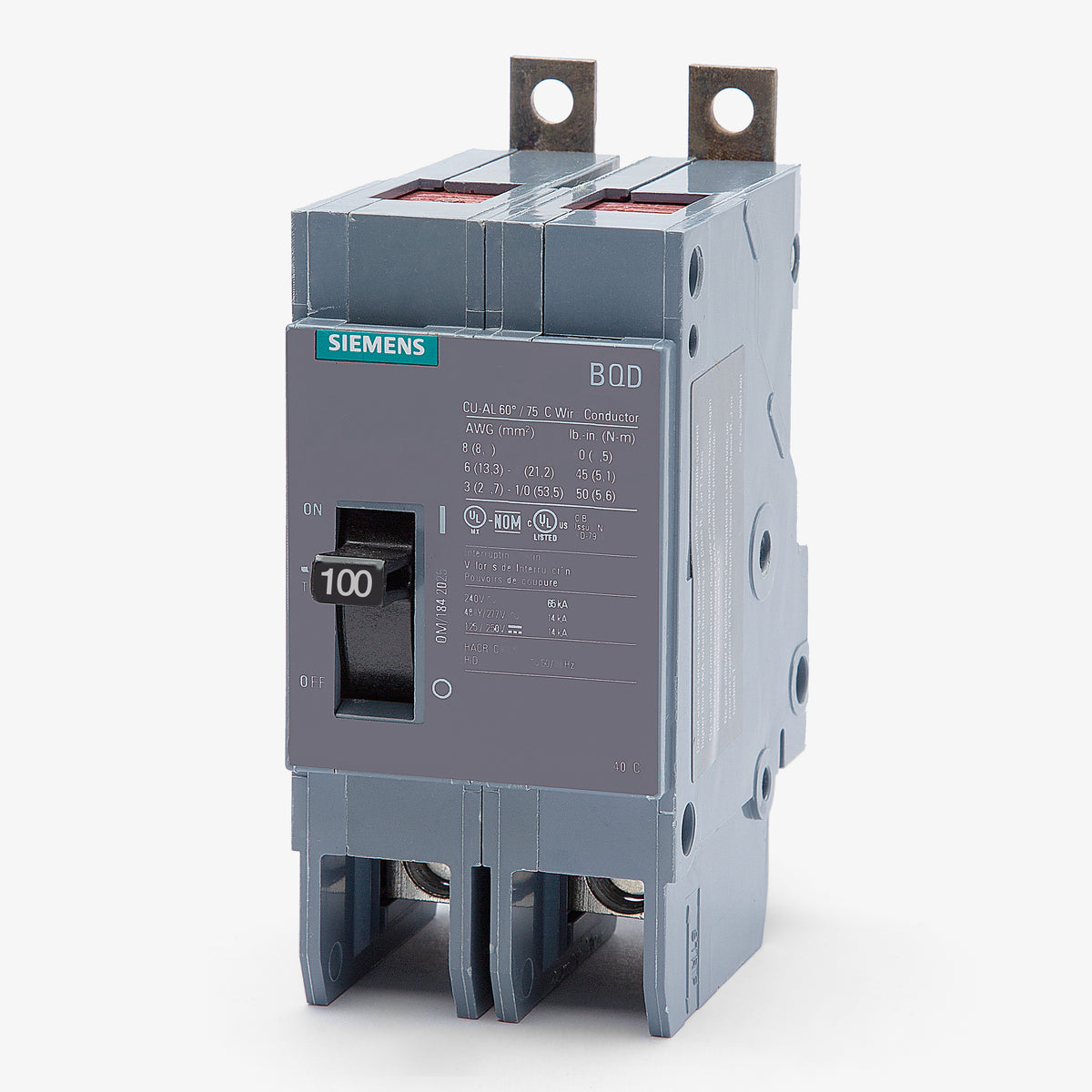

Siemens BQD2100 Molded Case Circuit Breaker
- 100A
- 2 Pole
- Bolt-On
Siemens
BQD2100
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQD2100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BQD2100 - 100A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Quantity
Siemens BQD2100 - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQD2100 |
| Series | BQD |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-1 AWG (Cu), 6-1/0 AWG (Al) |
| Max Wire | 1 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Quantity
Siemens BQD2100 - 100A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQD2100-R |
| Series | BQD |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-1 AWG (Cu), 6-1/0 AWG (Al) |
| Max Wire | 1 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
80A 2 Pole Molded Case Circuit Breaker
70A 2 Pole Molded Case Circuit Breaker
60A 2 Pole Molded Case Circuit Breaker
Description

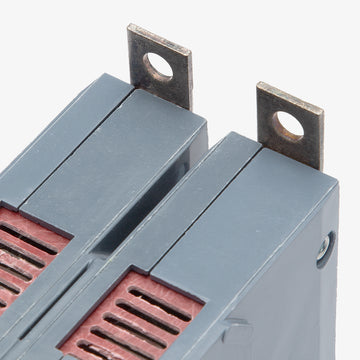

Engineered for industrial environments, the Siemens BQD2100 is a 100-amp, two-pole MCCB delivering dependable thermal-magnetic overcurrent protection. It features a quick-make, quick-break mechanism to ensure reliable operation. Designed with a low-tab bolt-on connection, this breaker integrates seamlessly into Siemens P1 through P5 series panelboards. With an interrupting capacity of 65kA at 240V and 14kA at 480Y/277V, it is HACR rated and comes equipped with standard load-side lugs.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BQD2100-R |
| Series | BQD |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-1 AWG (Cu), 6-1/0 AWG (Al) |
| Max Wire | 1 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
8 answersWhich panelboards accept the Siemens BQD2100 circuit breaker?
The BQD2100 is designed for bolt-on installation in Siemens P1, P2, P3, P4, and P5 panelboards.
Is the Siemens BQD2100 suitable for reverse feed applications?
Yes, Siemens BQD series molded case circuit breakers are suitable for reverse feed applications.
Is this 100A BQD breaker HACR rated?
Yes, the Siemens BQD2100 is HACR rated for use with heating, air conditioning, and refrigeration equipment.

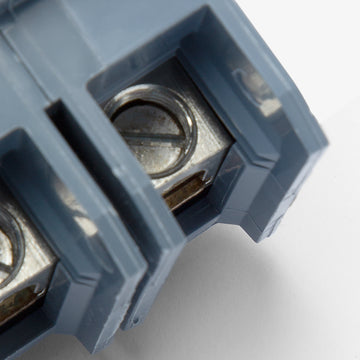

What wire sizes are accepted by the lugs on the BQD2100?
The factory installed lugs accept 8 to 1 AWG copper wire or 6 to 1/0 AWG aluminum wire.
What is the DIN rail mount equivalent of the BQD2100?
The Siemens CQD2100 is the equivalent 100A, 2-pole breaker designed for DIN rail mounting or surface mounting with cable-in and cable-out connections.
Does the BQD2100 mount to a standard DIN rail?
No, the BQD2100 is a bolt-on circuit breaker designed specifically for Siemens panelboard bus connections. For a DIN rail mountable version, you will need the CQD2100.
Does the BQD2100 provide ground fault or arc fault protection?
No, this is a standard thermal magnetic circuit breaker with fixed long-time and instantaneous trip functions. It does not include GFCI or AFCI protection.
Can the BQD2100 be used on a 480V grounded B phase delta system?
No, Siemens BQD breakers are not suitable for 3-phase delta 480V AC grounded B phase applications. They are rated for 480Y/277VAC solid grounded wye systems.
