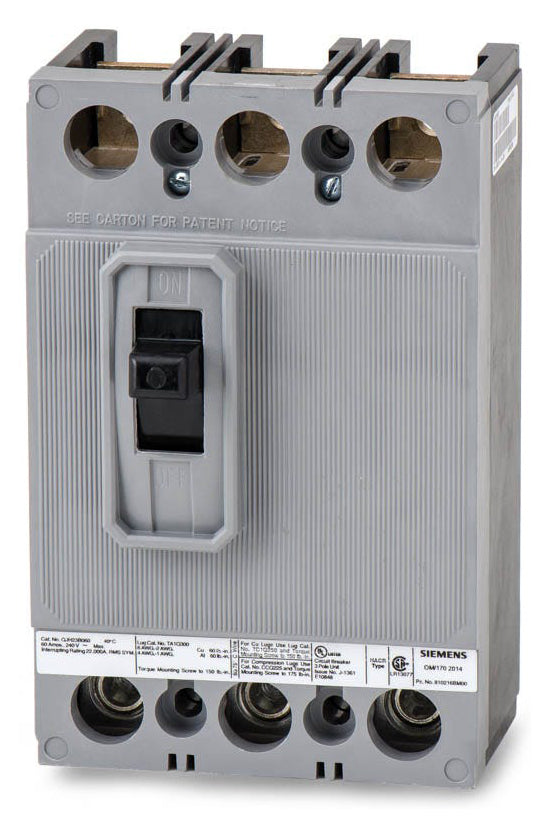

Siemens QJH23B100 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Bolt-On
Siemens
QJH23B100
Molded Case Circuit Breaker
Brand
Siemens
SKU
QJH23B100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QJH23B100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Sold out
Quantity
Siemens QJH23B100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJH23B100 |
| Series | QJH |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, Switchboards, Meter Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu) / 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included (TA1Q300) |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism |
Quantity
Siemens QJH23B100 - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Series | QJH |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, Switchboards, Meter Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu) / 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included (TA1Q300) |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism |
Similar Items
80A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial distribution, the Siemens QJH23B100 delivers reliable thermal-magnetic protection in a 3-pole, 100A molded case package. This bolt-on MCCB installs into Siemens P1 through P5 panelboards and switchboards. As a legacy QJ frame device, it is often replaced by the newer QRH23B100, which requires a QR strap kit for retrofitting into existing enclosures. It features a 22kAIC interrupting rating at 240VAC, non-interchangeable trip, and a trip-free mechanism.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QJH23B100 |
| Series | QJH |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, Switchboards, Meter Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu) / 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included (TA1Q300) |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism |
Product FAQs
6 answersWhat types of enclosures or panels is the Siemens QJH23B100 compatible with?
This bolt-on molded case circuit breaker is designed for installation in Siemens P1, P2, P3, P4, and P5 panelboards, as well as compatible switchboards and meter centers.
What wire sizes and materials are accepted by the lugs on this breaker?
The included lugs accept copper wire ranging from 6 AWG to 300 kcmil, and aluminum wire ranging from 4 AWG to 300 kcmil.
Is the QJH23B100 a current or legacy frame?
The QJH23B100 is a legacy QJ frame device. It is often replaced by the newer QRH23B100, though retrofitting the newer QR frame into existing enclosures may require a specific QR strap kit.
What does the 'H' in the QJH series designation indicate?
The 'H' indicates a higher interrupting rating. While the standard QJ23B100 breaker has a 10kAIC rating, the QJH23B100 features an upgraded 22kAIC rating at 240VAC.
Are the trip settings on the QJH23B100 adjustable?
No, this breaker features a fixed thermal and fixed magnetic trip unit, meaning the long-time and instantaneous trip functions cannot be adjusted in the field.
Does this breaker include ground fault or equipment protection?
No, the QJH23B100 is a standard thermal-magnetic breaker with long-time and instantaneous trip functions. It does not provide ground fault or equipment protection features.
