Siemens BQ2B02000S01 Molded Case Circuit Breaker
- 20A
- 2 Pole
- Bolt-On
Siemens
BQ2B02000S01
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQ2B02000S01
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

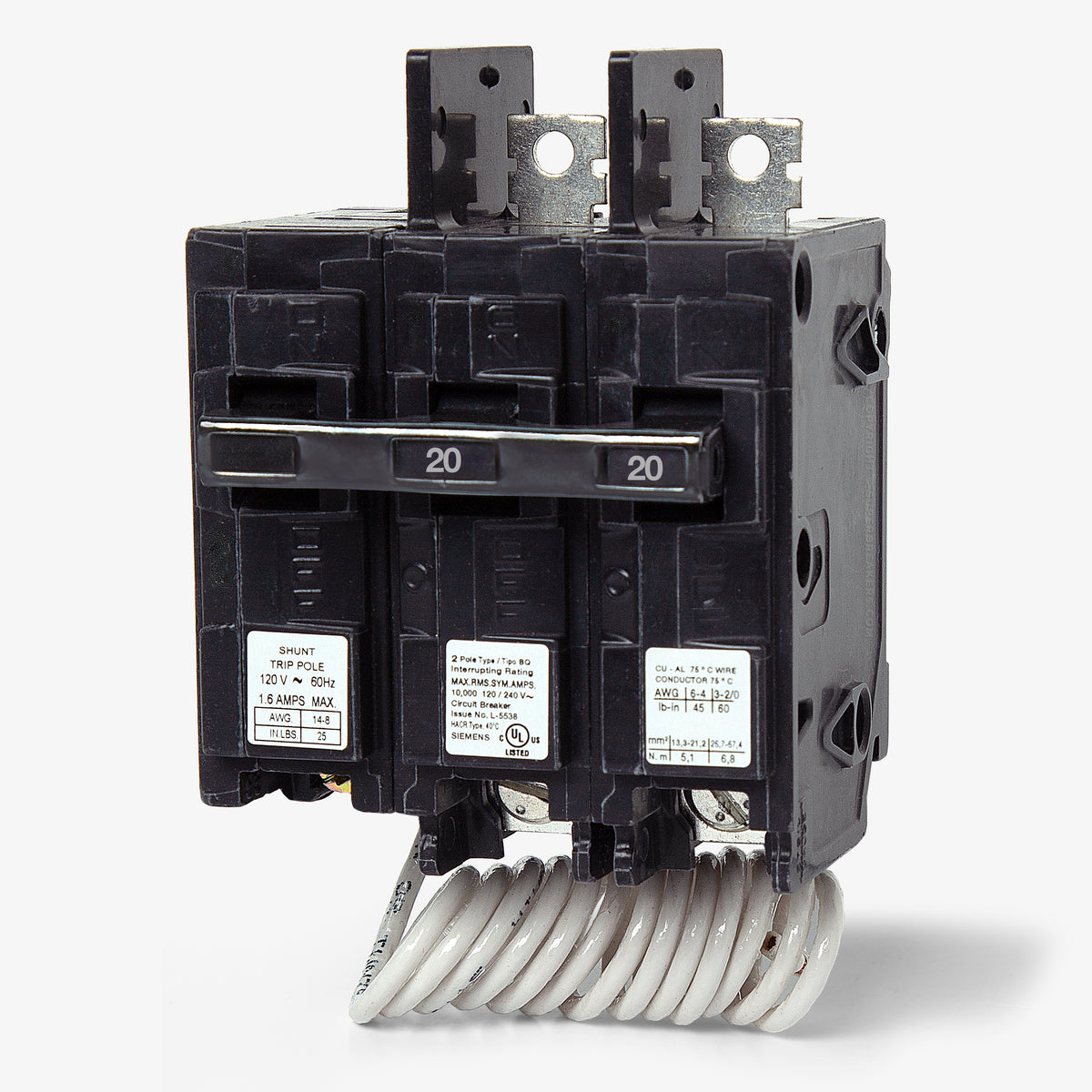

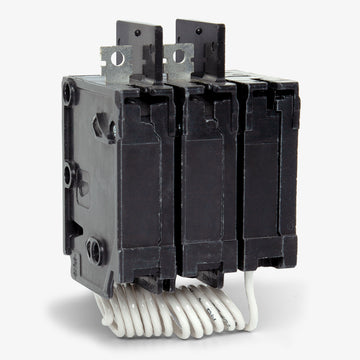

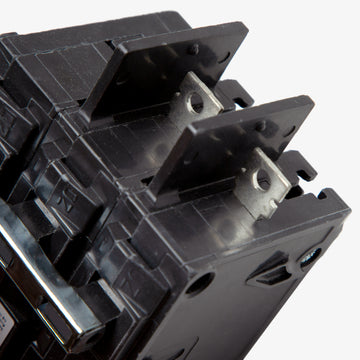

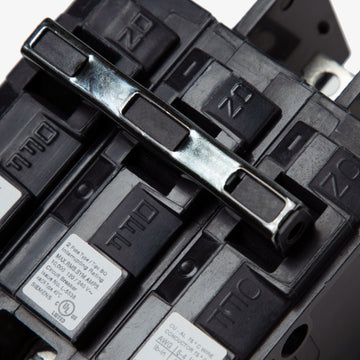

Siemens BQ2B02000S01 - 20A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
30A 2 Pole Molded Case Circuit Breaker
40A 2 Pole Molded Case Circuit Breaker
50A 2 Pole Molded Case Circuit Breaker
Description
Offering remote shutdown functionality, the Siemens BQ2B02000S01 is a 2-pole, 20-amp molded case circuit breaker featuring an integrated 120VAC shunt trip. It delivers thermal-magnetic protection with a 10kAIC rating at 120/240VAC for commercial and industrial applications. The device mounts into Siemens P1, P2, and P3 panelboards using a robust bolt-on connection. This HACR-rated breaker includes load side lugs and provides dependable long-time and instantaneous (LI) trip response.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BQ2B02000S01 |
| Series | BQ |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Load Side Lugs, Shunt Trip 120VAC |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
Product FAQs
7 answersWhat does the S01 suffix mean on the Siemens BQ2B02000S01?
The S01 suffix indicates that the breaker is equipped with a factory-installed 120V AC shunt trip. This allows the breaker to be tripped remotely for emergency shutdown or automated control systems.
Is the BQ2B02000S01 compatible with older ITE panelboards?
Yes, Siemens BQ frame breakers are backwards compatible with legacy ITE panelboards that accept bolt-on BQ breakers, in addition to modern Siemens P1, P2, and P3 panelboards.
How does the integrated shunt trip operate on this breaker?
The factory-installed shunt trip requires a separate 120V AC control power source. When voltage is applied to the shunt trip leads, the internal mechanism activates and mechanically opens the breaker contacts.
Can the trip settings on the BQ2B02000S01 be adjusted in the field?
No, this breaker features a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous trip functions are factory set and cannot be modified.
Are the load lugs included with the BQ2B02000S01?
Yes, the breaker comes standard with load-side lugs installed. They are rated for 14 to 6 AWG copper or 12 to 6 AWG aluminum conductors.
Does the BQ2B02000S01 provide ground fault or arc fault protection?
No, this is a standard thermal-magnetic breaker with a shunt trip. It provides overload and short-circuit protection but does not include GFCI or AFCI circuitry.
What is the UPC for cross-referencing the BQ2B02000S01?
The standard UPC for this 20A shunt trip breaker is 783643237728. It may also be listed under legacy ITE part numbers with the exact same catalog designation.
