Siemens BQ2B01500S01 Molded Case Circuit Breaker
- 15A
- 2 Pole
- Bolt-On
Siemens
BQ2B01500S01
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQ2B01500S01
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BQ2B01500S01 - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
40A 2 Pole Molded Case Circuit Breaker
50A 2 Pole Molded Case Circuit Breaker
60A 2 Pole Molded Case Circuit Breaker
Description
Providing advanced control for commercial systems, the Siemens BQ2B01500S01 is a 15-amp, two-pole molded case circuit breaker. It combines standard thermal-magnetic overcurrent protection with remote operation capabilities for specialized industrial applications. The breaker installs into compatible Siemens panelboards using a robust bolt-on mounting configuration.Specifications
| Brand | Siemens |
|---|---|
| Series | BQ |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs, Shunt Trip 120VAC |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
Product FAQs
3 answersWhat does the S01 suffix indicate on the BQ2B01500S01 breaker?

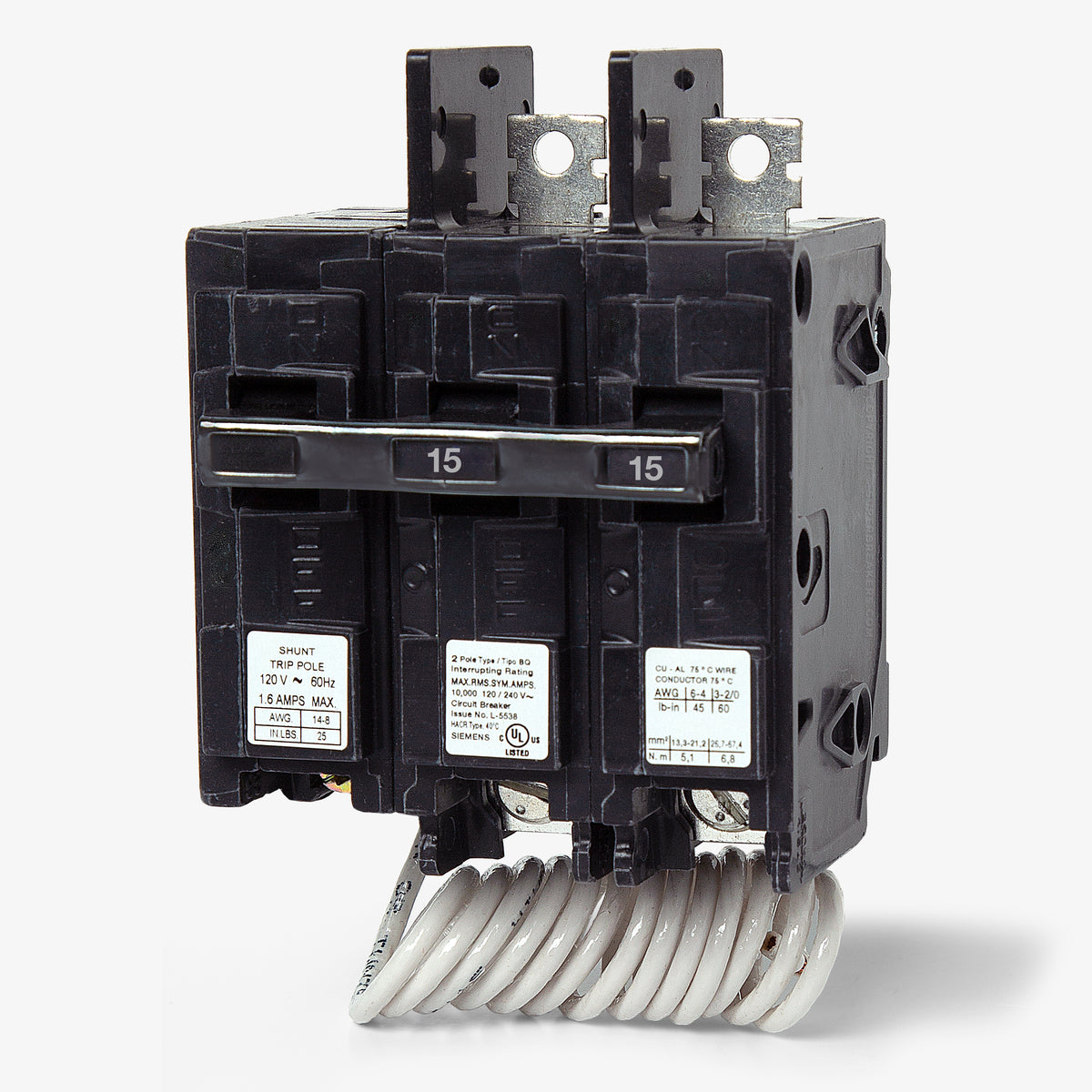

The S01 suffix indicates that this breaker includes a factory-installed 120VAC shunt trip, allowing for remote tripping of the circuit for emergency shutdown or control applications.
What type of panelboards is the Siemens BQ2B01500S01 compatible with?
This BQ frame circuit breaker is designed for use in Siemens panelboards that accept bolt-on branch breakers.
Does this breaker provide arc fault or ground fault protection?
No, this is a standard thermal-magnetic breaker equipped with a shunt trip. It does not provide arc fault (AFCI) or ground fault (GFCI) protection.
