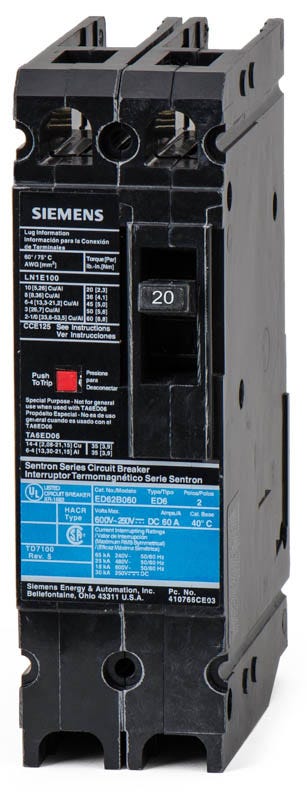

Siemens ED62B020L Molded Case Circuit Breaker
- 20A
- 2 Pole
- Unit Mount
Siemens
ED62B020L
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED62B020L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED62B020L - 20A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
25A 2 Pole Molded Case Circuit Breaker
15A 2 Pole Molded Case Circuit Breaker
30A 2 Pole Molded Case Circuit Breaker
Description
Designed for standalone applications, this 20-amp Sentron ED6 breaker comes complete with LN1E100 line and load lugs out of the box. The unit mount configuration is ideal for individual enclosures, control panels, and custom switchboards requiring reliable thermal-magnetic protection. Rated for 65kAIC at 240VAC, it handles demanding commercial and industrial loads. The fixed thermal and magnetic trip units ensure consistent performance across a wide range of electrical distribution setups.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED62B020L |
| Series | ED6 |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Individual Enclosures, Switchboards, Control Panels |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs Included (LN1E100) |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
5 answersWhat does the L suffix in the ED62B020L catalog number indicate?
The L suffix designates that the circuit breaker is supplied with factory-installed lugs on both the line and load sides.
What does a unit mount or feed-thru configuration mean for installation?
A unit mount configuration means the breaker bolts directly to a backpan or mounting surface rather than plugging or bolting onto a panelboard busbar. This makes it suitable for individual enclosures, custom switchboards, and control panels.
Is the Siemens ED62B020L suitable for direct current (DC) applications?
Yes, this thermal-magnetic breaker is rated for use in DC electrical systems up to 250VDC, providing an interrupting capacity of 30kAIC at that voltage.
Can the thermal or magnetic trip points be adjusted in the field?
No, the ED62B020L is equipped with a non-interchangeable, fixed thermal and fixed magnetic trip unit for its long-time and instantaneous (LI) protection functions.
What wire gauges are compatible with the factory-installed lugs?
The standard included lugs accept 14 to 10 AWG copper (Cu) conductors or 12 to 10 AWG aluminum (Al) conductors.
