Siemens ED23B015 - 15A 3 Pole Molded Case Circuit Breaker

Brand Siemens
SKU ED23B015
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99

Siemens ED23B015 - 15A 3 Pole Molded Case Circuit Breaker

Brand Siemens
SKU ED23B015
Select Item Condition
Earn 372 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

Siemens ED23B015 - 15A 3 Pole Molded Case Circuit Breaker

New

$372.40 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description

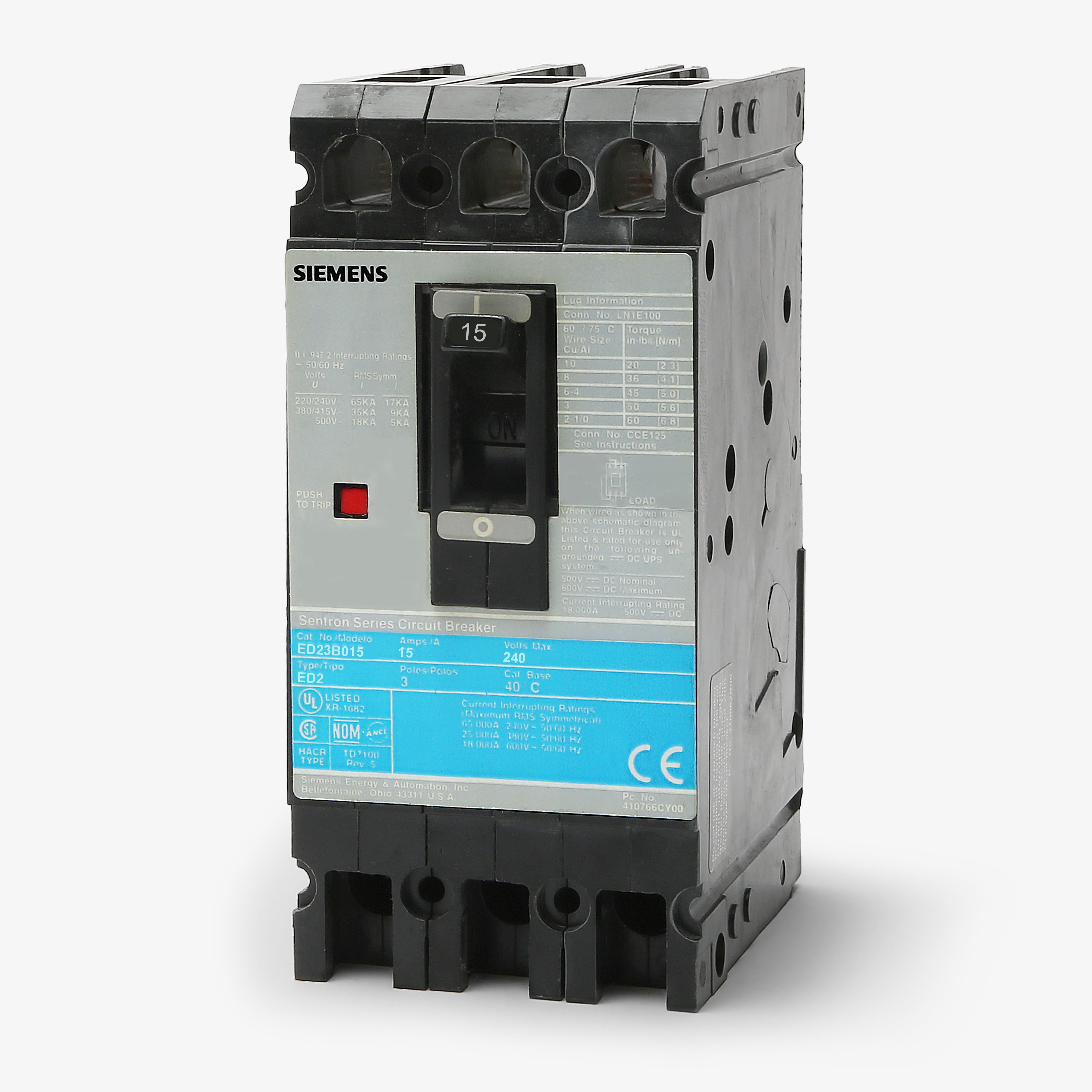

Operating within three-phase commercial systems, the ED23B015 provides robust 15-amp overcurrent protection in a compact ED2 frame. This three-pole molded case breaker delivers a 10kAIC interrupting rating at 240VAC, utilizing fixed thermal and magnetic elements for reliable LI defense. It fastens securely into Siemens P1, P2, P3, and Sentron panelboards via a sturdy bolt-on connection. HACR rated and equipped with load-side lugs, it accommodates 14-10 AWG copper wiring for HVAC loads.

Specifications

Brand Siemens
Series ED2
Part Number ED23B015
Amperage 15A
Voltage 240VAC, 250VDC
Poles 3
Phase 3
AIC Rating 10kA @ 240VAC, 5kA @ 250VDC
Mounting Style Bolt-On
Terminal Type Lugs
For Use With Siemens P1, P2, P3 Panelboards, Sentron Panelboards, Switchboards
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Wire Gauge 14-10 AWG (Cu), 12-10 AWG (Al)
Max Wire 10 AWG
Min Wire 14 AWG (Cu), 12 AWG (Al)
Available Options Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release

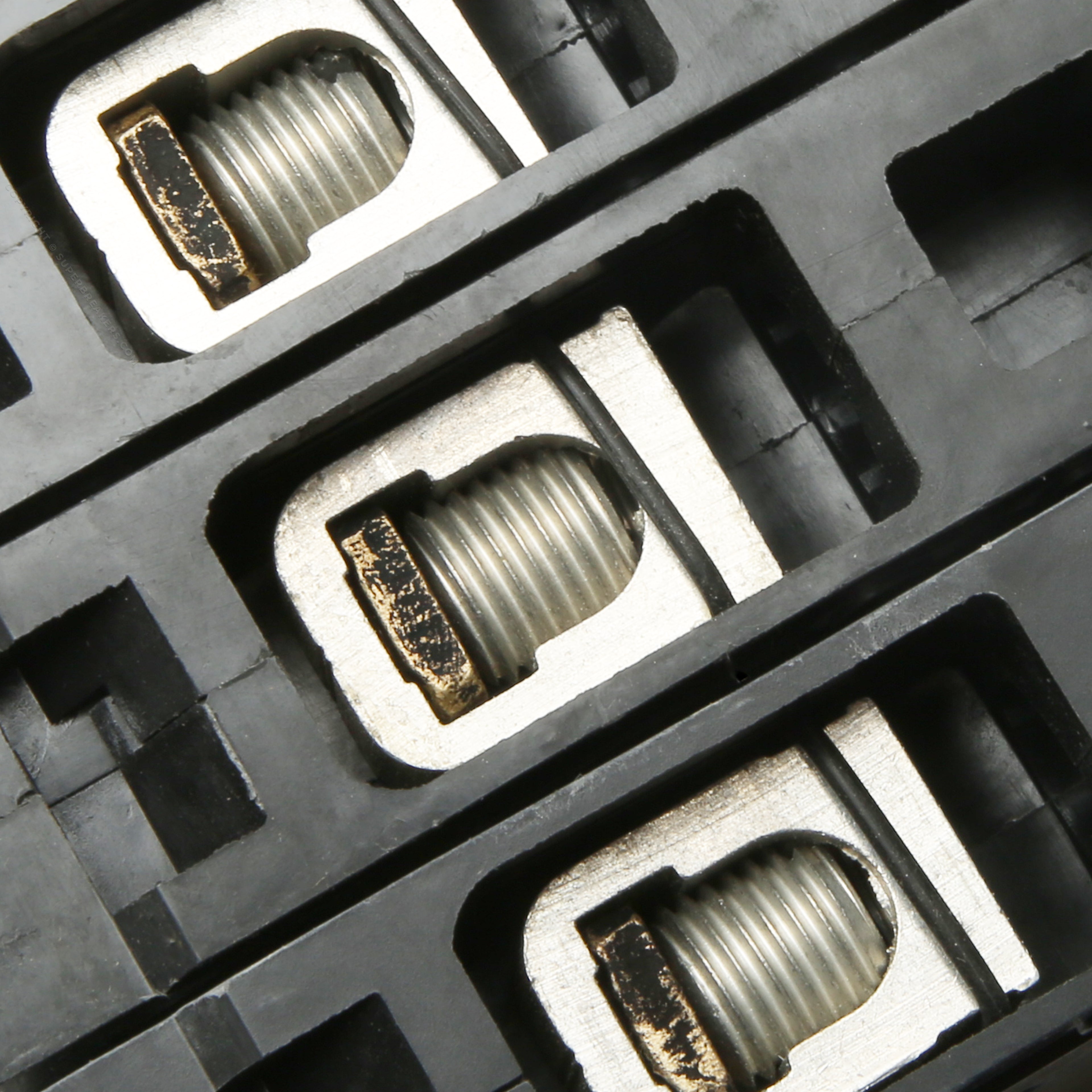

Accessories Load Side Lugs
Standards CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489
Approval CSA, IEC, UL
Temp Rating 40C
Construction Features HACR Rated, Reverse Feed, Non-Interchangeable Trip
