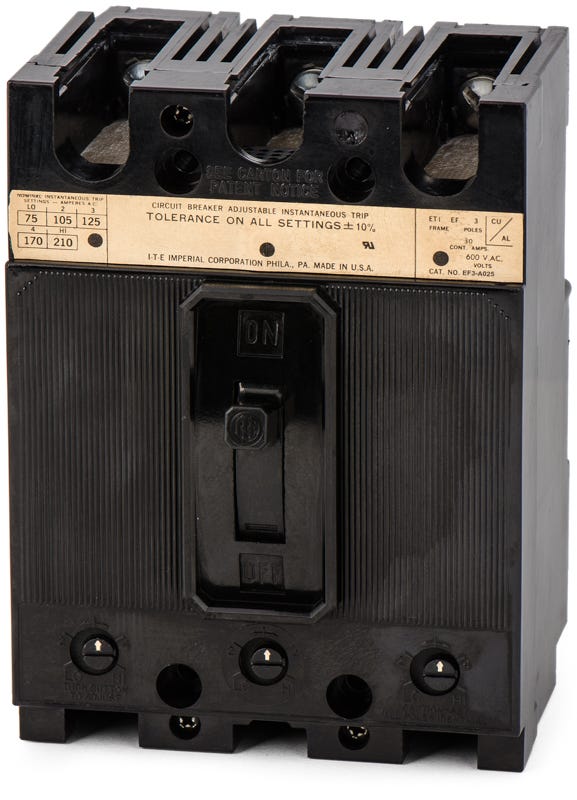

Siemens EF3A025 - 25A 3 Pole Motor Circuit Protector

Brand Siemens
SKU EF3A025
5.0
Rated 5.0 out of 5 stars
2 Reviews
Siemens EF3A025 3 Pole Circuit Breaker
Free Shipping Over $99

Siemens EF3A025 - 25A 3 Pole Motor Circuit Protector

Brand Siemens
SKU EF3A025
5.0
Rated 5.0 out of 5 stars
2 Reviews
Select Item Condition
Earn 501 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more
Siemens EF3A025 3 Pole Circuit Breaker

Siemens EF3A025 - 25A 3 Pole Motor Circuit Protector

Re-Certified

$501.58 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Designed specifically for motor branch circuits, the Siemens EF3A025 is a 3-pole magnetic-only protector. It provides essential instantaneous trip functions to prevent damage during short-circuit events. The 25A bolt-on device is compatible with legacy I-T-E and Siemens FC-1 panelboards as well as FC-20 switchboards. Users looking for a modern equivalent can use the ED63A025 replacement. With an adjustable magnetic range of 75-210A, it allows precise alignment with motor overload relays.

Specifications

Brand Siemens
Series EF
Part Number EF3A025-R
Amperage 25A
Amperage Range 75-210A
Voltage 600VAC, 250VDC
Poles 3
Phase 3
AIC Rating 18kA @ 240VAC, 14kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC
Mounting Style Bolt-On
Terminal Type Lugs
For Use With Siemens / I-T-E Panelboards, FC-1 Panelboards, FC-20 Switchboards
Trip Technology Magnetic Only
Trip Function Code I
Trip Function Instantaneous Only
Trip Adjustability Adjustable Magnetic
Wire Gauge 14-10 AWG (Cu), 12-10 AWG (Al)
Max Wire 10 AWG
Min Wire 14 AWG
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch
Accessories Lugs
Standards NEMA AB 1, UL 489
Approval CSA, UL
Temp Rating 40C
Construction Features Non-Interchangeable Trip, Motor Circuit Protector
