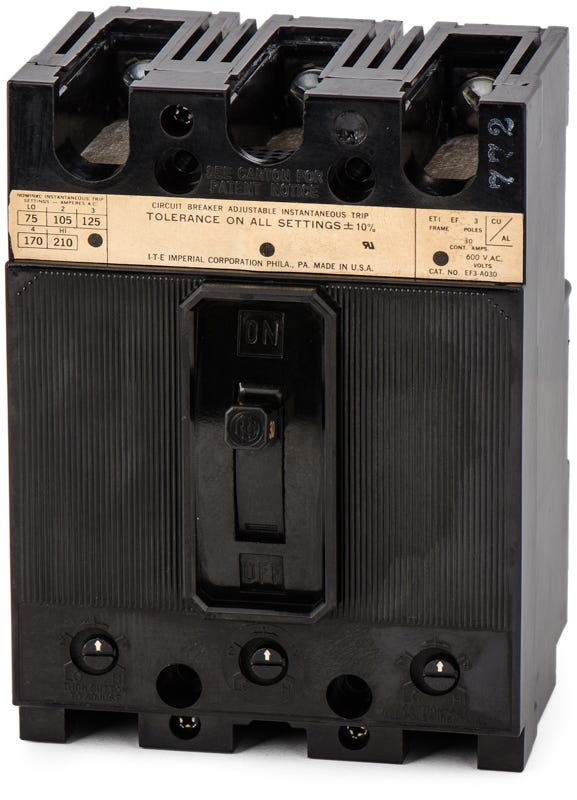

Siemens EF3A030 Motor Circuit Protector
- 30A
- 3 Pole
- Bolt-On
Siemens
EF3A030
Motor Circuit Protector
Brand
Siemens
SKU
EF3A030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens EF3A030 - 30A 3 Pole Motor Circuit Protector
Re-Certified
Quantity
Similar Items
5A 3 Pole Motor Circuit Protector
25A 3 Pole Motor Circuit Protector
100A 3 Pole Motor Circuit Protector
Description
Built for industrial applications, the Siemens EF3A030 provides dedicated instantaneous short-circuit defense. This 30A protector uses an adjustable magnetic trip (80-270A) to coordinate with overload relays. Featuring a bolt-on configuration, it mounts into legacy Siemens and I-T-E panelboards. For modern upgrades, this E-Frame device crosses over to the ED63A030. Rated for 600VAC (14kAIC at 480V), the magnetic-only architecture prevents nuisance tripping during motor startups.Specifications
| Brand | Siemens |
|---|---|
| Part Number | EF3A030-R |
| Series | EF |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Amperage Range | 80-270A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens / I-T-E Panelboards, FC-1 Panelboards, FC-20 Switchboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector, Non-Interchangeable Trip |
