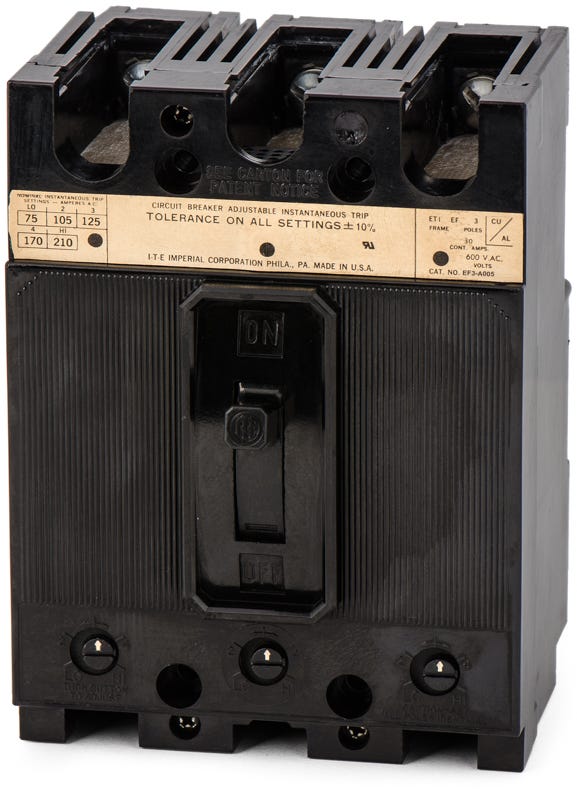

Siemens EF3A005 Motor Circuit Protector
- 5A
- 3 Pole
- Bolt-On
Siemens
EF3A005
Motor Circuit Protector
Brand
Siemens
SKU
EF3A005
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens EF3A005 - 5A 3 Pole Motor Circuit Protector
Re-Certified
Quantity
Similar Items
25A 3 Pole Motor Circuit Protector
30A 3 Pole Motor Circuit Protector
100A 3 Pole Motor Circuit Protector
Description
Built for industrial motor control applications, the EF3A005 is a 3-pole, 5A motor circuit protector featuring an adjustable magnetic-only trip mechanism. It operates at up to 600VAC and 250VDC, delivering 14kAIC at 480V for robust short-circuit protection. Designed to mount into Siemens motor control centers and legacy I-T-E FC-1 panelboards, it requires coordination with a separate overload relay. This E-frame unit replaces older installations and is superseded by the ED63A005.Specifications
| Brand | Siemens |
|---|---|
| Part Number | EF3A005-R |
| Series | EF |
| Amperage | 5A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Amperage Range | 15-50A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Motor Control Centers, Siemens Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Lugs |
| Standards | NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector, Non-Interchangeable Trip |
